2MP 4.5μm Pixels, 300-1000nm High Speed Camera
| Features |
|---|
| Equipped with GSPRINT4502 CMOS image sensor |
| Resolution: 2048×1216 |
| Maximum frame rate up to 5394 fps |
| Global shutter to suppress motion distortion |
| Dual interfaces: USB 3.0 and CoaXPress |
| Supports 8/10/12-bit output |
| Large 1024 MB (8 Gb) image buffer |
| Hardware ROI and external trigger |
| CE/FCC certified, multi-platform SDK available |
The SDK supports development languages such as C/C++, C #/VB.net, Python, Java, etc,
Third-party support including LabVIEW, MATLAB, Micro-Manager, DirectShow, and TWAIN.
| Model | VIS0402CUCXP, VIS0402MUCXP |
| Sensor Type | GSPRINT4502 |
| Spectral Range | 300nm–1000nm |
| Pixel Size | 4.5μm × 4.5μm |
| Sensor Format | 0.67″ |
| Frame Rate & Resolution | 1564 fps @ 2048×1216; 5394 fps @ 1024×608 |
| Memory | 1024MB (8Gb) |
| Conversion Gain | 0.51 e⁻/ADU @ 12-bit |
| Dynamic Range | 68.2dB (12-bit) |
| Read Noise | 3.8 e⁻ (12-bit) |
| Full Well Capacity | 30k e⁻ (12-bit), 120k e⁻ (Binned) |
| SNR | 44.8dB (12-bit) |
| Sensitivity | -84.6dB |
| Dark Current | 21 e⁻/s/pixel@60℃ |

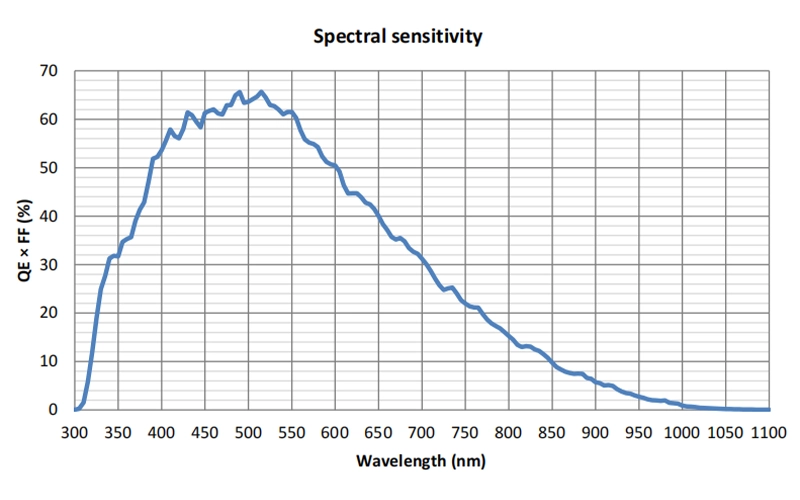

| Peak Quantum Efficiency | 65.7%@550nm |
| Exposure Time Range | 1μs ~ 10s |
| Gain Range | 1.0x, 2.0x, 4.0x |
| Shutter Mode | Global Shutter |
| Binning Modes | Software: 2×2, 3×3, 4×4; Hardware FPGA: 2×2 |
| Data Interface | USB 3.0 / CXP |
| Digital I/O | 1 optical-coupling isolated input, 1 optical-coupling isolated output, 2 non-isolated input and output |
| Data Bit Depth | 8-bit / 10-bit / 12-bit |
| Cooling Temperature | -20℃ (ambient temperature 20℃) |
| Optical Interface | C-mount |
| Power Supply | 19V 4A power adapter |
| Power Consumption | < 25W |
| Dimensions | 110mm × 110mm × 126.4mm |
| Weight | TBD |
| Software | AttosView; SDK development kit; CLView software for Delsa frame grabbers |
| Operating System | Windows / Linux |
| Temperature | Operating: -30℃ ~ 60℃; Storage: -40℃ ~ 80℃ |
| Humidity | 20%–80% RH, non-condensing |
| Certifications | CE, FCC |
| Parameter | Specification |
| Dimensions | 110mm×110mm×126.4mm |
| Lens Interface | M42×0.75 |
| No. | Specification |
| 1 | 7-Pin Trigger Interface |
| 2 | Indicators for Power, System, Cooling and Fan |
| 3 | DC 19V Power Port |
| 4 | USB / CXP Interface Toggle Switch |
| 5 | 4 × CXP Interfaces |
| 6 | USB 3.0 Port |
| Table1: USB port, GigE port, CL port refrigerated camera pin signal definitions | |||||
 |
Color | Pin | Signal | Description of the signal | |
| White | 1 | GDN | Direct-coupled signal ground | ||
| Red | 2 | 12V | 12VDC power input | ||
| Blue | 3 | OPTO_GND | Opto-isolated signal ground | ||
| Yellow | 4 | DIR_GPIO0 | Direct-coupled General Purpose I/O (Software configurable input/output) (line2) | ||
| Black | 5 | DIR_GPIO1 | Direct-coupled General Purpose I/O (Software configurable input/output) (line3) | ||
| Green | 6 | OPTO_IN | Opto-isolated input signal (line0) | ||
| Pink | 7 | OPTO_OUT | Opto-isolated output signal (line1) | ||
Logic 0 input level: 0~2.2VDC (OPTO_IN pin)
Logic 1 input level: 3.3~24VDC (OPTO_IN pin)
Maximum input current:30mA
When the input level is between 2.2V and 3.2V, the circuit operation state is uncertain, please do not let SWIR camera work within this voltage range.
Input rise delay (TDR): 6us
Input fall delay (TDF): 6us
The opto-isolated output maximum current is 30mA.
The electrical characteristics of the opto-isolated output (external voltage 5V, external resistor 1K) are shown in Table 2.
| Table 2： Opto-isolated output signal’s electrical characteristics | ||
| Parameter name | Parameter notation | Parameter value |
| Output logic low | VL | 742mV |
| Output logic high | VH | 4.134V |
| Output rise time | TR | 4us |
| Output fall time | TF | 1.8us |
| Output rise delay | TDR | 12us |
| Output fall delay | TDF | 2us |
The output of the corresponding output current and VL when using different voltages and resistors in externalcircuit are shown in Table 3.
| Table 3：Opto-isolated output logic’s low levels parameters | |||
| External voltage | External resistor | VL | Output current |
| 3.3V | 1KΩ | 510mV | 2.82mA |
| 5V | 1KΩ | 742mV | 4.31mA |
| 12V | 2.4KΩ | 795mV | 4.68mA |
| 24V | 4.7KΩ | 850mV | 4.97mA |
1. Line2/line3 is set as input pin
Logic 0 input level: 0~0.6VDC (DIR_GPIO0/DIR_GPIO1 pins)
Logic 1 input level: 2.0~24VDC (DIR_GPIO0/DIR_GPIO1 pins)
Maximum input current: 25mA
When the input level is between 0.6V and 2.0V, the circuit action state is uncertain, please avoid the input voltage range working in this range.
To prevent damage to the GPIO pins, please connect the pin GND first, and then input voltage to the Line2 pin.
Input rise delay (TDR): 0.02us
Input fall delay (TDF): 0.02us
2. Line2/line3 are set as output pins
The maximum current allowed through this pin is 25mA.
The external pull-up voltage is 5V, the pull-up resistor is 1KΩ, and the GPIO is configured to output the logic level and electrical characteristics as shown in Figure 4.
When the ambient temperature is 25 degrees Celsius, the relationship between the external voltage, resistance and low-level voltage output is shown in Table 4.
| Table 4：Non-isolated output Logic’s low level parameters | ||
| External voltage | External resistor | VL(GPIO) |
| 3.3V | 1KΩ | 0.11V |
| 5V | 1KΩ | 0.167V |
| 12V | 2.4KΩ | 0.184V |
| 24V | 4.7KΩ | 0.385V |
| Table 5: Non-isolated output electrical characteristics | ||
| Parameter name | Parameter notation | Parameter value |
| Output rise time | TR | 0.08us |
| output fall time | TF | 0.02us |
| Output rise delay | TDR | 0.1us |
| Output fall delay | TDF | 0.04u |
AttosView support all Attostek UV-VIS and SWIR cameras, it is a professional software that integrates camera control, image acquisition and processing, image browsing and analysis functions.
AttosView has the following characteristics:
- x86: XP SP3 and above; CPU support SSE2 and above
- x64: Win7 and above
ascamsdk support a variety of APIs, including: Native C/C++,.NET/C#/VB.NET, Python, Java, DirectShow, Twain, LabView, Matlab, etc. Compared with other APIs, Native C/C++ API as a low-level API is characterized by using pure C/C++ development without relying on other runtime libraries. The interface is simple and the control is flexible.
- x86: XP SP3 and above; the CPU needs to support at least the SSE2 instruction set.
- x64: Win7 and above.
- arm: Win10 and above.
- arm64: Win10 and above.
AttosTek provides extensive third-party software support for its UV-Vis cameras and SWIR cameras, facilitating rapid integration and use in various development environments. This includes SDK and demo programs for LabVIEW and MATLAB, as well as DirectShow drivers, Micromanager, and TWAIN SDK drivers. These features enable seamless compatibility with mainstream development environments and third-party software, greatly simplifying the workflow for system integration and secondary development.
Support all Attostek UV-VIS and SWIR cameras.
Click the button below to download the AttosView software.
|
AttosView Recommended System Requirements |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 /11(32 & 64 bit), Mac OSX, Linux |
|
Processor (CPU) |
≥3.0 GHz Intel Core i5 or Higher |
|
Memory (RAM) |
≥8 GB |
|
Hard Drive |
NVMe Solid State Drive (SSD) |
|
Graphics Card |
Dedicated Adapter with ≥256 MB RAM |
|
Motherboard |
USB 3.0 (-USB) Cameras: Integrated Intel USB 3.0 Controller or One Unused One Unused PCle3.0*16 Slot |
|
Connectivity |
Internet Connectivity for Driver Installation |
Q1: How does this series of cameras adapt to high-speed industrial production line AOI applications?
Full-resolution operation at 1564 fps matches the tempo of high-speed conveyor belts; hardware ROI cropping further accelerates frame rates by discarding irrelevant areas. The color model distinguishes color-related defects, while the monochrome model identifies fine scratches and metal reflections. The optocoupler input interfaces with an encoder for precise synchronization with workpiece arrival, enabling accurate triggered capture; the 1 GB buffer prevents frame loss during burst data streams on the production line.
Q2: How do I choose between the color CUCXP and monochrome MUCXP models?
Choose the VIS0402CUCXP color model if your application requires color discrimination—such as PCB component color difference inspection, RGB pixel lighting defects in displays, multi-color material sorting, or color microscopic sample observation. Note that Bayer interpolation will slightly reduce signal-to-noise ratio.
Choose the VIS0402MUCXP monochrome model if you have no color requirements and prioritize image signal-to-noise ratio—for applications such as high-speed wafer defect inspection, PIV particle image velocimetry, high-speed fluorescence imaging, pulsed laser characterization, and non-destructive testing of metal surfaces. The absence of a color filter array results in no light loss, providing stronger low-light imaging performance.
Q3: What are the compatible systems and built-in features of the AttosView and CLView host software?
AttosView (general-purpose for USB) supports only Windows 7/10/11 64-bit systems.
CLView (dedicated for CoaXPress) runs on Windows platforms with Delsa frame grabbers.Both share a full set of features: global shutter control, 1 µs to 10 s exposure time, 1×/2×/4× gain switching, hardware/software binning, ROI cropping, multiple dark-field correction profiles, real-time histogram, line profile grayscale curves, frame timestamps, raw batch saving, and online firmware upgrade.
2MP CMOS high-speed camera, available in monochrome or color.
VIS0402CUCXP
2MP Color CMOS Camera with 4.5µm Pixel, Global Shutter, USB 3.0 & CXP Interface
VIS0402MUCXP
2MP Monochrome CMOS Camera with 4.5µm Pixel, Global Shutter, USB 3.0 & CXP Interface
Optional accessories – lenses
AttosView offers an optional YLGD series continuous zoom optical system for visible light cameras, designed specifically for high-precision imaging scenarios. The YLGD series continuous zoom optical system series provides multiple focal length options and is suitable for various professional applications such as security surveillance, industrial vision inspection, and scientific observation, ensuring excellent image clarity, operational flexibility, and environmental adaptability. For inquiries, please contact sales@attostek.com
