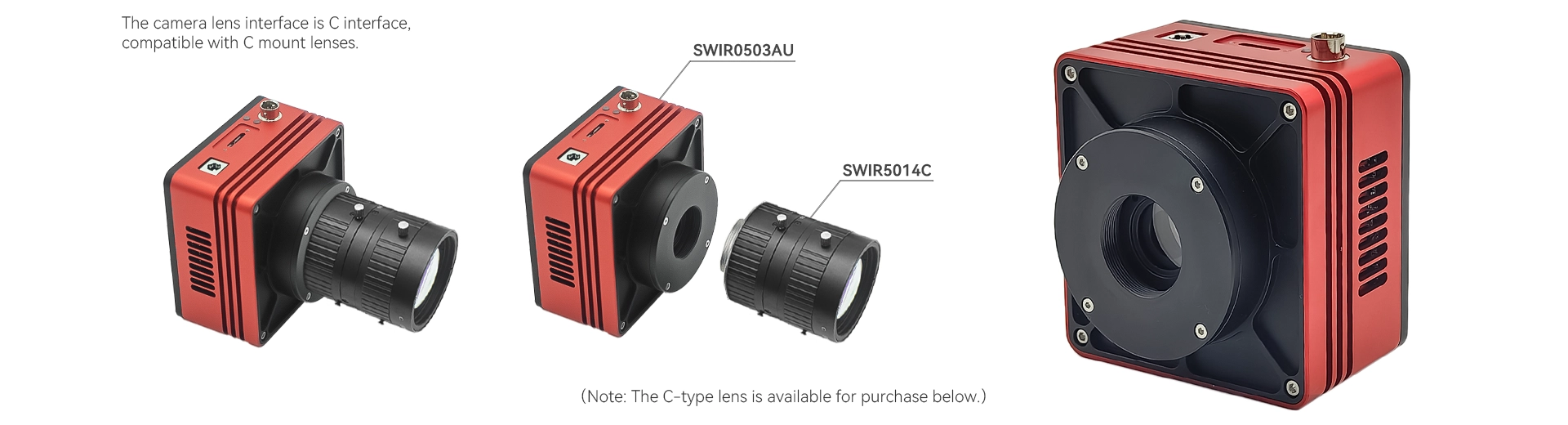

SWIR0503A series cameras

The SWIR0503A series cameras are equipped with Sony IMX991 SenSWIR InGaAs sensors, with a pixel size of 5 µm and a resolution of 330,000, featuring high sensitivity and low noise performance. This series supports multiple interfaces including USB 3.0, GigE, CoaXPress, and CameraLink, making it suitable for applications such as high-speed inspection, laser beam monitoring, and scientific experimental imaging.

Features

Spectral response：400–1700 nm

640×512 resolution，5μm pixel

Global shutter, high-speed acquisition

12-bit (8/10/12-bit optional for specific models)

Hardware ROI & external triggering

512MB cache

CE/FCC Cerifcation，Multi-platform SDK

Software

AttosView supports Windows® 7 (64-bit),10 and 11 operating systems.

The SDK supports development languages such as C/C++, C #/VB.net, Python, Java, etc,

Third-party support including LabVIEW, MATLAB, Micro-Manager, DirectShow, and TWAIN.

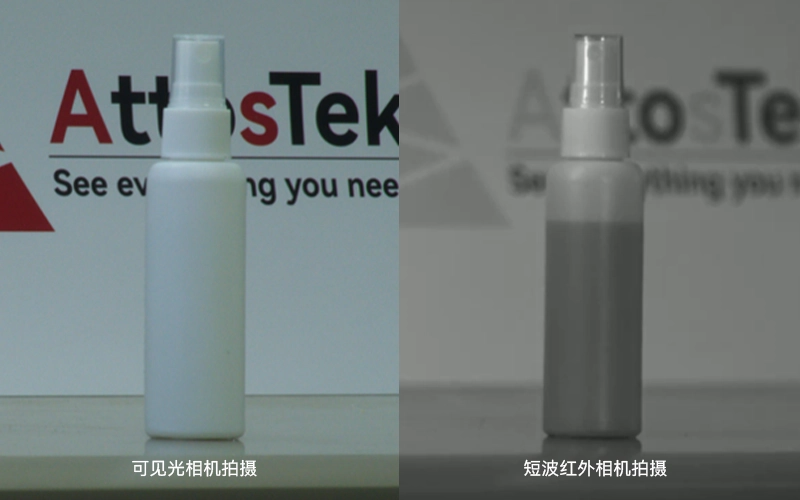

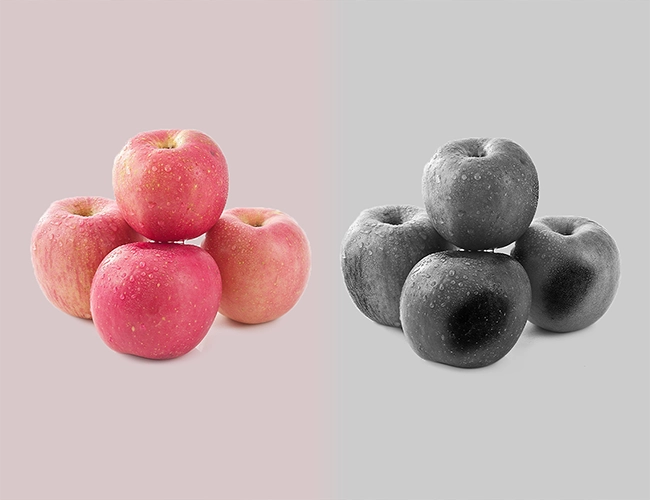

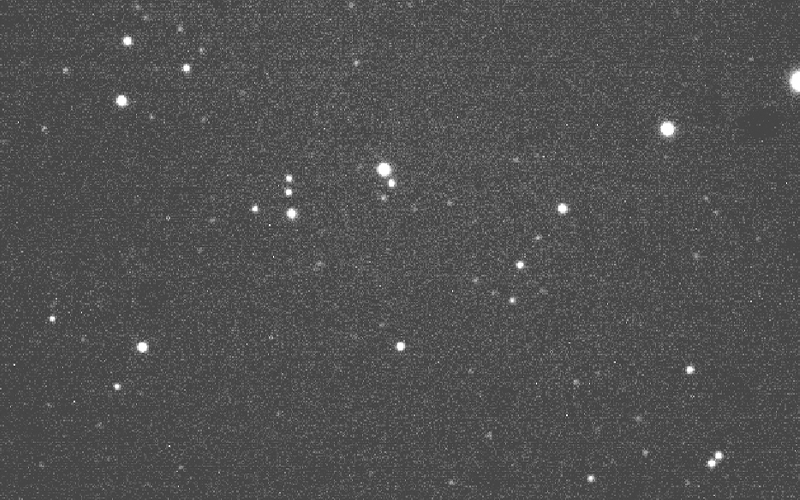

Images acquired by the SWIR camera

SWIR cameras are widely used in industrial inspection, machine vision, material sorting, food testing, scientific research, medical diagnosis, security monitoring, process control, and transportation. They perform especially well in material analysis, moisture detection, seeing through fog or smoke, and night monitoring.

Common Specifications
Sensor Model	Sony IMX991 InGaAs
Spectral Range	400-1700nm
Pixel Size	5µm×5µm
Sensor Size	1/4″
Image Buffer	512MB
Conversion Gain	42.29e⁻/ADU
Dynamic Range	59.7dB
Readout Noise	176.7e⁻
Full Well Capacity	173.23ke⁻
Maximum SRN	52.39dB
Sensitivity	121mV/(lux·s)
Dark current	383e⁻/s/pixel（0℃），510e⁻/s/pixel（10℃），638e⁻/s/pixel（20℃）
Gain range	1-15x
Exposure Time Range	15µs-60s
Shutter Mode	Global Shutter
Digital I/O	1 channel of optically isolated input 1 channel of optically isolated output 2 channels of non-isolated input/output ports
Date Format	12Bit/8Bit
Cooling temperature	-5°C（ambient temperature 20℃）
Optical Interface	Cinterface
Optical Filter	400-1800nm（Stanfard LPF390H）；1030-1800nm（Optional LPF1000H）
CRA	2.35°
Power consumption	<25W
Weight	<390g
Operating system	Win32/WinRT/Linux/macOS/Android
Temperature	Working Temperature:-20~60℃， Storage Temperature: -40℃~85℃
Humidity	Working Humidity: 20%-80%,no condensation；Storage Humidity: 20%~80%，no condensation
Certification	CE，FCC

Quantum Efficiency Curve

* Blue curve: 400-1800nm standard filter
*Red curve: 1030-1800nm optional filter

SWIR0503AU Cooling Camera Dimensions & Port

Parameter	Specification
Size	808045.5mm
Mount	C mount

Item	Specification
1	USB3.0 port
2	DC 12V power
3	External IO connection port

SWIR0503AG Cooling Camera Dimensions & Port

Parameter	Specification
Size	808045.5mm
Mount	C mount

Item	Specification
1	GigE port
2	DC 12V power
3	External IO connection port

SWIR0503ACL Cooling Camera Dimensions & Port

Parameter	Specification
Size	757581.9mm
Mount	C mount

Item	Specification
1	External IO connection port
2	DC 12V power
3	CameraLink1
4	CameraLink2

SWIR0503A Series Camera Pin Signal

Table1: USB port, GigE port, CL port refrigerated camera pin signal definitions
	Color	Pin	Signal	Description of the signal
	White	1	GDN	Direct-coupled signal ground
	Red	2	12V	12VDC power input
	Blue	3	OPTO_GND	Opto-isolated signal ground
	Yellow	4	DIR_GPIO0	Direct-coupled General Purpose I/O (Software configurable input/output) (line2)
	Black	5	DIR_GPIO1	Direct-coupled General Purpose I/O (Software configurable input/output) (line3)
	Green	6	OPTO_IN	Opto-isolated input signal (line0)
	Pink	7	OPTO_OUT	Opto-isolated output signal (line1)

I/O electrical characteristics

Opto-isolated input circuit (line0)

Logic 0 input level: 0~2.2VDC (OPTO_IN pin)
Logic 1 input level: 3.3~24VDC (OPTO_IN pin)
Maximum input current:30mA

When the input level is between 2.2V and 3.2V, the circuit operation state is uncertain, please do not let SWIR camera work within this voltage range.

Input rise delay (TDR): 6us

Input fall delay (TDF): 6us

Figure 1：Input logic levels

Opto-isolated output circuit (line1)

The opto-isolated output maximum current is 30mA.

Figure 2: Output logic levels

The electrical characteristics of the opto-isolated output (external voltage 5V, external resistor 1K) are shown in Table 2.

Table 2： Opto-isolated output signal’s electrical characteristics
Parameter name	Parameter notation	Parameter value
Output logic low	VL	742mV
Output logic high	VH	4.134V
Output rise time	TR	4us
Output fall time	TF	1.8us
Output rise delay	TDR	12us
Output fall delay	TDF	2us

The output of the corresponding output current and VL when using different voltages and resistors in externalcircuit are shown in Table 3.

Table 3：Opto-isolated output logic’s low levels parameters
External voltage	External resistor	VL	Output current
3.3V	1KΩ	510mV	2.82mA
5V	1KΩ	742mV	4.31mA
12V	2.4KΩ	795mV	4.68mA
24V	4.7KΩ	850mV	4.97mA

Input and output I/O circuit (line2/line3)

1. Line2/line3 is set as input pin
Logic 0 input level: 0~0.6VDC (DIR_GPIO0/DIR_GPIO1 pins)
Logic 1 input level: 2.0~24VDC (DIR_GPIO0/DIR_GPIO1 pins)
Maximum input current: 25mA
When the input level is between 0.6V and 2.0V, the circuit action state is uncertain, please avoid the input voltage range working in this range.

To prevent damage to the GPIO pins, please connect the pin GND first, and then input voltage to the Line2 pin.
Input rise delay (TDR): 0.02us
Input fall delay (TDF): 0.02us

2. Line2/line3 are set as output pins
The maximum current allowed through this pin is 25mA.
The external pull-up voltage is 5V, the pull-up resistor is 1KΩ, and the GPIO is configured to output the logic level and electrical characteristics as shown in Figure 4.

Figure 3: Input logic levels

Figure 4: Output logic levels

When the ambient temperature is 25 degrees Celsius, the relationship between the external voltage, resistance and low-level voltage output is shown in Table 4.

Table 4：Non-isolated output Logic’s low level parameters
External voltage	External resistor	VL(GPIO)
3.3V	1KΩ	0.11V
5V	1KΩ	0.167V
12V	2.4KΩ	0.184V
24V	4.7KΩ	0.385V

Table 5: Non-isolated output electrical characteristics
Parameter name	Parameter notation	Parameter value
Output rise time	TR	0.08us
output fall time	TF	0.02us
Output rise delay	TDR	0.1us
Output fall delay	TDF	0.04u

SWIR051A Series Camera Sensor Features

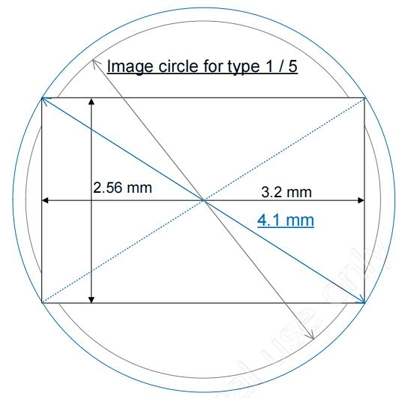

Figure 1: Relationship Between Image Circle And Pixel Area

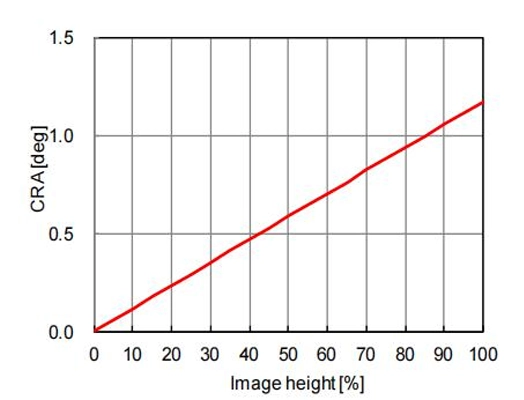

Figure 2 recommends the characteristics of CRA when the image height is from 0-100%

Figure 2: SWIR0503A CRA Characteristics

SWIR0503A series cameras CRA（Chief Ray Angle）Characteristics
lmage height		CRA（deg）
(%)	(mm）	CRA（deg）
0	0	0
5	0.1	0.06
10	0.2	0.12
15	0.31	0.18
20	0.41	0.23
25	0.51	0.29
30	0.61	0.35
35	0.72	0.41
40	0.82	0.47
45	0.92	0.53
50	1.02	0.59
55	1.13	0.65
60	1.23	0.7
65	1.33	0.76
70	1.43	0.82
75	1.54	0.88
80	1.64	0.94
85	1.74	1
90	1.84	1.06
95	1.95	1.12
100	2.05	1.17

AttosView

AttosView support all Attostek UV-VIS and SWIR cameras, it is a professional software that integrates camera control, image acquisition and processing, image browsing and analysis functions.

AttosView has the following characteristics:

x86: XP SP3 and above; CPU support SSE2 and above
x64: Win7 and above

Introduction to SDK

ascamsdk support a variety of APIs, including: Native C/C++,.NET/C#/VB.NET, Python, Java, DirectShow, Twain, LabView, Matlab, etc. Compared with other APIs, Native C/C++ API as a low-level API is characterized by using pure C/C++ development without relying on other runtime libraries. The interface is simple and the control is flexible.

Supported SDK platforms include: Win32 and WinRT, macOS, Linux, Android.

The supported versions for Win32 are as follows:

x86: XP SP3 and above; the CPU needs to support at least the SSE2 instruction set.
x64: Win7 and above.
arm: Win10 and above.
arm64: Win10 and above.

Third-party interface software

AttosTek provides extensive third-party software support for its UV-Vis cameras and SWIR cameras, facilitating rapid integration and use in various development environments. This includes SDK and demo programs for LabVIEW and MATLAB, as well as DirectShow drivers, Micromanager, and TWAIN SDK drivers. These features enable seamless compatibility with mainstream development environments and third-party software, greatly simplifying the workflow for system integration and secondary development.

AttosView

Support all Attostek UV-VIS and SWIR cameras.

Click the button below to download the AttosView software.

Download

SDK

Support a variety of APIs.

Click the button below to download the SDK.

Download

Third-Party Software

DirectShow Driver:

Download

Micromanager Driver:

Download

TWAIN SDK Driver:

Download

Frame Grabber Driver

For the SWIR0503ACL SWIR camera (CameraLink interface), the recommended frame grabber is:

Magewell：

Download

FIREBIRD：

Download

Hikvision：

Download

For the SWIR0503ACXP SWIR camera (CoaxPress interface), the recommended frame grabber is:

Magewell：

Download

Recommended PC Configuration

AttosView Recommended System Requirements
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 /10 /11(32 & 64 bit), Mac OSX, Linux
Processor (CPU)	≥3.0 GHz Intel Core i5 or Higher
Memory (RAM)	≥8 GB
Hard Drive	NVMe Solid State Drive (SSD)
Graphics Card	Dedicated Adapter with ≥256 MB RAM
Motherboard	USB 3.0 (-USB) Cameras: Integrated Intel USB 3.0 Controller or One Unused One Unused PCle3.0*16 Slot
Connectivity	Internet Connectivity for Driver Installation

User interface design

The image below shows the interface of the Attosview software. For more detailed information, please download the product manual.

Function	Function description
Operating mode	Operating mode: video mode or trigger mode Trigger mode: soft trigger mode or external trigger mode
Denoise	The camera hardware incorporates denoise
Automatic exposure	Automatic exposure or manual exposure function
Gain	HG, MG, LG 3 gain modes
Frame rate	Supports precise frame rate control
ROI	Supports single-zone ROI with a maximum frame rate of 8000fps after ROI
Flip	Supports Vertical/horizontal flip
Custom dark field correction	The hardware supports up to 12 groups of user-defined dark field correction image functions
Timestamp function	Timestamps can be turned on or off. After the timestamp function is enabled, the low 8bits of 1-8 pixels, 9-16 pixels, and 17-24 pixels will be modified to: 0-7: frame number; 8-15: Frame time; 16-23: trigger signal count
Firmware update	Supports firmware online update
Pipette function	Supports the display of the gray value of the mouse pixel position
Histogram display	Supports histogram display and statistics
Plane line function	Supports the function of viewing surface data
Regional gray statistics	Support the average gray statistics function of user-defined areas
Cooling system	1) The cooling system of the camera uses a built-in TEC cooling chip for the sensor, with external heat dissipation structure and fan auxiliary heat dissipation, the working temperature can be adjusted to a specific value, the effective cooling temperature can be lower than the ambient temperature of 40℃, and the high-efficiency cooling system ensures extremely low dark current level; 2) The TEC system adopts PID algorithm control, so that TEC can accurately adjust the sensor to the target temperature, and the temperature deviation is 0.3℃;

Q1：Why doesn't the SWIR0503A camera require cutting the sample for non-destructive moisture detection in fruits and vegetables?
Imaging principle of the SWIR0503A series cameras: Water molecules contain O-H chemical bonds, which show strong characteristic absorption valleys around 1450nm in the shortwave infrared range. The water content differs between intact fruit flesh and areas affected by mold or insect damage, so infrared imaging grayscale will show clear differences. This lets you check internal quality without cutting the fruit.

These cameras have a readout noise of only 176.7e⁻, so even tiny differences in water content can be accurately detected. The global shutter eliminates motion blur from fast-moving fruit conveyors, making them perfect for fruit sorting lines.
Q2：How should I choose among the four cameras in the SWIR0503A series?
All four cameras are equipped with the Sony IMX991 SenSWIR InGaAs sensor, with identical pixel size, resolution, and cooling, so the imaging quality is completely the same, differing only in data interface and frame rate. The SWIR0503AU camera is suitable for laboratories, small desktop equipment, and short-distance transmission, offering plug-and-play functionality.

The SWIR0503AG camera transmits data via network cable, allowing long-distance transmission, and is suitable for industrial long-distance wiring and automated production lines, making it the first choice for material sorting.

The SWIR0503ACXP features high-bandwidth stable output, suitable for high-speed laser monitoring and high-precision semiconductor online inspection; it requires a dedicated CXP capture card.

The SWIR0503ACL camera has a high bandwidth ceiling, compatible with traditional vision acquisition systems and high-frame-rate research platforms, and comes with CLView software.
Q3：Which systems is AttosView compatible with, and what image analysis features does it come with?
System Support: AttosView is compatible with Win7/10/11 64-bit systems; the accompanying SDK covers Win32/WinRT/Linux/macOS/Android, and also supports ARM industrial control motherboards.

Built-in Professional Features: Software/hardware and external dual trigger modes, automatic/manual exposure, three-level gain, image flipping, 12 sets of custom dark field correction, histogram, profile line, regional grayscale statistics, pixel grayscale reading, timestamp frame recording, firmware online upgrade, hardware noise reduction.

CameraLink models additionally come with CLView dedicated acquisition software.

0.33 MP SWIR0503 Series Short-Wave Infrared Camera with InGaAs Sensor

Model	SWIR0503AU	SWIR0503AG	SWIR0503ACXP	SWIR0503ACL
FPS/Resolution	8bit: 400fps@640 x 512、753fps@320 x 256 12bit: 212fps@640 x 512、400fps@320 x 256	8bit: 257.8fps@640 x 512、486.1fps@320 x 256 12bit: 137.1fps@640 x 512、258.6fps@320 x 256	8 Bit:258fps@656×520、486fps@328×260 10 Bit:240fps@656×520、451fps@328×260 12 Bit:137fps@656×520、258fps@328×260	8 Bit:400fps@640 x 512、753fps@320 x 256 12 Bit:212fps@640 x 512、400fps@320 x 256
Data interface	USB3.0	GigE	CoaxPress	CameraLink
Binning Mode	Software 2×2, 3×3, 4×4			Not supported
Power supply method	Powered by USB 3.0 / 12V 3A power adapter	12V 3A power adapter
Size	80mm×80mm×45.5mm			75mm×75mm×81.9mm
Sofeware	AttosView / SDK			AttosView/SDK /CLView
