3 MP 3.45 μm 400-1700nm Pixels SWIR Camera

| Features |
| The spectral response range covers 400–1700 nm. |
| 2048×1536 resolution,3.45 μm pixel size |
| Global shutter, high-speed acquisition |
| 12-bit (8/10/12-bit optional for specific models) |
| Hardware ROI & external triggering |
| 512MB cache (Model-Dependent) |
| CE/FCC Cerifcation,Multi-platform SDK |
The SDK supports development languages such as C/C++, C #/VB.net, Python, Java, etc,
Third-party support including LabVIEW, MATLAB, Micro-Manager, DirectShow, and TWAIN.

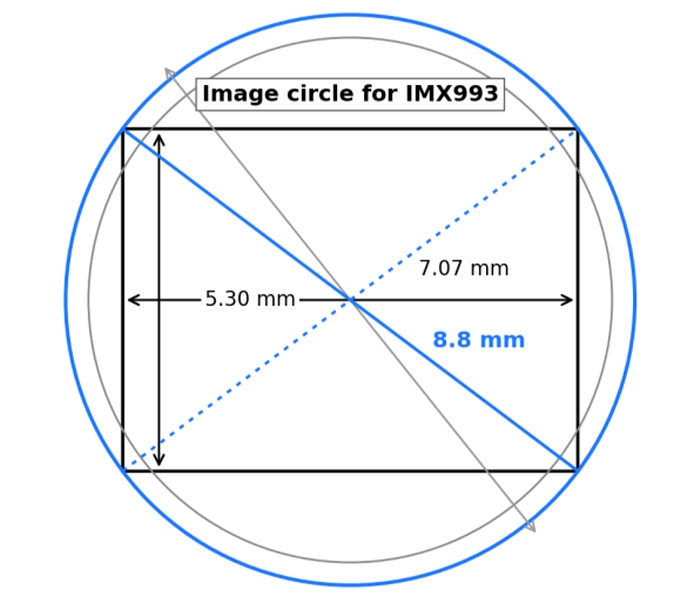

| Common Specifications | |
| Model | SWIR033AU, SWIR033A10G, SWIR033ACXP, SWIR033ACL |
| Sensor Model | Sony IMX993 InGaAs |
| Spectral Range | 400-1700nm |
| Pixel Size | 3.45um*3.45um |
| Sensor Size | 1/1.8″ |
| Image Buffer | 512Mb |
| Conversion Gain | 10.3e/ADU (HCG)17.29e/ADU (LCG) |
| Dynamic Range | 51.36dB (HCG)51.47dB (LCG) |
| Readout Noise | 111.88e (HCG), 186.61e (LCG) |
| Full Well Capacity | 41.39ke (HCG)69.92ke (LCG) |
| Maximum SNR | 46.17dB (HCG)48.45dB (LCG) |
| Sensitivity | TBD |
| Dark current | TBD |
| Gain range | 1-15x |
| Exposure Time Range | 15us-60s |
| Shutter Mode | Global Shutter |
| Digital I/O | 1 channel of optically isolated input 1 channel of optically isolated output 2 channels of non-isolated input/output ports |
| Data Format | 12Bit/8Bit |
| Optical Filter | 400-1800nm (Standard); 1030-1800nm (Optional) |

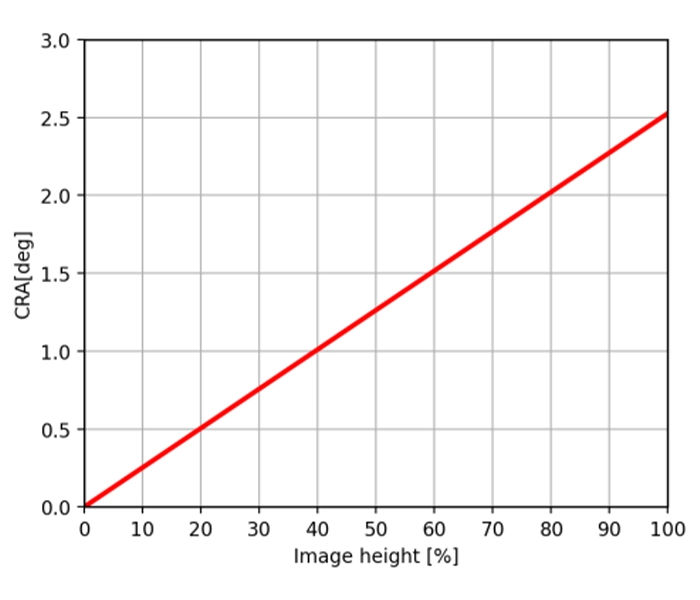

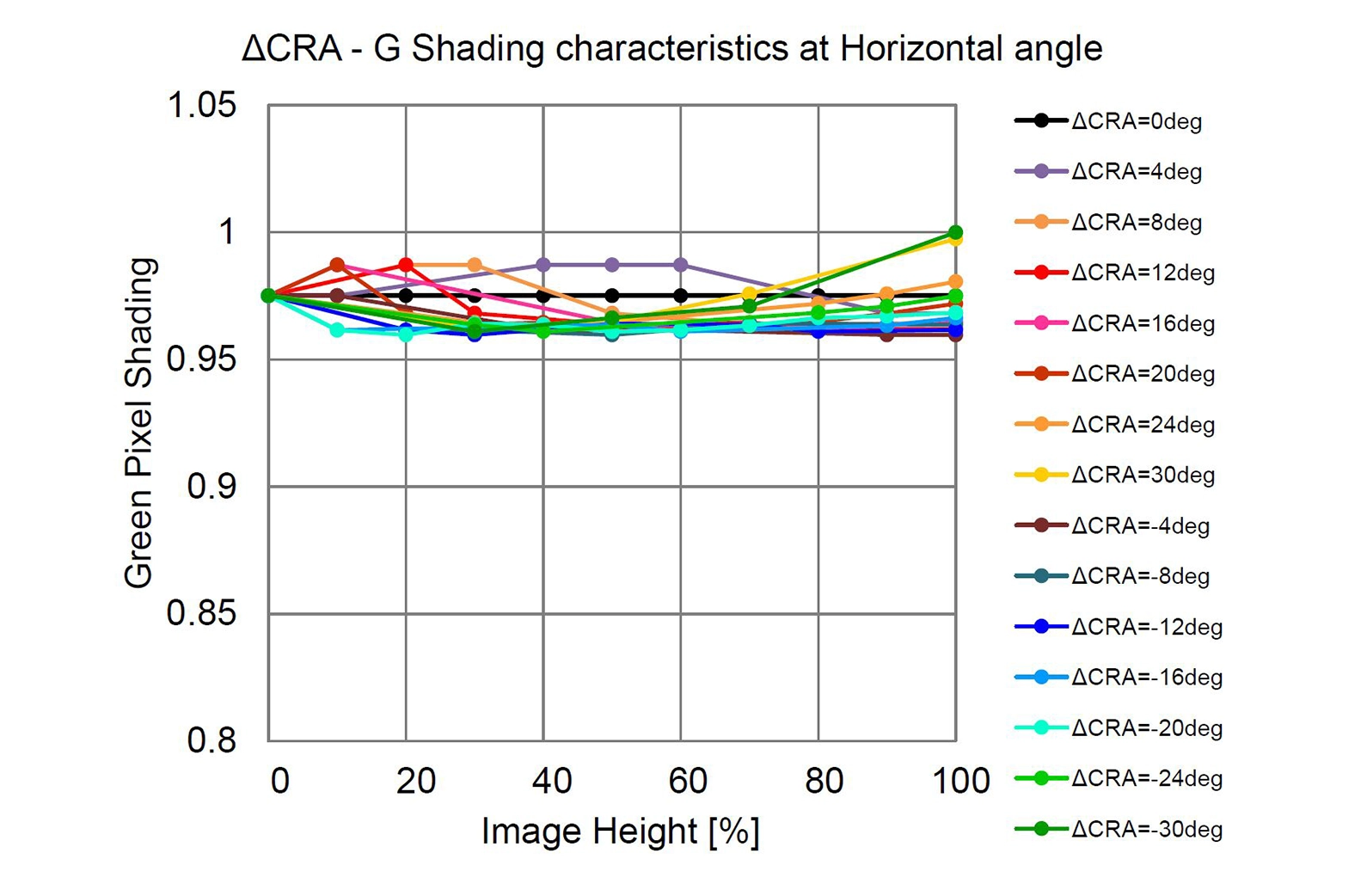

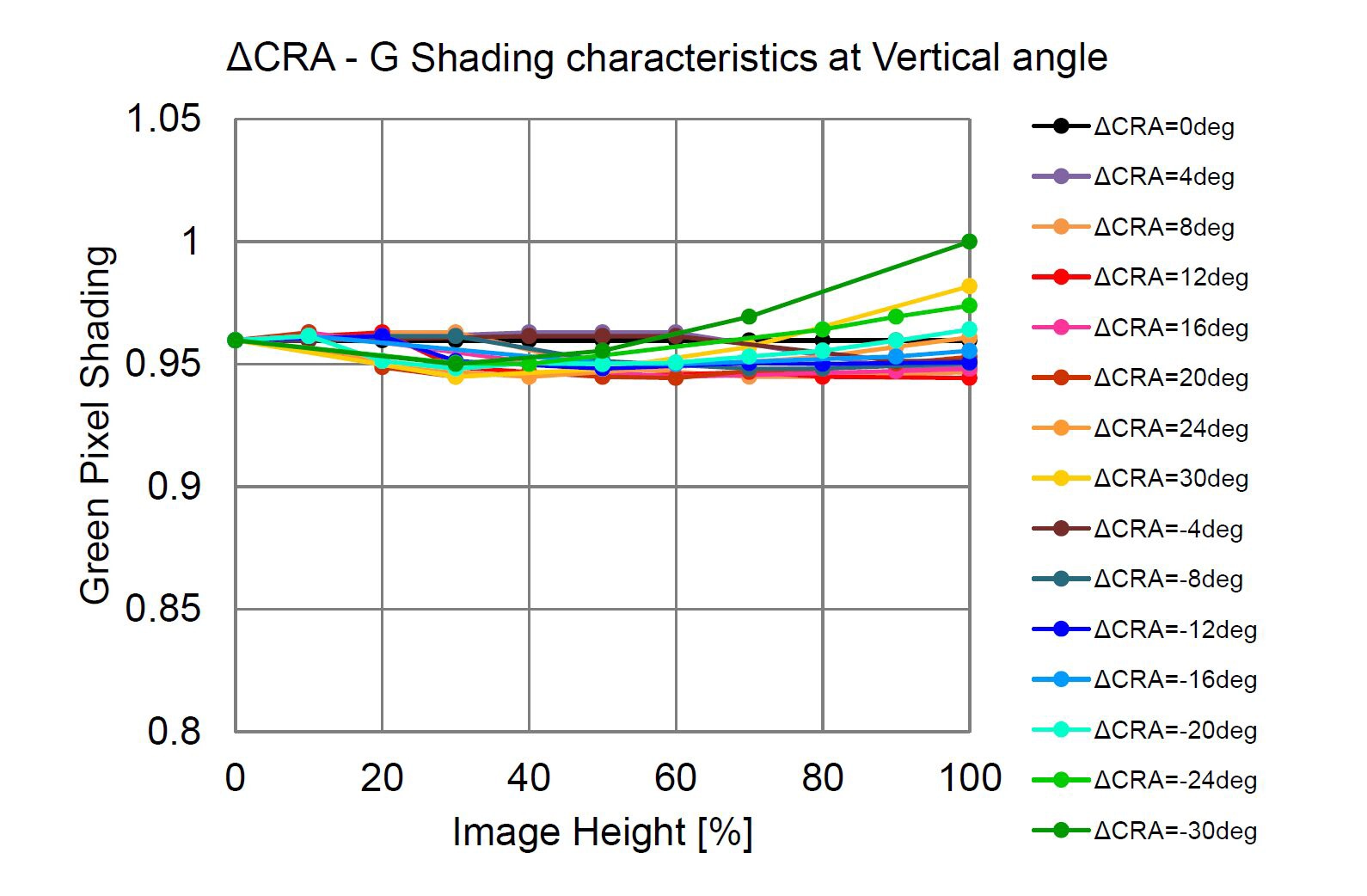

| CRA | 2.35° |
| Temperature | Working temperature: -20~60℃, Storage Temperature: -40~85℃ |
| Humidity | 20%-80%, no condensation |
| Weight | <390g |

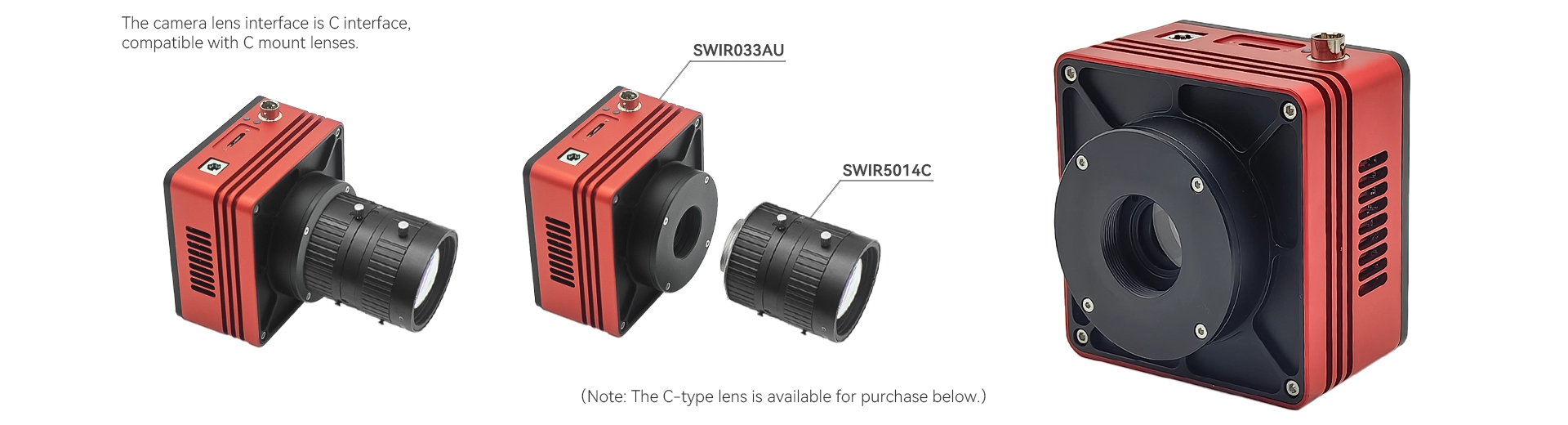

| Lens mount | C-mount |
| Software | AttosView / SDK |
| Operating system | Win32/WinRT/Linux/macOS/Android |
| Certification | CE, FCC |


*Red curve: 1030-1800nm optional filter

| Parameter | Specification |
| Size | 80*80*45.5mm |
| Mount | C mount |

| Item | Specification |
| 1 | USB3.0 port |
| 2 | DC 12V power |
| 3 | External IO connection port |

| Parameter | Specification |
| Size | 80*80*45.5mm |
| Mount | C mount |

| Item | Specification |
| 1 | GigE port |
| 2 | DC 12V power |
| 3 | External IO connection port |

| Parameter | Specification |
| Size | 75*75*81.9mm |
| Mount | C mount |

| Item | Specification |
| 1 | External IO connection port |
| 2 | DC 12V power |
| 3 | CameraLink1 |
| Table1: USB port, GigE port, CL port refrigerated camera pin signal definitions | |||||
![]() |
Color | Pin | Signal | Description of the signal | |
| White | 1 | GDN | Direct-coupled signal ground | ||
| Red | 2 | 12V | 12VDC power input | ||
| Blue | 3 | OPTO_GND | Opto-isolated signal ground | ||
| Yellow | 4 | DIR_GPIO0 | Direct-coupled General Purpose I/O (Software configurable input/output) (line2) | ||
| Black | 5 | DIR_GPIO1 | Direct-coupled General Purpose I/O (Software configurable input/output) (line3) | ||
| Green | 6 | OPTO_IN | Opto-isolated input signal (line0) | ||
| Pink | 7 | OPTO_OUT | Opto-isolated output signal (line1) | ||


The electrical characteristics of the opto-isolated output (external voltage 5V, external resistor 1K) are shown in Table 2.
| Table 2: Opto-isolated output signal’s electrical characteristics | ||
| Parameter name | Parameter notation | Parameter value |
| Output logic low | VL | 742mV |
| Output logic high | VH | 4.134V |
| Output rise time | TR | 4us |
| Output fall time | TF | 1.8us |
| Output rise delay | TDR | 12us |
| Output fall delay | TDF | 2us |
The output of the corresponding output current and VL when using different voltages and resistors in externalcircuit are shown in Table 3.
| Table 3:Opto-isolated output logic’s low levels parameters | |||
| External voltage | External resistor | VL | Output current |
| 3.3V | 1KΩ | 510mV | 2.82mA |
| 5V | 1KΩ | 742mV | 4.31mA |
| 12V | 2.4KΩ | 795mV | 4.68mA |
| 24V | 4.7KΩ | 850mV | 4.97mA |
1. Line2/line3 is set as input pin
Logic 0 input level: 0~0.6VDC (DIR_GPIO0/DIR_GPIO1 pins)
Logic 1 input level: 2.0~24VDC (DIR_GPIO0/DIR_GPIO1 pins)
Maximum input current: 25mA
When the input level is between 0.6V and 2.0V, the circuit action state is uncertain, please avoid the input voltage range working in this range.
To prevent damage to the GPIO pins, please connect the pin GND first, and then input voltage to the Line2 pin.
Input rise delay (TDR): 0.02us
Input fall delay (TDF): 0.02us
2. Line2/line3 are set as output pins
The maximum current allowed through this pin is 25mA.
The external pull-up voltage is 5V, the pull-up resistor is 1KΩ, and the GPIO is configured to output the logic level and electrical characteristics as shown in Figure 4.


When the ambient temperature is 25 degrees Celsius, the relationship between the external voltage, resistance and low-level voltage output is shown in Table 4.
| Table 4:Non-isolated output Logic’s low level parameters | ||
| External voltage | External resistor | VL(GPIO) |
| 3.3V | 1KΩ | 0.11V |
| 5V | 1KΩ | 0.167V |
| 12V | 2.4KΩ | 0.184V |
| 24V | 4.7KΩ | 0.385V |
| Table 5: Non-isolated output electrical characteristics | ||
| Parameter name | Parameter notation | Parameter value |
| Output rise time | TR | 0.08us |
| output fall time | TF | 0.02us |
| Output rise delay | TDR | 0.1us |
| Output fall delay | TDF | 0.04u |
ascamsdk support a variety of APIs, including: Native C/C++,.NET/C#/VB.NET, Python, Java, DirectShow, Twain, LabView, Matlab, etc. Compared with other APIs, Native C/C++ API as a low-level API is characterized by using pure C/C++ development without relying on other runtime libraries. The interface is simple and the control is flexible.
AttosTek provides extensive third-party software support for its UV-Vis cameras and SWIR cameras, facilitating rapid integration and use in various development environments. This includes SDK and demo programs for LabVIEW and MATLAB, as well as DirectShow drivers, Micromanager, and TWAIN SDK drivers. These features enable seamless compatibility with mainstream development environments and third-party software, greatly simplifying the workflow for system integration and secondary development.
For the SWIR033ACL SWIR camera (CameraLink interface), the recommended frame grabber is:
|
AttosView Recommended System Requirements |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 /11(32 & 64 bit), Mac OSX, Linux |
|
Processor (CPU) |
≥3.0 GHz Intel Core i5 or Higher |
|
Memory (RAM) |
≥8 GB |
|
Hard Drive |
NVMe Solid State Drive (SSD) |
|
Graphics Card |
Dedicated Adapter with ≥256 MB RAM |
|
Motherboard |
USB 3.0 (-USB) Cameras: Integrated Intel USB 3.0 Controller or One Unused One Unused PCle3.0*16 Slot |
|
Connectivity |
Internet Connectivity for Driver Installation |

|
Function |
Function description |
|
Operating mode |
Operating mode: video mode or trigger mode |
|
Denoise |
The camera hardware incorporates denoise |
|
Automatic exposure |
Automatic exposure or manual exposure function |
| Gain |
HG, MG, LG 3 gain modes |
|
Frame rate |
Supports precise frame rate control |
|
ROI |
Supports single-zone ROI with a maximum frame rate of 8000fps after ROI |
| Flip |
Supports Vertical/horizontal flip |
| Custom dark field correction |
The hardware supports up to 12 groups of user-defined dark field correction image functions |
|
Timestamp function |
Timestamps can be turned on or off. After the timestamp function is enabled, the low 8bits of 1-8 pixels, 9-16 pixels, and 17-24 pixels will be modified to: 0-7: frame number; 8-15: Frame time; 16-23: trigger signal count |
|
Firmware update |
Supports firmware online update |
|
Pipette function |
Supports the display of the gray value of the mouse pixel position |
|
Histogram display |
Supports histogram display and statistics |
| Plane line function |
Supports the function of viewing surface data |
|
Regional gray statistics |
Support the average gray statistics function of user-defined areas |
|
Cooling system |
1) The cooling system of the camera uses a built-in TEC cooling chip for the sensor, with external heat dissipation structure and fan auxiliary heat dissipation, the working temperature can be adjusted to a specific value, the effective cooling temperature can be lower than the ambient temperature of 40℃, and the high-efficiency cooling system ensures extremely low dark current level; |
Q1 : SWIR033A application principle in high-precision semiconductor and photovoltaic inspection scenarios, and which native hardware features of the camera match these requirements?
Imaging Principle: Silicon-based materials are transparent in the short-wave infrared range above 1000nm. Visible light can only observe surface scratches on workpieces, while the 400–1700nm spectrum can penetrate the surface layer of silicon wafers to detect internal micro-cracks, voids, impurities, dark spots, and other subsurface defects. Different semiconductor media have varying infrared reflectivity, so the defect areas appear with distinct grayscale differences, meeting high-precision quality inspection needs.
The SWIR033A series cameras feature a 3-megapixel resolution (2048×1536) with 3.45μm small pixels, offering stronger detail resolution in the same field of view. They can detect micron-level tiny defects and are suitable for batch inspection of large-size wafers and full photovoltaic panels.
Spectral response range is 400–1700nm, and they can flexibly switch detection modes with the factory’s two types of optical filters.
With –10℃ TEC active cooling paired with a PID temperature control algorithm, long-exposure dark current is suppressed, making it suitable for long-exposure PV EL imaging with lower noise and better image consistency.
Equipped with multiple programmable digital IOs, the camera can link with production line sensors, rejection mechanisms, and light source controllers to build an automated closed-loop inspection system.
Q2 : How to choose among the four cameras in the SWIR033A series?
All four cameras are equipped with Sony IMX993 SenSWIR InGaAs sensors, with identical pixel size, resolution, and cooling, so the imaging quality is exactly the same. The only differences are in data interface and frame rate. Among them, the SWIR033AU camera is suitable for labs, small desktop setups, and short-distance transmission—plug and play.
The SWIR033AG camera transmits data via Ethernet, supports long-distance transmission, and is ideal for industrial long-distance wiring, automated production lines, and material sorting.
The SWIR033ACXP provides high-bandwidth stable output, suitable for high-speed laser monitoring and high-precision on-line semiconductor inspection, and requires a dedicated CXP capture card.
The SWIR033ACL camera has a high bandwidth ceiling, compatible with traditional vision acquisition systems and high-frame-rate research platforms, and comes with CLView software.
Q3 : Is it possible to do secondary development on Linux and Android embedded platforms
Sure. The SDK provides compiled library files for the corresponding system architecture along with complete sample programs. It supports development on ARM-based embedded boards and is suitable for custom development of embedded online detection devices, portable spectroscopy collection devices, and mobile near-infrared detection instruments.
3 MP SWIR033 Series Short-Wave Infrared CMOS Industria Camera with InGaAs Sensor
| Model | SWIR033AU | SWIR033AG | SWIR033ACXP | SWIR033ACL |
| Sensor Type | Sony IMX993 InGaAs | |||
| Spectral Range | 400nm-1700nm | |||
| Pixel Size | 3.45 µm x 3.45 µm | |||
| ADC | 12Bit/8Bit | 12 Bit/10 Bit/8 Bit | 12 Bit/10 Bit/8 Bit | 12 Bit/10 Bit |
| FPS/Resolution | 8 Bit:93fps@2048×1536、176fps@1024×768 12 Bit:57fps@2048×1536、176fps@1024×768 |
8 Bit:220fps@2048×1536、415fps@1024×768 10 Bit:200fps@2048×1536、380fps@1024×768 12 Bit:118fps@2048×1536、220fps@1024×768 |
8 Bit:173fps@2048×1536、328fps@1024×768 10 Bit:158fps@2048×1536、300fps@1024×768 12 Bit:93fps@2048×1536、176fps@1024×768 |
10 Bit:150fps@2048×1536、300fps@1024×768 12 Bit:93fps@2048×1536、176fps@1024×768 |
| Data interface | USB3.0 | GigE | CoaxPress | CameraLink |
| Power consumption | <25W | TBD | ||
| Cooling performance | 25°C below ambient temperature | 10°C below ambient temperature | ||
| Size | 80mm×80mm×45.5mm | 75mm×75mm×81.9mm | ||
| Software | AttosView / SDK | |||
