0.33 MP 15 μm Pixels 400-1700nm SWIR Camera
| Features |
| The spectral response range covers 400–1700 nm. |
| 640×512resolution，15 μm pixel size |
| Global shutter, high-speed acquisition |
| Hardware ROI & external triggering |
| 512MB cache (Model-Dependent) |
| CE/FCC Cerifcation，Multi-platform SDK |
| Model | SWIR1503AU, SWIR1503ACL |
| Sensor Model | InGaAs CMOS Sensor |
| Spectral Range | 400-1700nm |
| Pixel Size | 15um*15um |
| Sensor Size | 3/4″ |
| ADC | 14bit |
| Image Buffer | 512MByte |

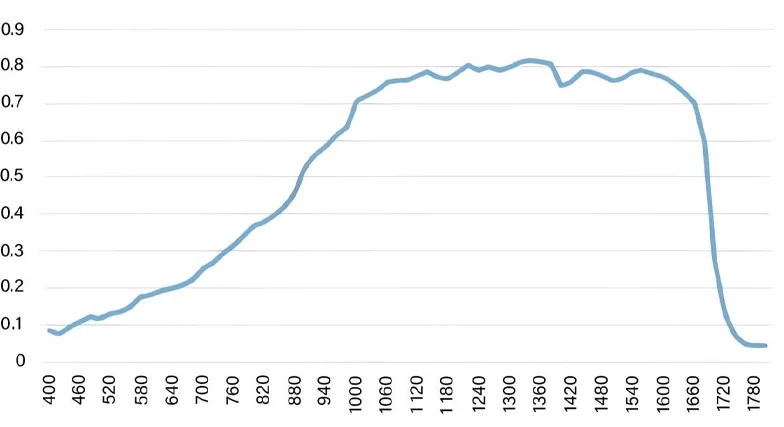

| QE | 70%@ 1700nm |
| Conversion Gain | 0.618 e-/ADU (HCG)，3.559 e-/ADU (MCG)，136.52 e-/ADU (LCG) |
| Dynamic Range | 58.97 dB (HCG)，82.13 dB (MCG)，488.80 dB (LCG) *1) (For reference only) |
| Readout Noise | 58.97 e- (HCG)，82.13 e- (MCG)，488.80 e- (LCG) (For reference only) |
| Full Well Capacity | 9.90 Ke- (HCG)，56.62 Ke- (MCG)，2162.54 Ke- (LCG) *1 |
| Maximum SNR | 39.95 dB (HCG)，47.55 dB (MCG)，63.35 dB (LCG) (For reference only) |
| Dark current | <100fA@0.1V&18℃（fA=6250e-/s） |
| Exposure Time Range | 16µs~5s |
| Shutter Mode | Global Shutter |
| Digital I/O | 1 channel of optically isolated input, 1 channel of optically isolated output |
| Data Format | Mono 12 / Mono 14 |
| Cooling performance | 40°C below ambient temperature |
| Power consumption | 8.4W（TEC OFF）/ <16W（TEC ON） |
| Temperature | Working temperature: -30~60℃， Storage Temperature: -40~85℃ |
| Humidity | 20%-80%，no condensation |

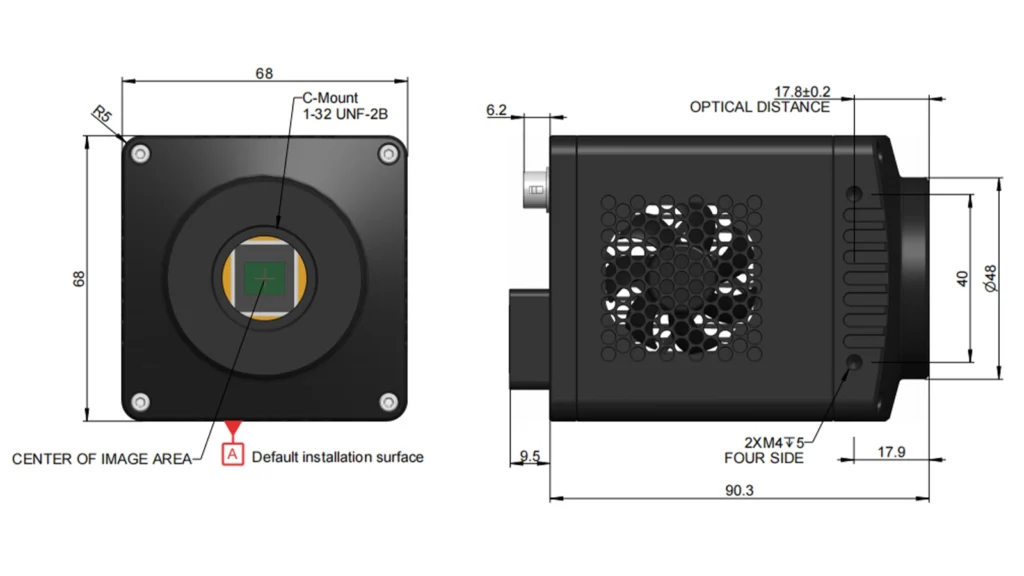

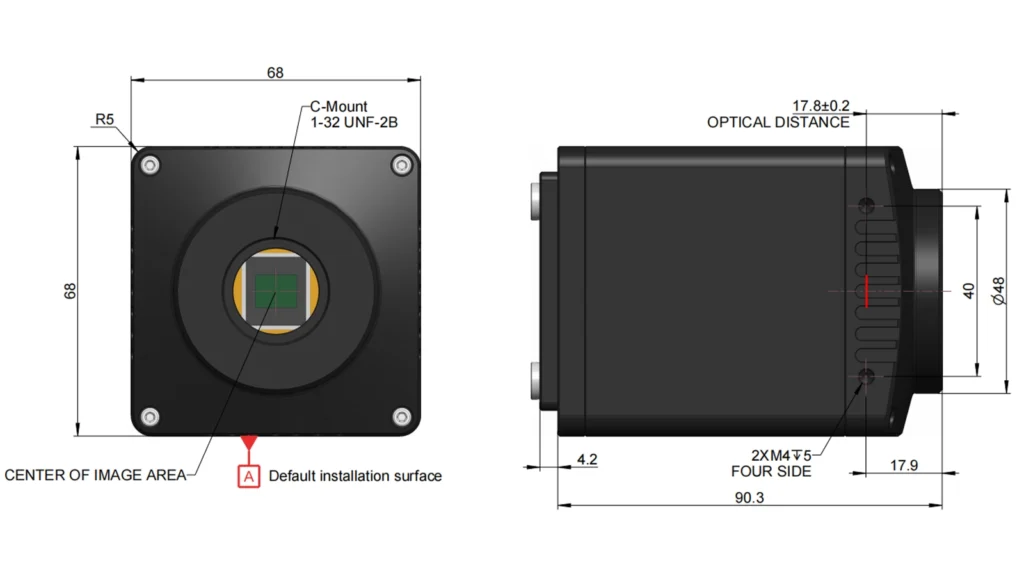

| Size | 68mm×68mm×90.3mm |
| Weight | 485g |

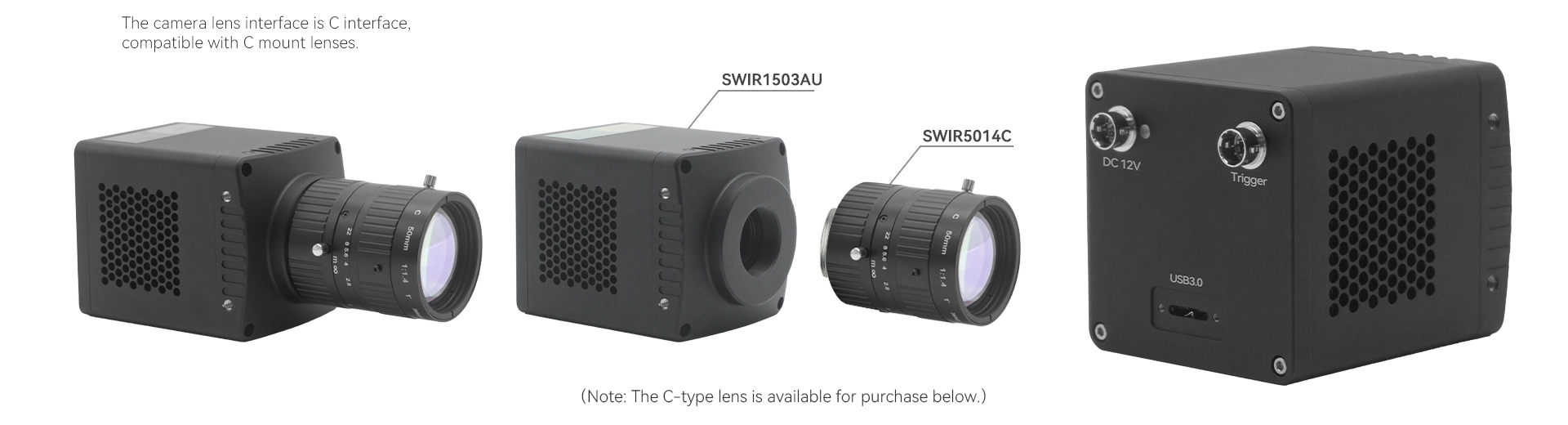

| Lens mount | C-mount |
*Red curve: 1030-1800nm optional filter
| Parameter | Specification |
| Size | 80*80*45.5mm |
| Mount | C mount |
| Item | Specification |
| 1 | USB3.0 port |
| 2 | DC 12V power |
| 3 | External IO connection port |
| Parameter | Specification |
| Size | 80*80*45.5mm |
| Mount | C mount |
| Item | Specification |
| 1 | External IO connection port |
| 2 | DC 12V power |
| 3 | CameraLink1 |
| Table1: USB port, GigE port, CL port refrigerated camera pin signal definitions | |||||
 |
Color | Pin | Signal | Description of the signal | |
| White | 1 | GDN | Direct-coupled signal ground | ||
| Red | 2 | 12V | 12VDC power input | ||
| Blue | 3 | OPTO_GND | Opto-isolated signal ground | ||
| Yellow | 4 | DIR_GPIO0 | Direct-coupled General Purpose I/O (Software configurable input/output) (line2) | ||
| Black | 5 | DIR_GPIO1 | Direct-coupled General Purpose I/O (Software configurable input/output) (line3) | ||
| Green | 6 | OPTO_IN | Opto-isolated input signal (line0) | ||
| Pink | 7 | OPTO_OUT | Opto-isolated output signal (line1) | ||
Logic 0 input level: 0~2.2VDC (OPTO_IN pin)
Logic 1 input level: 3.3~24VDC (OPTO_IN pin)
Maximum input current:30mA
When the input level is between 2.2V and 3.2V, the circuit operation state is uncertain, please do not let SWIR camera work within this voltage range.
Input rise delay (TDR): 6us
Input fall delay (TDF): 6us
The opto-isolated output maximum current is 30mA.
The electrical characteristics of the opto-isolated output (external voltage 5V, external resistor 1K) are shown in Table 2.
| Table 2： Opto-isolated output signal’s electrical characteristics | ||
| Parameter name | Parameter notation | Parameter value |
| Output logic low | VL | 742mV |
| Output logic high | VH | 4.134V |
| Output rise time | TR | 4us |
| Output fall time | TF | 1.8us |
| Output rise delay | TDR | 12us |
| Output fall delay | TDF | 2us |
The output of the corresponding output current and VL when using different voltages and resistors in externalcircuit are shown in Table 3.
| Table 3：Opto-isolated output logic’s low levels parameters | |||
| External voltage | External resistor | VL | Output current |
| 3.3V | 1KΩ | 510mV | 2.82mA |
| 5V | 1KΩ | 742mV | 4.31mA |
| 12V | 2.4KΩ | 795mV | 4.68mA |
| 24V | 4.7KΩ | 850mV | 4.97mA |
1. Line2/line3 is set as input pin
Logic 0 input level: 0~0.6VDC (DIR_GPIO0/DIR_GPIO1 pins)
Logic 1 input level: 2.0~24VDC (DIR_GPIO0/DIR_GPIO1 pins)
Maximum input current: 25mA
When the input level is between 0.6V and 2.0V, the circuit action state is uncertain, please avoid the input voltage range working in this range.
To prevent damage to the GPIO pins, please connect the pin GND first, and then input voltage to the Line2 pin.
Input rise delay (TDR): 0.02us
Input fall delay (TDF): 0.02us
2. Line2/line3 are set as output pins
The maximum current allowed through this pin is 25mA.
The external pull-up voltage is 5V, the pull-up resistor is 1KΩ, and the GPIO is configured to output the logic level and electrical characteristics as shown in Figure 4.
When the ambient temperature is 25 degrees Celsius, the relationship between the external voltage, resistance and low-level voltage output is shown in Table 4.
| Table 4：Non-isolated output Logic’s low level parameters | ||
| External voltage | External resistor | VL(GPIO) |
| 3.3V | 1KΩ | 0.11V |
| 5V | 1KΩ | 0.167V |
| 12V | 2.4KΩ | 0.184V |
| 24V | 4.7KΩ | 0.385V |
| Table 5: Non-isolated output electrical characteristics | ||
| Parameter name | Parameter notation | Parameter value |
| Output rise time | TR | 0.08us |
| output fall time | TF | 0.02us |
| Output rise delay | TDR | 0.1us |
| Output fall delay | TDF | 0.04u |
AttosView support all Attostek UV-VIS and SWIR cameras, it is a professional software that integrates camera control, image acquisition and processing, image browsing and analysis functions.
AttosView has the following characteristics:
- x86: XP SP3 and above; CPU support SSE2 and above
- x64: Win7 and above
ascamsdk support a variety of APIs, including: Native C/C++,.NET/C#/VB.NET, Python, Java, DirectShow, Twain, LabView, Matlab, etc. Compared with other APIs, Native C/C++ API as a low-level API is characterized by using pure C/C++ development without relying on other runtime libraries. The interface is simple and the control is flexible.
- x86: XP SP3 and above; the CPU needs to support at least the SSE2 instruction set.
- x64: Win7 and above.
- arm: Win10 and above.
- arm64: Win10 and above.
AttosTek provides extensive third-party software support for its UV-Vis cameras and SWIR cameras, facilitating rapid integration and use in various development environments. This includes SDK and demo programs for LabVIEW and MATLAB, as well as DirectShow drivers, Micromanager, and TWAIN SDK drivers. These features enable seamless compatibility with mainstream development environments and third-party software, greatly simplifying the workflow for system integration and secondary development.
Support all Attostek UV-VIS and SWIR cameras.
Click the button below to download the AttosView software.
|
AttosView Recommended System Requirements |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 /11(32 & 64 bit), Mac OSX, Linux |
|
Processor (CPU) |
≥3.0 GHz Intel Core i5 or Higher |
|
Memory (RAM) |
≥8 GB |
|
Hard Drive |
NVMe Solid State Drive (SSD) |
|
Graphics Card |
Dedicated Adapter with ≥256 MB RAM |
|
Motherboard |
USB 3.0 (-USB) Cameras: Integrated Intel USB 3.0 Controller or One Unused One Unused PCle3.0*16 Slot |
|
Connectivity |
Internet Connectivity for Driver Installation |
|
Function |
Function description |
|
Operating mode |
Operating mode: video mode or trigger mode |
|
Denoise |
The camera hardware incorporates denoise |
|
Automatic exposure |
Automatic exposure or manual exposure function |
| Gain |
HG, MG, LG 3 gain modes |
|
Frame rate |
Supports precise frame rate control |
|
ROI |
Supports single-zone ROI with a maximum frame rate of 8000fps after ROI |
| Flip |
Supports Vertical/horizontal flip |
| Custom dark field correction |
The hardware supports up to 12 groups of user-defined dark field correction image functions |
|
Timestamp function |
Timestamps can be turned on or off. After the timestamp function is enabled, the low 8bits of 1-8 pixels, 9-16 pixels, and 17-24 pixels will be modified to: 0-7: frame number; 8-15: Frame time; 16-23: trigger signal count |
|
Firmware update |
Supports firmware online update |
|
Pipette function |
Supports the display of the gray value of the mouse pixel position |
|
Histogram display |
Supports histogram display and statistics |
| Plane line function |
Supports the function of viewing surface data |
|
Regional gray statistics |
Support the average gray statistics function of user-defined areas |
|
Cooling system |
1) The cooling system of the camera uses a built-in TEC cooling chip for the sensor, with external heat dissipation structure and fan auxiliary heat dissipation, the working temperature can be adjusted to a specific value, the effective cooling temperature can be lower than the ambient temperature of 40℃, and the high-efficiency cooling system ensures extremely low dark current level; |
问1：为什么高灵敏度相机在数字显微镜中更受欢迎
高灵敏度相机之所以被青睐，是因为它们能够探测和捕捉极低光信号，提升数字显微镜中的图像质量和实验灵活性，克服传统显微镜的局限。
问2：什么是可见光相机？
可见光相机是一种成像设备，旨在仅利用电磁波谱中可见的部分（波长约400–700纳米）来捕捉图像或视频，这与人眼可探测的范围相同。
问3：相机USB3.2接口和10GigE接口有什么区别？
相机USB3.2和10GigE接口的核心区别在于设计目标：USB3.2追求在短距离内的高速、简单连接；而10GigE则旨在实现远距离、高带宽的稳定数据传输，并具备强大的组网能力，支持长距离工作。
当二者同时使用时，数据传输可以两个接口同时进行，有效提升了数据传输速度。
问4：UVISI064系列相机适合哪些应用？
它们广泛应用于生物显微镜、荧光成像、快速天体检测、天文学、X射线成像、冷原子研究及其他精密科学场景。
问1：为什么高灵敏度相机在数字显微镜中更受欢迎
高灵敏度相机之所以被青睐，是因为它们能够探测和捕捉极低光信号，提升数字显微镜中的图像质量和实验灵活性，克服传统显微镜的局限。
问2：什么是可见光相机？
可见光相机是一种成像设备，旨在仅利用电磁波谱中可见的部分（波长约400–700纳米）来捕捉图像或视频，这与人眼可探测的范围相同。
问3：相机USB3.2接口和10GigE接口有什么区别？
相机USB3.2和10GigE接口的核心区别在于设计目标：USB3.2追求在短距离内的高速、简单连接；而10GigE则旨在实现远距离、高带宽的稳定数据传输，并具备强大的组网能力，支持长距离工作。
当二者同时使用时，数据传输可以两个接口同时进行，有效提升了数据传输速度。
问4：UVISI064系列相机适合哪些应用？
它们广泛应用于生物显微镜、荧光成像、快速天体检测、天文学、X射线成像、冷原子研究及其他精密科学场景。
问1：为什么高灵敏度相机在数字显微镜中更受欢迎
高灵敏度相机之所以被青睐，是因为它们能够探测和捕捉极低光信号，提升数字显微镜中的图像质量和实验灵活性，克服传统显微镜的局限。
问2：什么是可见光相机？
可见光相机是一种成像设备，旨在仅利用电磁波谱中可见的部分（波长约400–700纳米）来捕捉图像或视频，这与人眼可探测的范围相同。
问3：相机USB3.2接口和10GigE接口有什么区别？
相机USB3.2和10GigE接口的核心区别在于设计目标：USB3.2追求在短距离内的高速、简单连接；而10GigE则旨在实现远距离、高带宽的稳定数据传输，并具备强大的组网能力，支持长距离工作。
当二者同时使用时，数据传输可以两个接口同时进行，有效提升了数据传输速度。
问4：UVISI064系列相机适合哪些应用？
它们广泛应用于生物显微镜、荧光成像、快速天体检测、天文学、X射线成像、冷原子研究及其他精密科学场景。
Q1 : SWIR1503A Series Camera - -20°C Cooling and 15μm Large Pixels: Key Hardware Advantages and Their Application Benefits?
-20℃ Cooling Advantage (Ambient Temperature 20℃, Dark Current <100fA)
Most similar models on the market only achieve –5℃/-10℃ cooling. This unit’s deep cooling significantly reduces dark current, making it ideal for photovoltaic EL, biological fluorescence, and low-light long-timing experiments. Long exposures won’t produce white fog or noise, and weak-light imaging stability is greatly improved.15μm Extra-Large Pixel Advantage
Compared to models with 3.45μm/5μm small pixels, each pixel here has a larger photosensitive area and higher full-well capacity, so bright light won’t easily overexpose, and low-light scenes have better signal-to-noise ratio. It’s perfect for low-brightness, long-exposure industrial and research applications. The 3/4 inch large sensor also covers bigger workpieces in a single shot, reducing the cost of multi-camera stitching.Q2 : What’s the difference between the SWIR1503AU and SWIR1503ACL models, and how should you choose?
The SWIR1503A series cameras all come with high-performance InGaAs sensors with the same pixel size, resolution, and cooling—only the transmission interface differs.
The SWIR1503AU (USB3.0) works with the standard AttosView software, no extra capture card needed. It’s good for short-distance transmission, fitting for lab desktop setups, small offline inspections, short-range laser observations, and portable spectrometers.
The SWIR1503ACL (CameraLink) comes with the AttosView-specialized CLView software and requires a CameraLink capture card. It’s suitable for traditional research spectroscopy platforms, high-frame dynamic laser monitoring, and fixed, long-term research equipment.
Q3 : Which systems does AttosView support, and what native image analysis tools does it come with?
System Compatibility: AttosView is compatible with Windows 7/10/11 64-bit; the SWIR1503ACL model also comes with dedicated CLView acquisition software.
Built-in Features: Video / software & hardware dual trigger, auto / manual exposure, three-level gain switching, image flipping, up to 12 sets of custom dark field correction, histogram, profile line, pixel grayscale reading, grayscale statistics for custom areas, timestamping, firmware online upgrade, hardware noise reduction.
