1.3MP 5 μm Pixels 400-1700nm SWIR Camera

| Features |
| The spectral response range covers 400–1700 nm. |
| 1280×1024 resolution,5 μm pixel size |
| Global shutter, high-speed acquisition |
| 12-bit (8/10/12-bit optional for specific models) |
| Hardware ROI & external triggering |
| 512MB cache (Model-Dependent) |
| CE/FCC Cerifcation,Multi-platform SDK |
The SDK supports development languages such as C/C++, C #/VB.net, Python, Java, etc,
Third-party support including LabVIEW, MATLAB, Micro-Manager, DirectShow, and TWAIN.
| Common Specifications | |
| Parameter | 1.3M pixels CMOS industrial camera |
| Sensor Model | Sony IMX990-AABA-C |
| Sensor Type | InGaAs |
| Spectral Range | 400nm-1700nm |
| Pixel Size | 5.0 µm x 5.0 µm |
| Sensor Size | 1/2” |
| ADC | 12 Bit, 8 Bit |
| Image Buffer | 512MByte |
| Conversion Gain | 44.3e/ADU |
| Dynamic Range | 58.7dB |
| Readout Noise | 211e |
| Full Well Capacity | 181.6ke |
| Maximum SNR | 52.6dB |
| Sensitivity | 121mV/(lx·s) |
| Dark current | 383e/s(0°C), 510e/s(10°C), 638e/s(20°C) |
| Gain range | 1x-15x |
| Exposure Time Range | 15µs-60sec |
| Shutter Mode | Global Shutter |
| Digital I/O | 1 channel of optically isolated input, 1 channel of optically isolated output, 2 channels of non-isolated input/output port |
| Data Format | 8bit, 12bit |
| Cooling performance | 25°C below ambient temperature |
| Optical Filter | 400-1800nm (Standard); 1030-1800nm (Optional) |
| CRA | 2.35° |
| Power consumption | <25W(Refrigeration) |
| Temperature | Working temperature: -20~60℃, Storage Temperature: -40~85℃ |
| Humidity | 20%-80%,no condensation |
| Weight | <390g |
| Lens mount | C-mount |
| Operating system | Win32/WinRT/Linux/macOS/Android |
| Certification | CE,FCC |

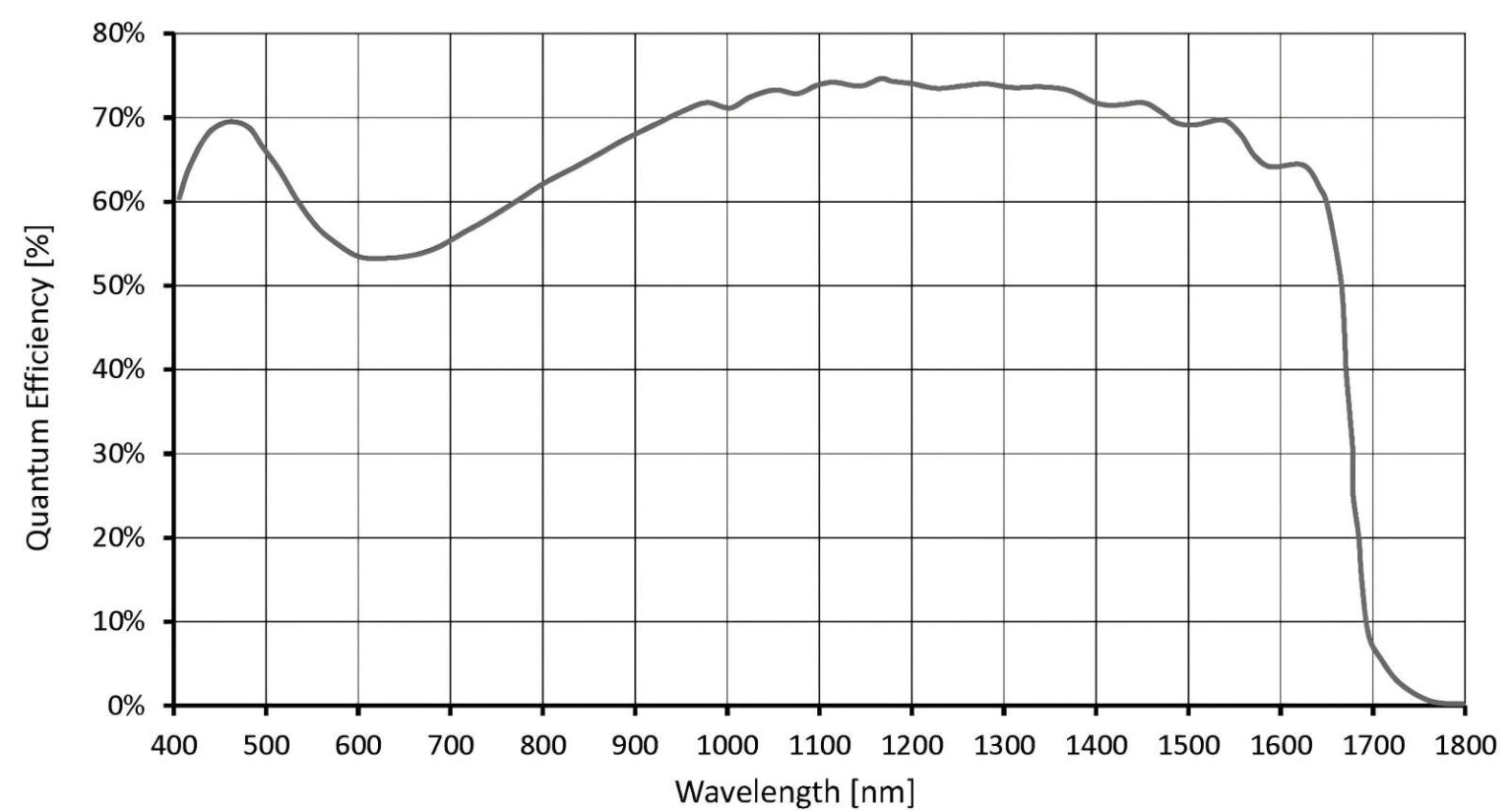

*Red curve: 1030-1800nm optional filter

| Parameter | Specification |

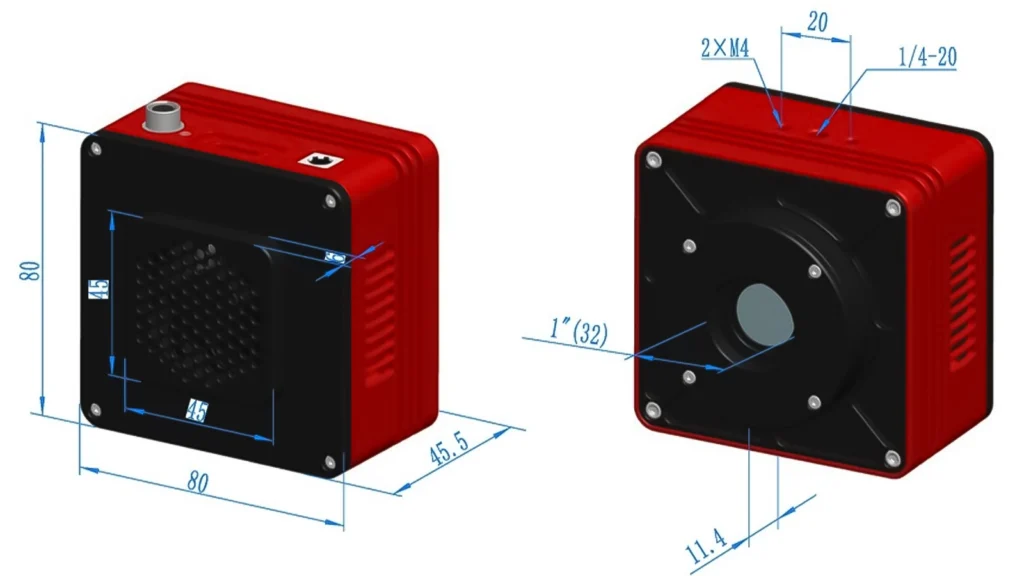

| Size | 80*80*45.5mm |
| Mount | C mount |

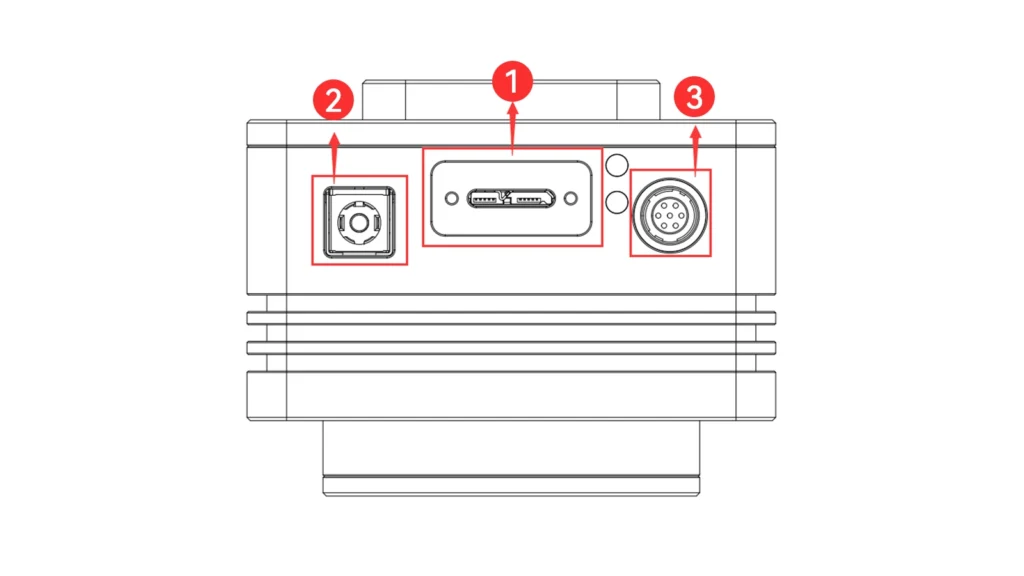

| Item | Specification |
| 1 | USB3.0 port |
| 2 | DC 12V power |
| 3 | External IO connection port |

| Parameter | Specification |

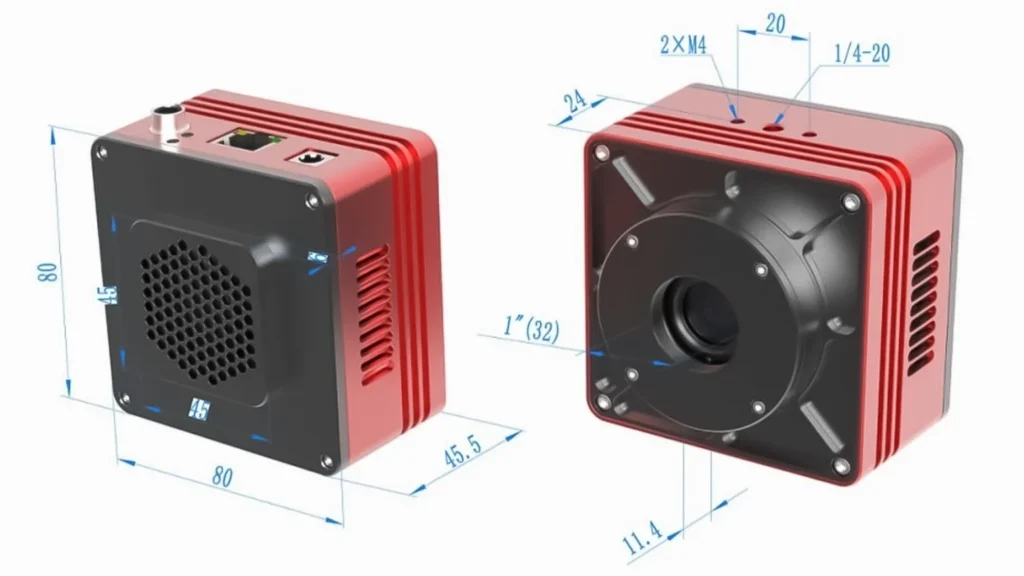

| Size | 80*80*45.5mm |
| Mount | C mount |

| Item | Specification |

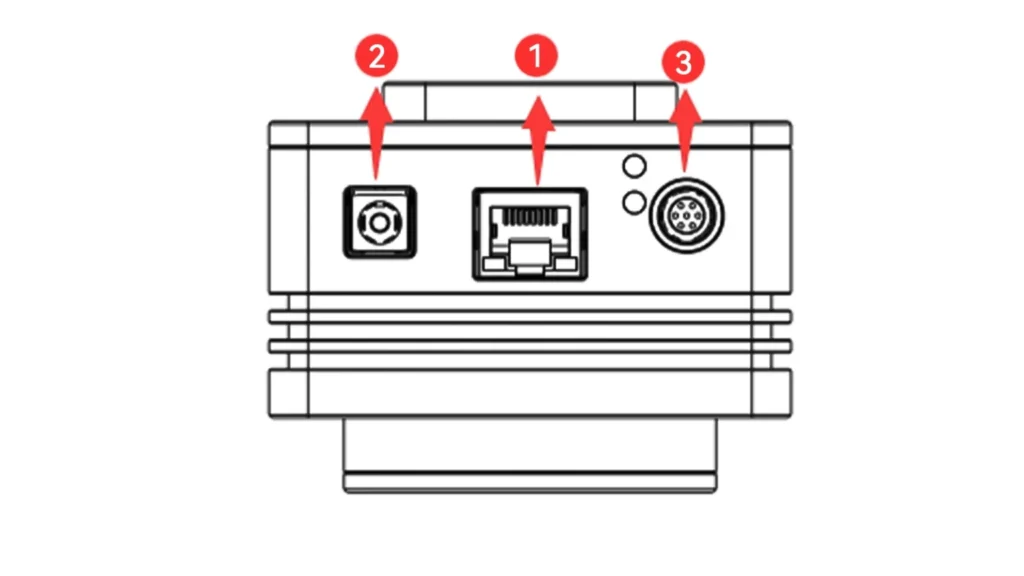

| 1 | GigE port |
| 2 | DC 12V power |
| 3 | External IO connection port |

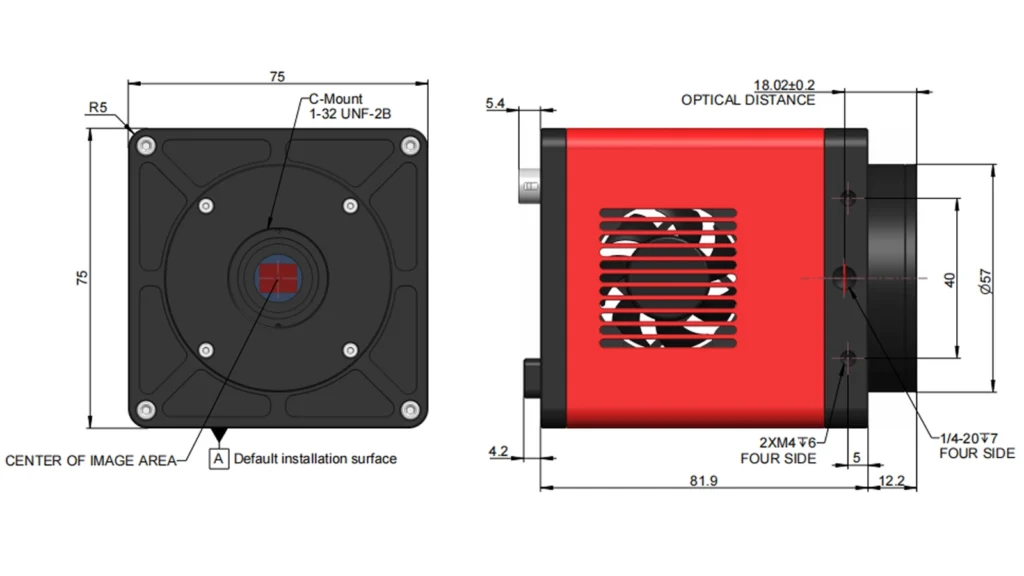

| Parameter | Specification |
| Size | 75*75*81.9mm |
| Mount | C mount |

| Item | Specification |
| 1 | External IO connection port |
| 2 | DC 12V power |
| 3 | CameraLink1 |
| Table1: USB port, GigE port, CL port refrigerated camera pin signal definitions | |||||
![]() |
Color | Pin | Signal | Description of the signal | |
| White | 1 | GDN | Direct-coupled signal ground | ||
| Red | 2 | 12V | 12VDC power input | ||
| Blue | 3 | OPTO_GND | Opto-isolated signal ground | ||
| Yellow | 4 | DIR_GPIO0 | Direct-coupled General Purpose I/O (Software configurable input/output) (line2) | ||
| Black | 5 | DIR_GPIO1 | Direct-coupled General Purpose I/O (Software configurable input/output) (line3) | ||
| Green | 6 | OPTO_IN | Opto-isolated input signal (line0) | ||
| Pink | 7 | OPTO_OUT | Opto-isolated output signal (line1) | ||


The electrical characteristics of the opto-isolated output (external voltage 5V, external resistor 1K) are shown in Table 2.
| Table 2: Opto-isolated output signal’s electrical characteristics | ||
| Parameter name | Parameter notation | Parameter value |
| Output logic low | VL | 742mV |
| Output logic high | VH | 4.134V |
| Output rise time | TR | 4us |
| Output fall time | TF | 1.8us |
| Output rise delay | TDR | 12us |
| Output fall delay | TDF | 2us |
The output of the corresponding output current and VL when using different voltages and resistors in externalcircuit are shown in Table 3.
| Table 3:Opto-isolated output logic’s low levels parameters | |||
| External voltage | External resistor | VL | Output current |
| 3.3V | 1KΩ | 510mV | 2.82mA |
| 5V | 1KΩ | 742mV | 4.31mA |
| 12V | 2.4KΩ | 795mV | 4.68mA |
| 24V | 4.7KΩ | 850mV | 4.97mA |
1. Line2/line3 is set as input pin
Logic 0 input level: 0~0.6VDC (DIR_GPIO0/DIR_GPIO1 pins)
Logic 1 input level: 2.0~24VDC (DIR_GPIO0/DIR_GPIO1 pins)
Maximum input current: 25mA
When the input level is between 0.6V and 2.0V, the circuit action state is uncertain, please avoid the input voltage range working in this range.
To prevent damage to the GPIO pins, please connect the pin GND first, and then input voltage to the Line2 pin.
Input rise delay (TDR): 0.02us
Input fall delay (TDF): 0.02us
2. Line2/line3 are set as output pins
The maximum current allowed through this pin is 25mA.
The external pull-up voltage is 5V, the pull-up resistor is 1KΩ, and the GPIO is configured to output the logic level and electrical characteristics as shown in Figure 4.


When the ambient temperature is 25 degrees Celsius, the relationship between the external voltage, resistance and low-level voltage output is shown in Table 4.
| Table 4:Non-isolated output Logic’s low level parameters | ||
| External voltage | External resistor | VL(GPIO) |
| 3.3V | 1KΩ | 0.11V |
| 5V | 1KΩ | 0.167V |
| 12V | 2.4KΩ | 0.184V |
| 24V | 4.7KΩ | 0.385V |
| Table 5: Non-isolated output electrical characteristics | ||
| Parameter name | Parameter notation | Parameter value |
| Output rise time | TR | 0.08us |
| output fall time | TF | 0.02us |
| Output rise delay | TDR | 0.1us |
| Output fall delay | TDF | 0.04u |

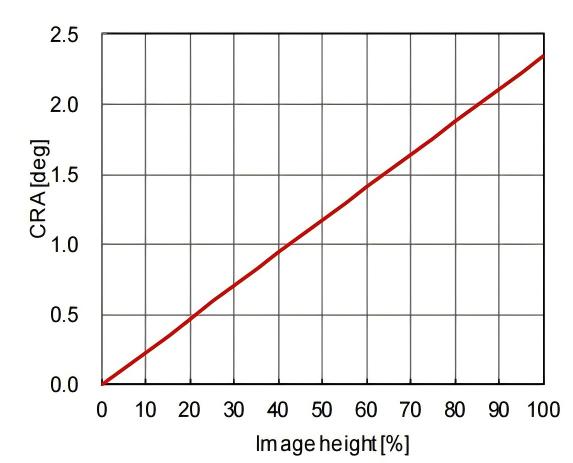

| SWIR051A CRA (Chief Ray Angle) Characteristics | ||
| Image height | CRA (deg) | |
| (%) | (mm) | |
| 0 | 0 | 0 |
| 5 | 0.2 | 0.12 |
| 10 | 0.41 | 0.23 |
| 15 | 0.61 | 0.35 |
| 20 | 0.82 | 0.47 |
| 25 | 1.02 | 0.59 |
| 30 | 1.23 | 0.7 |
| 35 | 1.43 | 0.82 |
| 40 | 1.64 | 0.94 |
| 45 | 1.84 | 1.06 |
| 50 | 2.05 | 1.17 |
| 55 | 2.25 | 1.29 |
| 60 | 2.46 | 1.41 |
| 65 | 2.66 | 1.53 |
| 70 | 2.87 | 1.64 |
| 75 | 3.07 | 1.76 |
| 80 | 3.28 | 1.88 |
| 85 | 3.48 | 1.99 |
| 90 | 3.69 | 2.11 |
| 95 | 3.89 | 2.23 |
| 100 | 4.1 | 2.35 |
ascamsdk support a variety of APIs, including: Native C/C++,.NET/C#/VB.NET, Python, Java, DirectShow, Twain, LabView, Matlab, etc. Compared with other APIs, Native C/C++ API as a low-level API is characterized by using pure C/C++ development without relying on other runtime libraries. The interface is simple and the control is flexible.
AttosTek provides extensive third-party software support for its UV-Vis cameras and SWIR cameras, facilitating rapid integration and use in various development environments. This includes SDK and demo programs for LabVIEW and MATLAB, as well as DirectShow drivers, Micromanager, and TWAIN SDK drivers. These features enable seamless compatibility with mainstream development environments and third-party software, greatly simplifying the workflow for system integration and secondary development.
For the SWIR051ACL SWIR camera (CameraLink interface), the recommended frame grabber is:
|
AttosView Recommended System Requirements |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 /11(32 & 64 bit), Mac OSX, Linux |
|
Processor (CPU) |
≥3.0 GHz Intel Core i5 or Higher |
|
Memory (RAM) |
≥8 GB |
|
Hard Drive |
NVMe Solid State Drive (SSD) |
|
Graphics Card |
Dedicated Adapter with ≥256 MB RAM |
|
Motherboard |
USB 3.0 (-USB) Cameras: Integrated Intel USB 3.0 Controller or One Unused One Unused PCle3.0*16 Slot |
|
Connectivity |
Internet Connectivity for Driver Installation |

|
Function |
Function description |
|
Operating mode |
Operating mode: video mode or trigger mode |
|
Denoise |
The camera hardware incorporates denoise |
|
Automatic exposure |
Automatic exposure or manual exposure function |
| Gain |
HG, MG, LG 3 gain modes |
|
Frame rate |
Supports precise frame rate control |
|
ROI |
Supports single-zone ROI with a maximum frame rate of 8000fps after ROI |
| Flip |
Supports Vertical/horizontal flip |
| Custom dark field correction |
The hardware supports up to 12 groups of user-defined dark field correction image functions |
|
Timestamp function |
Timestamps can be turned on or off. After the timestamp function is enabled, the low 8bits of 1-8 pixels, 9-16 pixels, and 17-24 pixels will be modified to: 0-7: frame number; 8-15: Frame time; 16-23: trigger signal count |
|
Firmware update |
Supports firmware online update |
|
Pipette function |
Supports the display of the gray value of the mouse pixel position |
|
Histogram display |
Supports histogram display and statistics |
| Plane line function |
Supports the function of viewing surface data |
|
Regional gray statistics |
Support the average gray statistics function of user-defined areas |
|
Cooling system |
1) The cooling system of the camera uses a built-in TEC cooling chip for the sensor, with external heat dissipation structure and fan auxiliary heat dissipation, the working temperature can be adjusted to a specific value, the effective cooling temperature can be lower than the ambient temperature of 40℃, and the high-efficiency cooling system ensures extremely low dark current level; |
Q1 : How does fruit and vegetable moisture detection work, and what hardware in the SWIR051A series cameras supports this application?
What hardware in the SWIR051A series cameras supports this scenario?

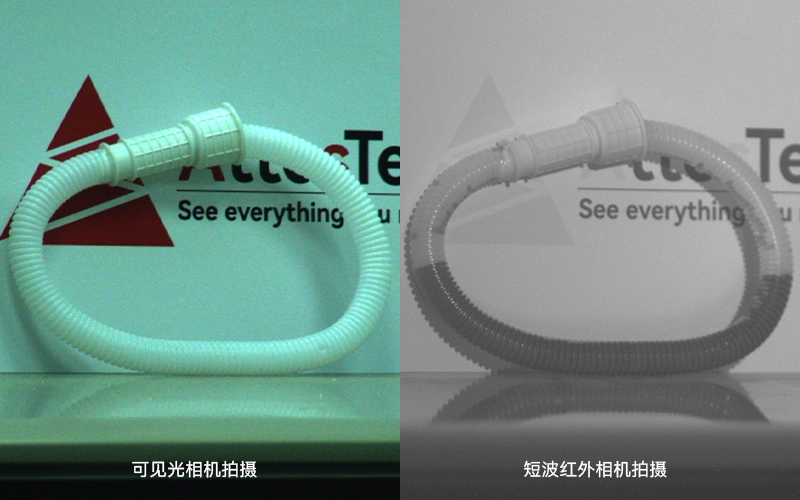

Water molecules have a characteristic absorption dip at 1450nm in the short-wave infrared range. The difference in grayscale between intact fruit flesh and moldy or water-rich areas is obvious, so you can screen internally without cutting the sample.Hardware support: 5μm large pixels, 58.7dB high dynamic range, -10°C deep TEC cooling, up to 60s long exposure with no dark noise, global shutter to eliminate motion blur on the production line, and standard 400-1800nm filters that let you compare visible and infrared images at the same time.
Q2 :How to choose among the four SWIR051A interface models
All four cameras are equipped with the Sony IMX990 sensor, featuring the same 1280×1024 resolution and -10℃ deep TEC cooling, so their imaging quality is exactly the same. The only differences are in things like transmission interfaces and frame rates.
The SWIR051AU camera supports USB power or 12V 3A power supply, plug-and-play style. It’s small, making it ideal for lab desktop setups, short-distance offline inspection, and laser spot observation.
The SWIR051AG camera transmits data via Ethernet, making it suitable for long-distance wiring scenarios like factory long production line material sorting and online fruit inspection.

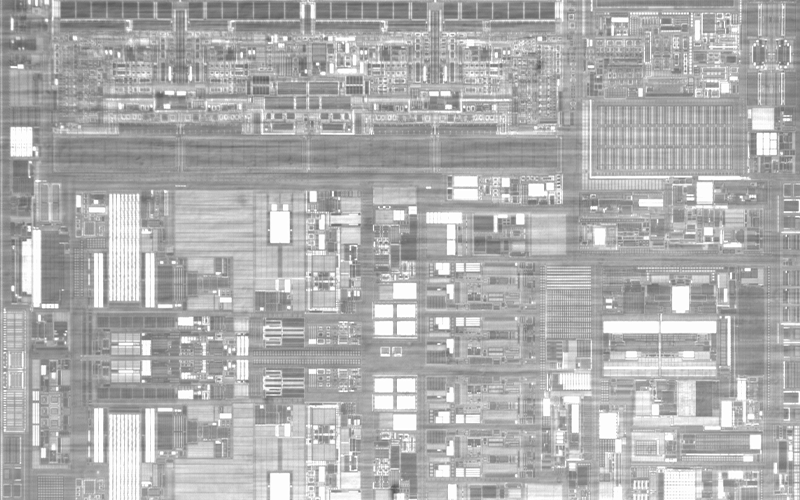

The SWIR051ACXP camera offers high-bandwidth, stable output, perfect for high-speed semiconductor defect detection and high-precision dynamic imaging, and needs to be paired with a CXP capture card.
The SWIR051ACL camera is compatible with traditional vision acquisition systems, comes with CLView software, and is suitable for high-frame-rate research platforms.
Q3 : Which systems and development languages does the SDK support? Does it support MATLAB/LabVIEW
SDK Cross-Platform: Win32/WinRT/macOS/Linux/Android, supports ARM industrial control; C/C at the core, C#, VB.NET, Python, Java on top; official full demos adapted for LabVIEW and MATLAB, compatible with Micro-Manager, DirectShow, TWAIN, no need for low-level reconstruction
1.3 MP SWIR051 Series Short-Wave Infrared Camera with InGaAs Sensor
| Model | SWIR051AU | SWIR051AG | SWIR051ACXP | SWIR051ACL |
| Sensor Type | InGaAs | |||
| Spectral Range | 400nm-1700nm | |||
| Pixel Size | 5.0 µm x 5.0 µm | |||
| Frame rate & Resolution | 8 Bit:200fps@1280 x 1024、392fps@640 x 512 12 Bit:108fps@1280 x 1024、209fps@640 x 512 |
8 Bit:90fps@1280 x 1024、253fps@640 x 512 12 Bit:45fps@1280 x 1024、135fps@640 x 512 |
8 Bit:134fps@1280×1024、260fps@640×512 10 Bit:125fps@1280×1024、242fps@640×512 12 Bit:71fps@1280×1024、138fps@640×512 |
8 Bit:183fps@1280 x 1024、350fps@640 x 512 12 Bit:97fps@1280 x 1024、185fps@640 x 512 |
| Data interface | USB3 | GigE | CoaxPress | CameraLink |
| Binning Mode | Software2x2, 3×3, 4×4 | Not supported | ||
| Size | 80mm×80mm×45.5mm | 75mm×75mm×81.9mm | ||
| Software | AttosView / SDK | SDK /CLView | ||
SWIR051AU
1.3 MP InGaAs SWIR Camera, 5 µm Pixels, USB 3.0 Interface
SWIR051AG
1.3 MP InGaAs SWIR Camera, 5 µm Pixels, GigE Interface
SWIR051ACL
1.3 MP InGaAs SWIR Camera, 5 µm Pixels, CameraLink Interface
SWIR051ACXP
1.3 MP InGaAs SWIR Camera, 5 µm Pixels, CoaxPress Interface

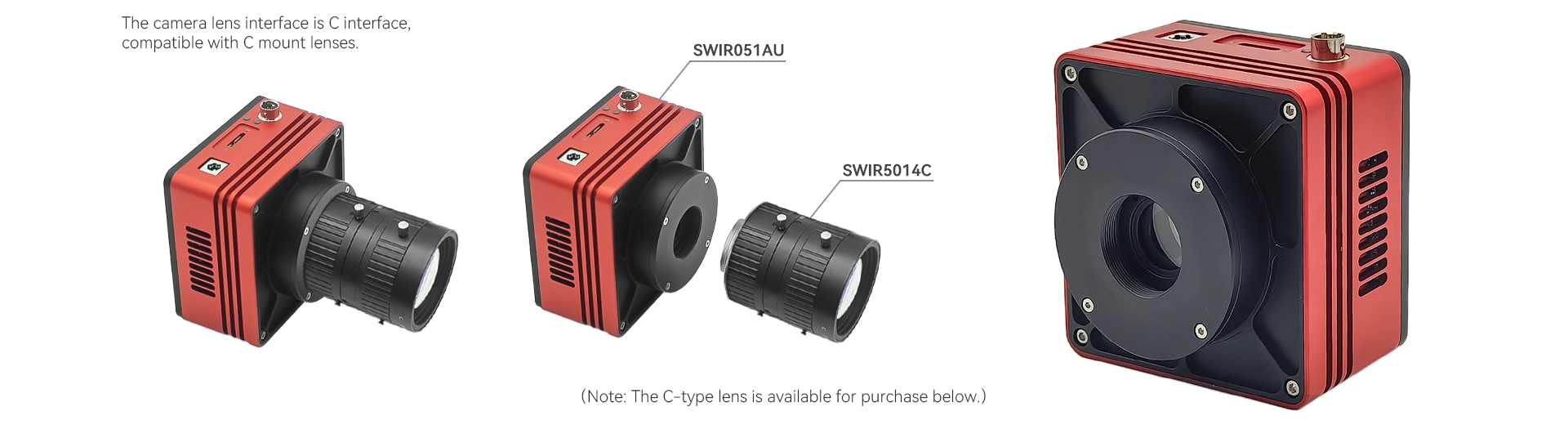

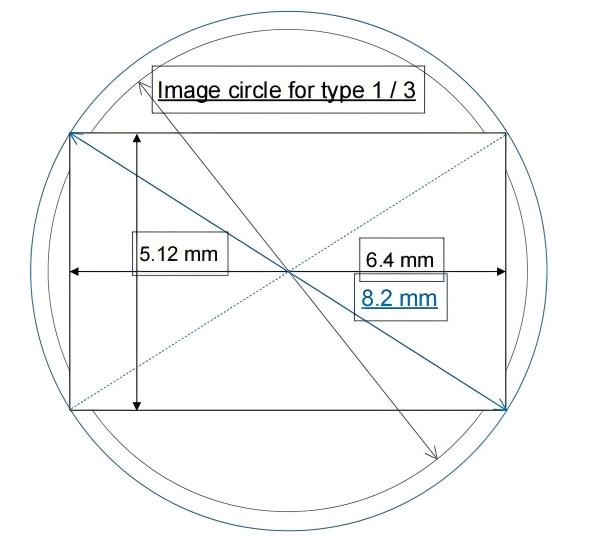

Optional accessories – lenses
To meet the diverse application demands of short-wave infrared (SWIR) imaging, Attostek offer a series of high-performance SWIR lenses. This lineup covers focal lengths from 6mm to 100mm and features a wide aperture range of F1.4 to F2.0 as standard, ensuring high signal-to-noise ratio and superior image quality even in low-light conditions. Users can flexibly select different models based on field of view, working distance, and resolution requirements, providing high sensitivity and versatile scene adaptability for SWIR cameras in applications such as security surveillance, industrial inspection, and scientific research.
SWIR0618C
6mm Focal Length, f1.8, C-Mount SWIR Camera Lenses
SWIR0814CL
8mm Focal Length, f1.4, C-Mount SWIR Camera Lenses
SWIR1214C
12mm Focal Length, f1.4, C-Mount SWIR Camera Lenses
SWIR1614C
16mm Focal Length, f1.4, C-Mount SWIR Camera Lenses
SWIR2514C
25mm Focal Length, f1.4, C-Mount SWIR Camera Lenses
SWIR3514C
35mm Focal Length, f1.4, C-Mount SWIR Camera Lenses
SWIR5014C
50mm Focal Length, f1.4, C Mount SWIR Camera Lenses
SWIR10020C
100mm Focal Length, f2.0, C-Mount SWIR Camera Lenses
