The SWIR1503CU-2.2 short-wave infrared camera uses an InGaAs CMOS sensor with a 0.33 MP resolution and 15 µm pixel size, making sure it captures fine details. Its spectral response covers the 1200–2200 nm infrared range, and it reaches a quantum efficiency of up to 70% at 1900 nm. With deep TEC cooling, it keeps the dark current ultra-low (<25 fA). The max frame rate hits 270 fps, perfect for real-time high-speed imaging.
| Features |
| The spectral response range covers 900–2200 nm. |
| 640×512 resolution,15 μm pixel size |
| Global shutter, high-speed acquisition |
| 14 bit (8/10/14 bit optional for specific models) |
| Hardware ROI & external triggering |
| 512MB cache (Model-Dependent) |
| CE/FCC Cerifcation,Multi-platform SDK |
| Product Model | SWIR1503CU-2.2 |
| Sensor type | InGaAs CMOS |
| Spectral Range | 1200nm – 2200nm |
| Color Type | Monochrome |
| Pixel Size | 15 µm x 15 µm |
| Sensor Size | 3/4″ |
| ADC | 14-bit |
| FPS/Resolution | 8/12/14bit:270@640×512 |
| Image Buffer | 512MByte |

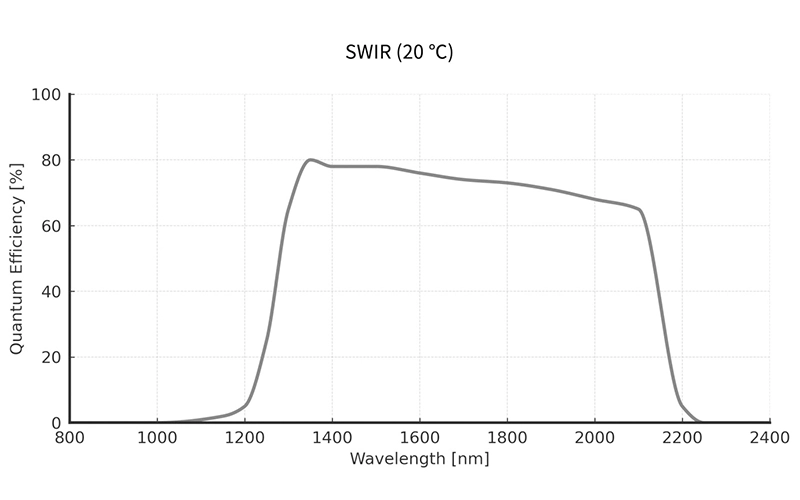

| QE | 70%@ 1900nm |
| Conversion Gain | 77.8e-/DN(LG),6.6e-/DN(MG),2.0e-/DN (HG) |
| Dynamic Range | 71.4dB(LG),63.4dB(MG),56.2dB(HG) *1 |
| Readout Noise | < 50e |
| Full Well | 1.21Me- (LG), 102ke- (MG), 28ke-(HG) |
| Maximum SNR | 60.8dB(LG),50.1dB(MG),44.5dB(HG) |
| Dark current | <25fA@0.1V&18℃;178k e-/pixel/s |
| Exposure Time Range | 16µs~5s |
| Shutter Mode | Global shutter |
| Data interface | USB3.0 |
| Digital I/O | 1 channel of optically isolated input, 1 channel of optically isolated output |
| Data Format | Mono 12 / Mono 14 |
| Cooling Temperature Difference | -50°C TEC cooling (ambient temperature 20°C) |
| Optical Filter | 1000-2400nm (Standard) |
| Power consumption | 7.1W(TEC OFF)/ <18.2W(TEC ON) |
| Operating Temperature | -30 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 20%-80%,no condensation |
| Size | 68 mm × 68 mm × 90.3 mm |
| Weight | 485g |

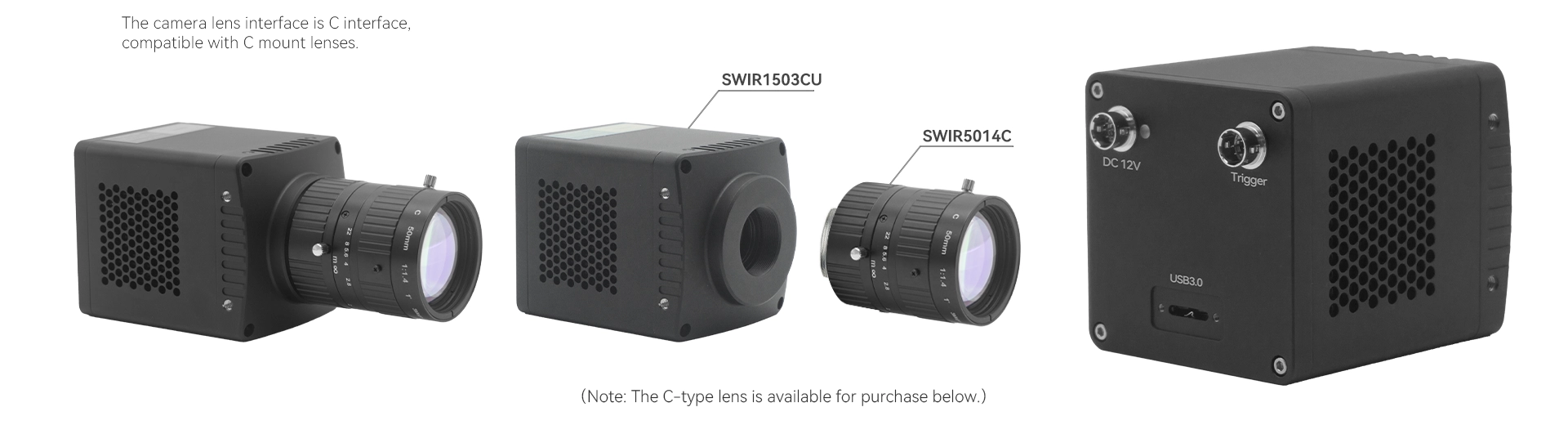

| Lens mount | C-mount |
| Software | AttosView / SDK |
| Certification | CE, FCC |


| Parameter | Specification |

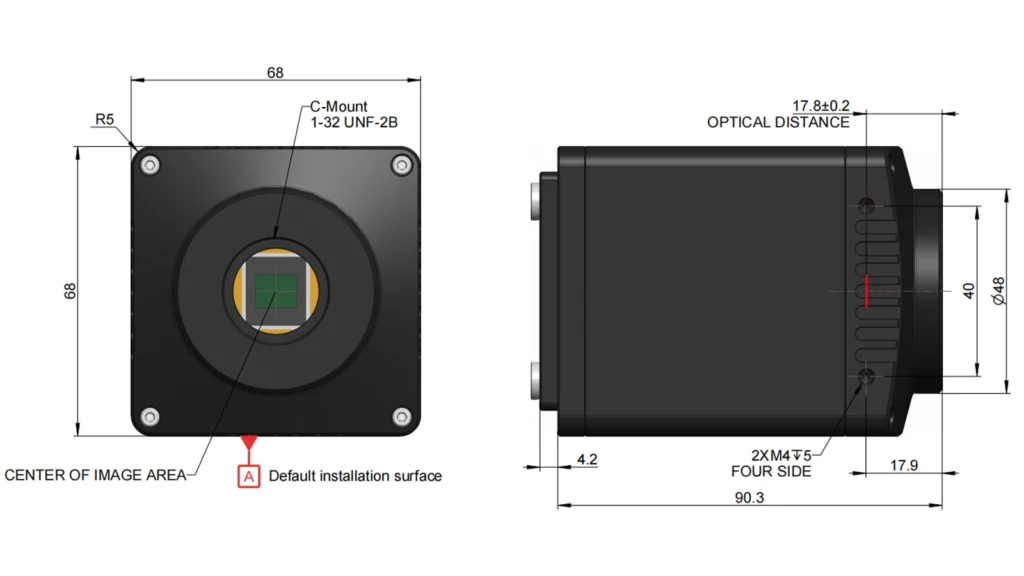

| Size | 68*68*90.3mm |
| Mount | C mount |

| Item | Specification |
| 1 | DC 12V power |
| 2 | External IO connection port |
| 3 | USB3.0 port |
| Table1: USB port, GigE port, CL port refrigerated camera pin signal definitions | |||||
![]() |
Color | Pin | Signal | Description of the signal | |
| White | 1 | GDN | Direct-coupled signal ground | ||
| Red | 2 | 12V | 12VDC power input | ||
| Blue | 3 | OPTO_GND | Opto-isolated signal ground | ||
| Yellow | 4 | DIR_GPIO0 | Direct-coupled General Purpose I/O (Software configurable input/output) (line2) | ||
| Black | 5 | DIR_GPIO1 | Direct-coupled General Purpose I/O (Software configurable input/output) (line3) | ||
| Green | 6 | OPTO_IN | Opto-isolated input signal (line0) | ||
| Pink | 7 | OPTO_OUT | Opto-isolated output signal (line1) | ||


The electrical characteristics of the opto-isolated output (external voltage 5V, external resistor 1K) are shown in Table 2.
| Table 2: Opto-isolated output signal’s electrical characteristics | ||
| Parameter name | Parameter notation | Parameter value |
| Output logic low | VL | 742mV |
| Output logic high | VH | 4.134V |
| Output rise time | TR | 4us |
| Output fall time | TF | 1.8us |
| Output rise delay | TDR | 12us |
| Output fall delay | TDF | 2us |
The output of the corresponding output current and VL when using different voltages and resistors in externalcircuit are shown in Table 3.
| Table 3:Opto-isolated output logic’s low levels parameters | |||
| External voltage | External resistor | VL | Output current |
| 3.3V | 1KΩ | 510mV | 2.82mA |
| 5V | 1KΩ | 742mV | 4.31mA |
| 12V | 2.4KΩ | 795mV | 4.68mA |
| 24V | 4.7KΩ | 850mV | 4.97mA |
1. Line2/line3 is set as input pin
Logic 0 input level: 0~0.6VDC (DIR_GPIO0/DIR_GPIO1 pins)
Logic 1 input level: 2.0~24VDC (DIR_GPIO0/DIR_GPIO1 pins)
Maximum input current: 25mA
When the input level is between 0.6V and 2.0V, the circuit action state is uncertain, please avoid the input voltage range working in this range.
To prevent damage to the GPIO pins, please connect the pin GND first, and then input voltage to the Line2 pin.
Input rise delay (TDR): 0.02us
Input fall delay (TDF): 0.02us
2. Line2/line3 are set as output pins
The maximum current allowed through this pin is 25mA.
The external pull-up voltage is 5V, the pull-up resistor is 1KΩ, and the GPIO is configured to output the logic level and electrical characteristics as shown in Figure 4.


When the ambient temperature is 25 degrees Celsius, the relationship between the external voltage, resistance and low-level voltage output is shown in Table 4.
| Table 4:Non-isolated output Logic’s low level parameters | ||
| External voltage | External resistor | VL(GPIO) |
| 3.3V | 1KΩ | 0.11V |
| 5V | 1KΩ | 0.167V |
| 12V | 2.4KΩ | 0.184V |
| 24V | 4.7KΩ | 0.385V |
| Table 5: Non-isolated output electrical characteristics | ||
| Parameter name | Parameter notation | Parameter value |
| Output rise time | TR | 0.08us |
| output fall time | TF | 0.02us |
| Output rise delay | TDR | 0.1us |
| Output fall delay | TDF | 0.04u |
ascamsdk support a variety of APIs, including: Native C/C++,.NET/C#/VB.NET, Python, Java, DirectShow, Twain, LabView, Matlab, etc. Compared with other APIs, Native C/C++ API as a low-level API is characterized by using pure C/C++ development without relying on other runtime libraries. The interface is simple and the control is flexible.
AttosTek provides extensive third-party software support for its UV-Vis cameras and SWIR cameras, facilitating rapid integration and use in various development environments. This includes SDK and demo programs for LabVIEW and MATLAB, as well as DirectShow drivers, Micromanager, and TWAIN SDK drivers. These features enable seamless compatibility with mainstream development environments and third-party software, greatly simplifying the workflow for system integration and secondary development.
|
AttosView Recommended System Requirements |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 /11(32 & 64 bit), Mac OSX, Linux |
|
Processor (CPU) |
≥3.0 GHz Intel Core i5 or Higher |
|
Memory (RAM) |
≥8 GB |
|
Hard Drive |
NVMe Solid State Drive (SSD) |
|
Graphics Card |
Dedicated Adapter with ≥256 MB RAM |
|
Motherboard |
USB 3.0 (-USB) Cameras: Integrated Intel USB 3.0 Controller or One Unused One Unused PCle3.0*16 Slot |
|
Connectivity |
Internet Connectivity for Driver Installation |

|
Function |
Function description |
|
Operating mode |
Operating mode: video mode or trigger mode |
|
Denoise |
The camera hardware incorporates denoise |
|
Automatic exposure |
Automatic exposure or manual exposure function |
| Gain |
HG, MG, LG 3 gain modes |
|
Frame rate |
Supports precise frame rate control |
|
ROI |
Supports single-zone ROI with a maximum frame rate of 8000fps after ROI |
| Flip |
Supports Vertical/horizontal flip |
| Custom dark field correction |
The hardware supports up to 12 groups of user-defined dark field correction image functions |
|
Timestamp function |
Timestamps can be turned on or off. After the timestamp function is enabled, the low 8bits of 1-8 pixels, 9-16 pixels, and 17-24 pixels will be modified to: 0-7: frame number; 8-15: Frame time; 16-23: trigger signal count |
|
Firmware update |
Supports firmware online update |
|
Pipette function |
Supports the display of the gray value of the mouse pixel position |
|
Histogram display |
Supports histogram display and statistics |
| Plane line function |
Supports the function of viewing surface data |
|
Regional gray statistics |
Support the average gray statistics function of user-defined areas |
|
Cooling system |
1) The cooling system of the camera uses a built-in TEC cooling chip for the sensor, with external heat dissipation structure and fan auxiliary heat dissipation, the working temperature can be adjusted to a specific value, the effective cooling temperature can be lower than the ambient temperature of 40℃, and the high-efficiency cooling system ensures extremely low dark current level; |
Q1 : What's the difference between the SWIR1503CU-2.2 camera and a regular 900–1700 nm shortwave infrared camera? Which one should I choose?
The main difference lies in the spectral response limit. A standard InGaAs SWIR camera has an upper response limit of 1700 nm, whereas the SWIR1503CU-2.2 extends this limit to 2200 nm by increasing the indium content in the InGaAs chip and narrowing the material’s bandgap, covering the full 1200–2200 nm imaging range. If your application is focused below 1700 nm, like regular silicon wafer inspection or 1550 nm laser spot analysis, the standard version is sufficient and cheaper. But if you’re dealing with materials that have characteristic absorption peaks in the 1700–2200 nm range, or you want one camera to cover a wider range of applications, the SWIR1503CU-2.2 is the better choice.
Q2 : Which applications require using the 1700–2200 nm extended wavelength band for detection?
Moisture detection: Water has strong absorption peaks around 1450 nm and 1900 nm. This camera can clearly visualize moisture content, which is useful for agriculture and food quality checks.
Mineral analysis: Clay minerals have hydroxyl vibration bands at 2200 nm, a key diagnostic absorption feature for mineral identification. The SWIR1503CU-2.2 can capture clear spectral features, enabling efficient mineral analysis.
Material sorting: In recycling, it can distinguish plastics, cotton, and leather, allowing for automated sorting.Q3 : Which systems does the AttosView host software support, and what professional imaging features does it have built-in?
System Compatibility: Only Windows 7/10/11 64-bit systems;
Built-in Full Features: Software and hardware dual trigger modes, auto/manual exposure, three-level gain switching, image vertical/horizontal flip, up to 12 sets of custom dark field correction, real-time histogram, profile line grayscale curve, pixel grayscale reading, custom area grayscale statistics, frame timestamp marking, hardware noise reduction, firmware online upgrade; supports batch recording of Raw/RGB images and is compatible with spectral data acquisition.Q4 : There are a lot of white spots in the camera's image. What’s the reason, and how can it be handled?
Having many white spots in the image is usually related to the dark current of the 2200 nm extended InGaAs sensor. This camera covers 1200–2200 nm, with a higher indium content in the InGaAs and a narrower material bandgap, so the dark current and hot pixels are generally more noticeable than in the 900–1700 nm version.
Make sure the white spots aren’t caused by dust or smudges on the lens or camera window. When using it, check if the TEC cooling is on, as cooling can reduce dark noise. If TEC cooling is on and set to the lowest temperature of -50°C, see if your environment allows you to increase the illumination, open the aperture more, and reduce the exposure time.
0.33 MP SWIR1503 Series SWIR Industria Camera with InGaAs Sensor
SWIR1503CU-2.2
900-2200nm InGaAs CMOS Camera, 0.33 MP 15µm Pixels, USB 3.0 Interface
Optional accessories – lenses
AttosTek offers C-mount SWIR fixed focal lenses with a spectral range of 900–2500 nm for extended-waveband cameras, fully covering the spectral response of these cameras. Built with a standard C-mount interface, the series features 25 mm and 35 mm focal length options. Users can select the appropriate model flexibly based on requirements for field of view, working distance and resolution. Paired with extended-waveband cameras, these lenses support applications operating above 1700 nm, such as laser inspection and beam analysis, moisture measurement, and material sorting.
SWIR2520C-2.5
900-2500nm spectral range, 25mm fixed focus, F2.0 aperture, C-mount SWIR lens
SWIR5020C-2.5
900-2500nm spectral range, 50mm fixed focus, F2.0 aperture, C-mount SWIR lens
