1.3 MP – 4 MP 200-1100nm Uncooled Camera
| Features |
| 1.3 MP-4 MP resolution, 200-1100nm spectral range |
| Pixel sizes available: 6.5 µm / 9.76 µm / 11 µm |
| Back-illuminated (BSI) sensor |
| Rolling shutter |

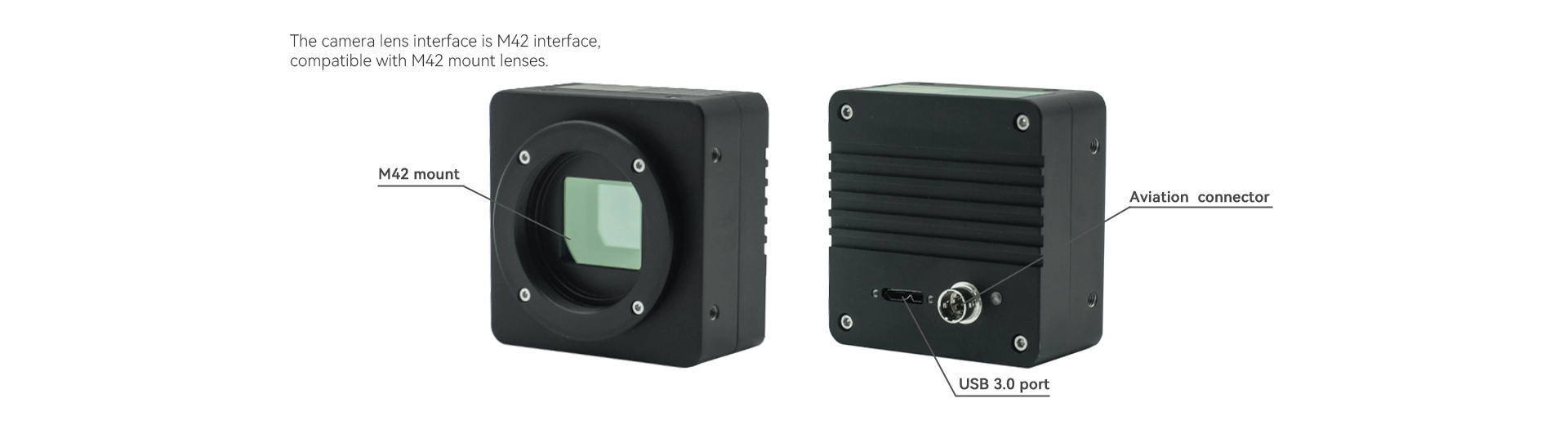

| Optical interface: C-mount / M42 mount |
| Supports external I/O trigger control |
| CE/FCC Cerifcation，Multi-platform SDK |
The SDK supports development languages such as C/C++, C #/VB.net, Python, Java, etc,
Third-party support including LabVIEW, MATLAB, Micro-Manager, DirectShow, and TWAIN.
| Common Specifications | |
| Model | UVISI091BU, UVISI064BU-NC, UVISI114BU-NC |
| Sensors | GPixel BSI |
| Color Type | Monochrome |
| Gain Range | 1x-8x |
| Shutter mode | Rolling shutter |
| Binning mode | Software2×2, 3×3, 4×4, Hardware 2×2 |
| Data interface | USB3.0（USB3.1 GEN1） |
| Digital I/O | 1 channel of optically isolated input, 1 channel of optically isolated output, 2 channels of non-isolated input/output port |
| Working temperature | -10~50℃ |
| Storage temperature | -30~70℃ |
| Humidity | 20%-80%, no condensation |

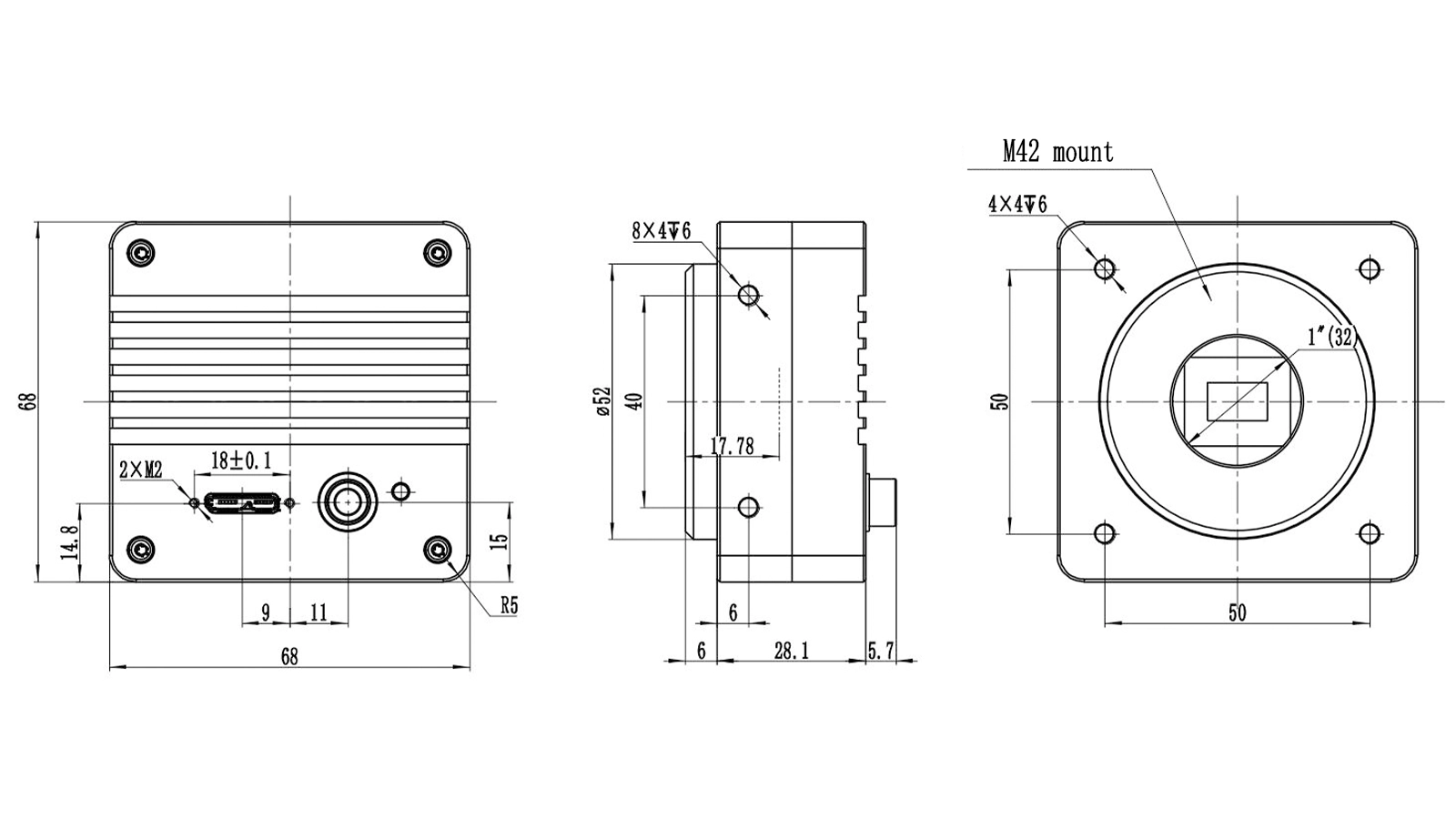

| Size | 68mmx68mmx28.1mm |
| Weight | 270g |
| Software | AttosView / SDK |
| Platform and architecture | Win32/WinRT/Linux/macOS/Android；x86/x64/ARM HF/ARM EL/ARM64 |
| Certification | CE, FCC |

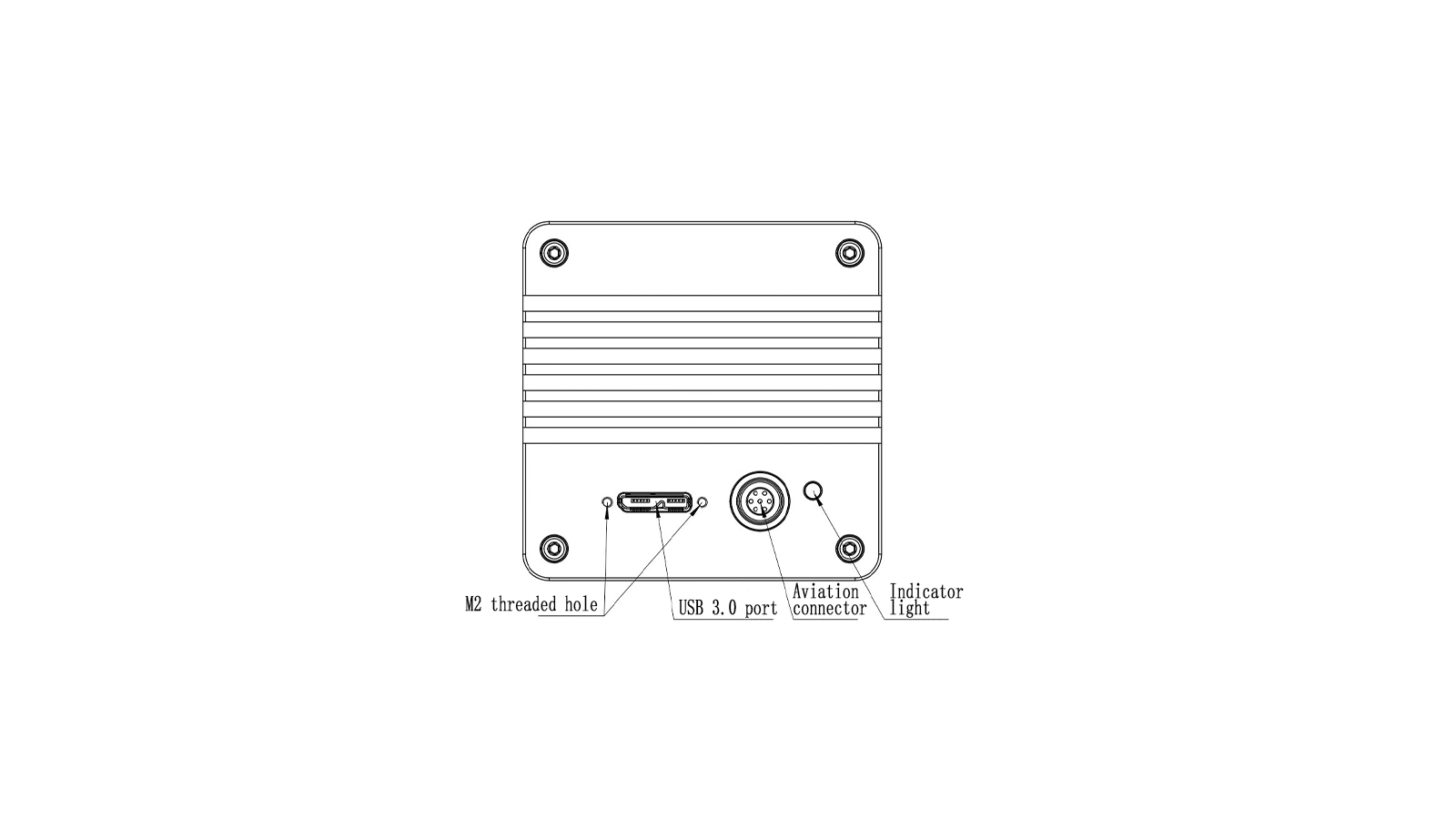

| Table1: USB port, GigE port, CL port refrigerated camera pin signal definitions | |||||
 |
Color | Pin | Signal | Description of the signal | |
| White | 1 | GDN | Direct-coupled signal ground | ||
| Red | 2 | 12V | 12VDC power input | ||
| Blue | 3 | OPTO_GND | Opto-isolated signal ground | ||
| Yellow | 4 | DIR_GPIO0 | Direct-coupled General Purpose I/O (Software configurable input/output) (line2) | ||
| Black | 5 | DIR_GPIO1 | Direct-coupled General Purpose I/O (Software configurable input/output) (line3) | ||
| Green | 6 | OPTO_IN | Opto-isolated input signal (line0) | ||
| Pink | 7 | OPTO_OUT | Opto-isolated output signal (line1) | ||
Logic 0 input level: 0~2.2VDC (OPTO_IN pin)
Logic 1 input level: 3.3~24VDC (OPTO_IN pin)
Maximum input current:30mA
When the input level is between 2.2V and 3.2V, the circuit operation state is uncertain, please do not let SWIR camera work within this voltage range.
Input rise delay (TDR): 6us
Input fall delay (TDF): 6us
The opto-isolated output maximum current is 30mA.
The electrical characteristics of the opto-isolated output (external voltage 5V, external resistor 1K) are shown in Table 2.
| Table 2： Opto-isolated output signal’s electrical characteristics | ||
| Parameter name | Parameter notation | Parameter value |
| Output logic low | VL | 742mV |
| Output logic high | VH | 4.134V |
| Output rise time | TR | 4us |
| Output fall time | TF | 1.8us |
| Output rise delay | TDR | 12us |
| Output fall delay | TDF | 2us |
The output of the corresponding output current and VL when using different voltages and resistors in externalcircuit are shown in Table 3.
| Table 3：Opto-isolated output logic’s low levels parameters | |||
| External voltage | External resistor | VL | Output current |
| 3.3V | 1KΩ | 510mV | 2.82mA |
| 5V | 1KΩ | 742mV | 4.31mA |
| 12V | 2.4KΩ | 795mV | 4.68mA |
| 24V | 4.7KΩ | 850mV | 4.97mA |
1. Line2/line3 is set as input pin
Logic 0 input level: 0~0.6VDC (DIR_GPIO0/DIR_GPIO1 pins)
Logic 1 input level: 2.0~24VDC (DIR_GPIO0/DIR_GPIO1 pins)
Maximum input current: 25mA
When the input level is between 0.6V and 2.0V, the circuit action state is uncertain, please avoid the input voltage range working in this range.
To prevent damage to the GPIO pins, please connect the pin GND first, and then input voltage to the Line2 pin.
Input rise delay (TDR): 0.02us
Input fall delay (TDF): 0.02us
2. Line2/line3 are set as output pins
The maximum current allowed through this pin is 25mA.
The external pull-up voltage is 5V, the pull-up resistor is 1KΩ, and the GPIO is configured to output the logic level and electrical characteristics as shown in Figure 4.
When the ambient temperature is 25 degrees Celsius, the relationship between the external voltage, resistance and low-level voltage output is shown in Table 4.
| Table 4：Non-isolated output Logic’s low level parameters | ||
| External voltage | External resistor | VL(GPIO) |
| 3.3V | 1KΩ | 0.11V |
| 5V | 1KΩ | 0.167V |
| 12V | 2.4KΩ | 0.184V |
| 24V | 4.7KΩ | 0.385V |
| Table 5: Non-isolated output electrical characteristics | ||
| Parameter name | Parameter notation | Parameter value |
| Output rise time | TR | 0.08us |
| output fall time | TF | 0.02us |
| Output rise delay | TDR | 0.1us |
| Output fall delay | TDF | 0.04u |
AttosView support all Attostek UV-VIS and SWIR cameras, it is a professional software that integrates camera control, image acquisition and processing, image browsing and analysis functions.
AttosView has the following characteristics:
- x86: XP SP3 and above; CPU support SSE2 and above
- x64: Win7 and above
ascamsdk support a variety of APIs, including: Native C/C++,.NET/C#/VB.NET, Python, Java, DirectShow, Twain, LabView, Matlab, etc. Compared with other APIs, Native C/C++ API as a low-level API is characterized by using pure C/C++ development without relying on other runtime libraries. The interface is simple and the control is flexible.
- x86: XP SP3 and above; the CPU needs to support at least the SSE2 instruction set.
- x64: Win7 and above.
- arm: Win10 and above.
- arm64: Win10 and above.
AttosTek provides extensive third-party software support for its UV-Vis cameras and SWIR cameras, facilitating rapid integration and use in various development environments. This includes SDK and demo programs for LabVIEW and MATLAB, as well as DirectShow drivers, Micromanager, and TWAIN SDK drivers. These features enable seamless compatibility with mainstream development environments and third-party software, greatly simplifying the workflow for system integration and secondary development.
Support all Attostek UV-VIS and SWIR cameras.
Click the button below to download the AttosView software.
|
AttosView Recommended System Requirements |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 /11(32 & 64 bit), Mac OSX, Linux |
|
Processor (CPU) |
≥3.0 GHz Intel Core i5 or Higher |
|
Memory (RAM) |
≥8 GB |
|
Hard Drive |
NVMe Solid State Drive (SSD) |
|
Graphics Card |
Dedicated Adapter with ≥256 MB RAM |
|
Motherboard |
USB 3.0 (-USB) Cameras: Integrated Intel USB 3.0 Controller or One Unused One Unused PCle3.0*16 Slot |
|
Connectivity |
Internet Connectivity for Driver Installation |
Q1 : Differences in application scenarios for HCG/LCG/HDR gain modes?
HCG High Gain: Extremely low readout noise, suitable for weak fluorescence, trace UV spectroscopy, and low-light static samples; smaller full-well capacity, easily saturated by strong light.
LCG Low Gain: Super large full-well capacity, suppresses overexposure in UV lithography and high-power laser pixels, commonly used in bright-field industrial inspection.
HDR (only supported by UVISI091BU-NC/UVISI064BU-NC): Combines high and low gain, preserving details in both bright and weak light, specialized for samples with mixed brightness and interference fringe imaging.
Q2 : Difference between 11μm / 9.76μm / 6.5μm pixel options?
UVISI114BU-NC (11μm max pixel): Has the largest single-pixel photosensitive area, peak QE 95.3%, best for weak fluorescence, trace spectroscopy, and low-light signal-to-noise ratio; ideal for low-light research, but the downside is lower spatial resolution.
UVISI091BU-NC (9.76μm balanced pixel): Balances sensitivity and resolution, a good choice for general labs, standard fluorescence, or small industrial quality inspections on a budget.
UVISI064BU-NC (6.5μm small pixel): Ultra-high spatial resolution, perfect for lithography micro-defect detection, high-magnification microscopy, and precision pattern inspection; under the same lighting, its low-light signal-to-noise ratio is weaker than the two larger-pixel models.
Q3 : Choosing between a non-cooled BSI and a TEC-cooled camera?
Advantages of non-cooled: small size, light weight, low power consumption, no preheating needed when turned on, lower price, and portable/integration-friendly; suitable for short sequences (<60s) in offline experiments or small production lines.
Drawbacks of non-cooled: dark current increases with temperature, and weak light imaging is noisy for long sequences.
1.3 MP – 4 MP Monochrome Uncooled Camera
| Model | UVISI091BU-NC | UVISI064BU-NC | UVISI114BU-NC |
| Sensor model | GPixel GLUX9701BSI | GPixel GSENSE2020BSI | GPixel GSENSE400BSI |
| pixel size | 9.76 µm x 9.76 µm | 6.5 µm x 6.5 µm | 11 µm × 11 µm |
| Target size | 1″ | 1.2” | 2.0” |
| Frame Rate | 30fps@1280 x 1024, 30fps@640 x 512 | 32fps@2048 x 2048, 32fps@1024 x 1024 | 37fps@2048 × 2048, 37fps@1024 × 1024 |
| Conversion Gain | HCG(16x): 0.26 / LCG(1.5x): 12.98 / HDR: 0.32 (e-/ADU) | HCG: 2.69 / LCG: 15.49 / HDR:0.55 (e-/ADU) | HCG: 2.33 / LCG: 19.93 (e-/ADU) |
| Readout Noise | HCG(16x): 1.5 / LCG(1.5x): 22.36 / HDR: 1.83 (e-) | HCG:5.4 / LCG:21.02 / HDR:2.89 (e-) | HCG: 3.57 / LCG: 31.26 (e-) |
| Full Well | HCG(16x): 1.05 / LCG(1.5x): 51.88 / HDR: 21.03 (ke-) | HCG: 12.1 / LCG: 46.4 / HDR:35.8 (ke-) | HCG: 46.4 / LCG: 35.8 (ke-) |
| Dynamic Range | HCG(16x): 56.9 / LCG(1.5x): 67.3 / HDR: 81.2 (dB) | HCG: 66.8 / LCG: 66.7 / HDR: 81.6 (dB) | HCG: 68.3 / LCG: 68.1 (dB) |
| SNR | HCG(16x): 30.2 / LCG(1.5x): 47.2 / HDR: 43.2 (dB) | HCG: 40.8 / LCG: 46.7 / HDR: 45.5 (dB) | HCG: 39.8 / LCG: 49.1 (dB) |

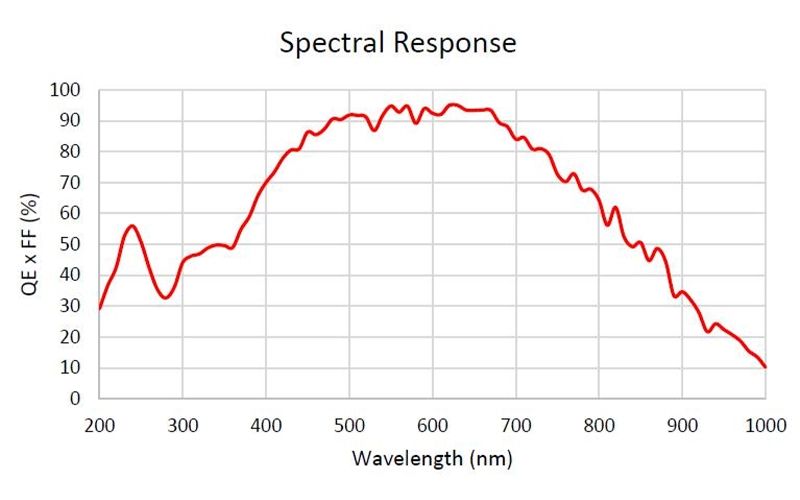

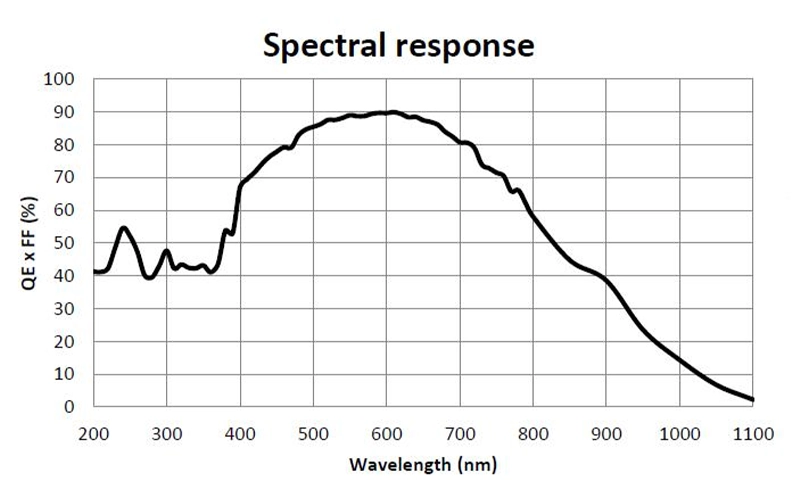

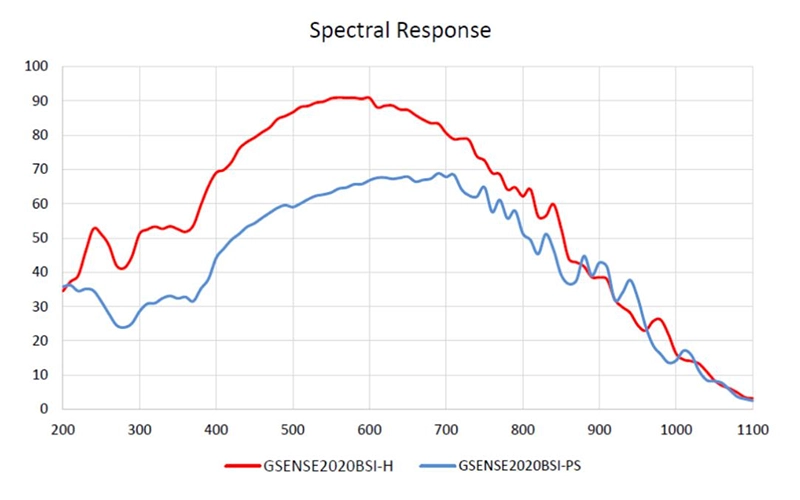

| QE | 89%@610nm | 93.7%@550nm | 95.3%@560nm |
| Sensitivity | 2.57×10⁸ (e-/((W/m2).s)) | 1.1×10⁸ (e-/((W/m2).s)) | 3.25×10⁸ (e-/((W/m2).s)) |
| Dark current | 40e-/s/pix | 80e-/s/pix | 345e-/s/pix |
| Exposure time range | 63µs-60sec | 12µs-60sec | 21us-60sec |
| Power consumption | 1.2W | <2.3W | 2.25W |
| Data Format | 8-bit / 12-bit / HDR16 | 8-bit / 12-bit | |
| Lens mount | C-mount | M42 Interface | |
UVISI091BU-NC
1.3 MP BSI sCMOS Camera with 6.5μm Pixels, Uncooled, USB 3.0 Interface
UVISI064BU-NC
4 MP BSI sCMOS Camera with 6.5μm Pixels, Uncooled, USB 3.0 Interface
UVISI114BU-NC
4 MP BSI sCMOS Camera with 11μm Pixels, Uncooled, USB 3.0 Interface
Optional accessories – lenses
AttosView offers an optional YLGD series continuous zoom optical system for visible light cameras, designed specifically for high-precision imaging scenarios. The YLGD series continuous zoom optical system series provides multiple focal length options and is suitable for various professional applications such as security surveillance, industrial vision inspection, and scientific observation, ensuring excellent image clarity, operational flexibility, and environmental adaptability. For inquiries, please contact sales@attostek.com
