0.5 MP – 4 MP Big Pixels sCMOS Camera

  • Featuring large pixels and rolling shutter, delivering exceptional low-light performance
  • Precise temperature control with a temperature difference ΔT ≈ 40 °C (below ambient)
  • USB3.0 interface ensuring high speed data transmission

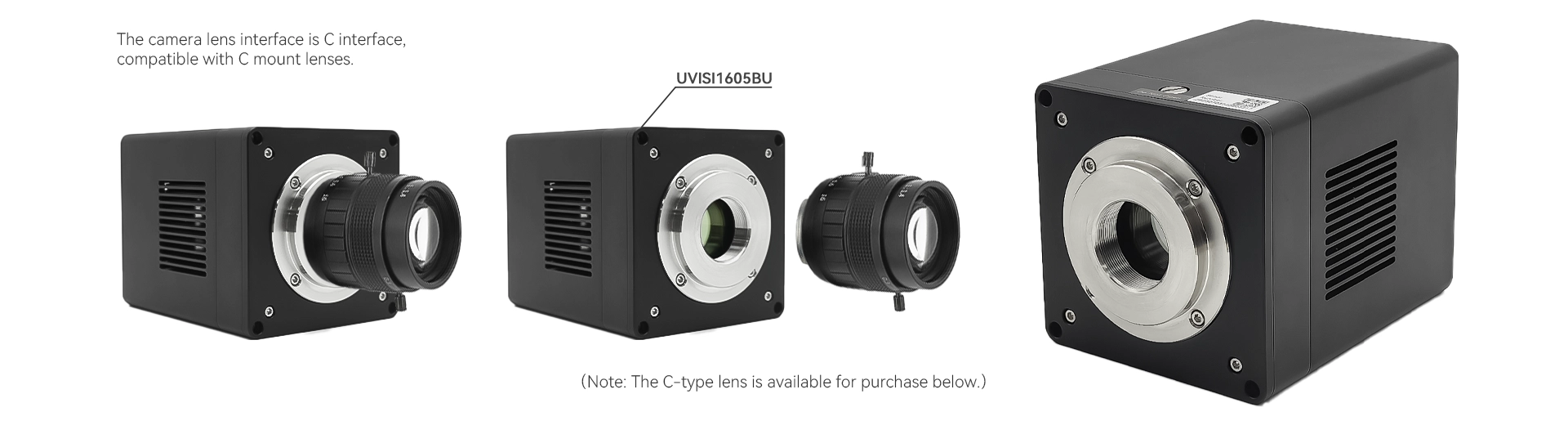

As Uvisi1605bu Cmos Uv Vis Cameras
High-sensitivity Monochrome Scientific Camera
Featuring a large-format, back-illuminated (BSI) sensor with pixel sizes ranging from 0.5 to 4.2 megapixels, this camera excels in in low-light environments. The BSI structure, combined with the large-pixel design, achieves high quantum efficiency. TEC cooling and anti-fogging structure ensures consistent image quality by maintaining a stable sensor temperature.
Features
 0.5 MP – 4 MP resolution , large pixels
Large-format, back-illuminated (BSI) sensor
USB3.0 (USB3.1 GEN1) date interface
TEC cooling with anti-condensation structure
Rolling shutter
Bit Depth: 8-bit/HDR 16-bit
Supports external I/O trigger control
CE/FCC Cerifcation，Multi-platform SDK
Software
AttosView supports Windows® 7 (64-bit),10 and 11 operating systems. The SDK supports development languages such as C/C++, C #/VB.net, Python, Java, etc, Third-party support including LabVIEW, MATLAB, Micro-Manager, DirectShow, and TWAIN.
Images Acquired by the UV-VIS Camera
This high-sensitivity camera delivers superior image quality in low-light and high-dynamic-range applications. The camera is optimized for a wide spectrum of uses, including fluorescence imaging, UV imaging, spectral analysis, materials science analysis, as well as semiconductor inspection and high-dynamic-range scenarios.
Common Specifications
Model UVISI1605BU, UVISI091BU, UVISI114BU
Color Type Monochrome
Gain Range 1x-50x
Shutter mode Rolling shutter
Binning mode Software2×2, 3×3, 4×4, Hardware 2×2
Data interface USB3.0（USB3.1 GEN1）
Digital I/O 1 channel of optically isolated input,
1 channel of optically isolated output,
2 channels of non-isolated input/output port
Data Format 8-bit / HDR16bit
Working temperature -10~50℃
Storage temperature -30~70℃
Humidity 20%-80%, no condensation
Software AttosView / SDK
Platform and architecture  Win32/WinRT/Linux/macOS/Android；X86/X64/armhf/armel/arm64
Certification CE, FCC
UVISI1605BU光谱响应曲线

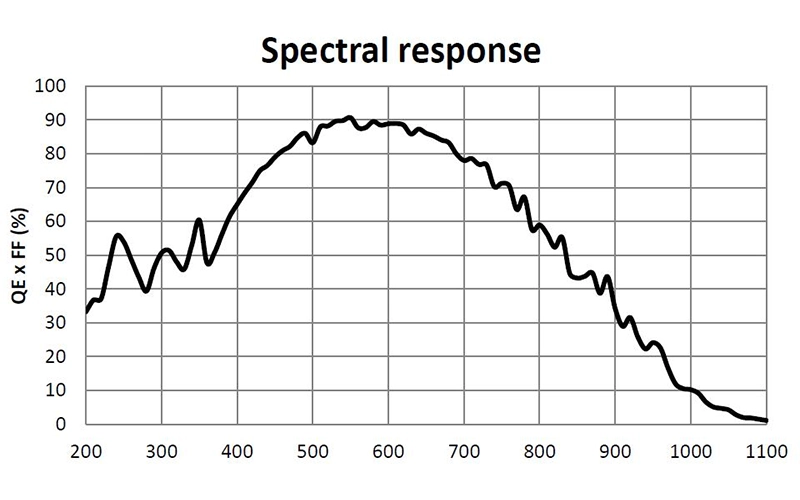

UVISI1605BU spectral response curve

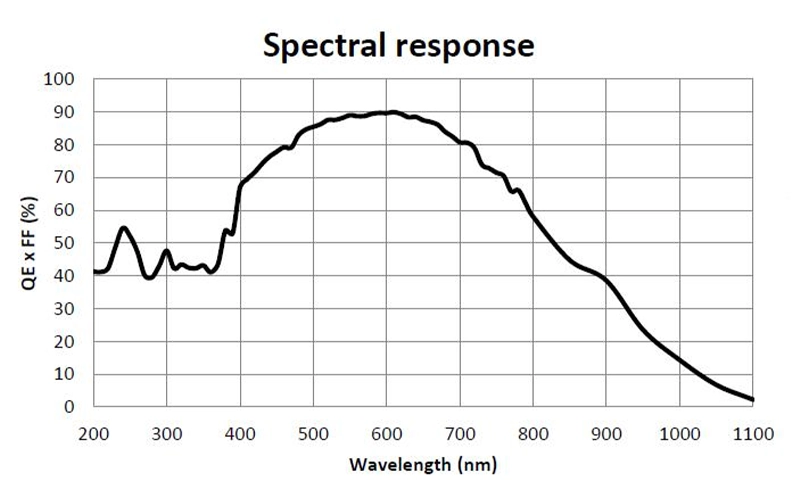

UVISI091BU光谱响应曲线
UVISI091BU spectral response curve

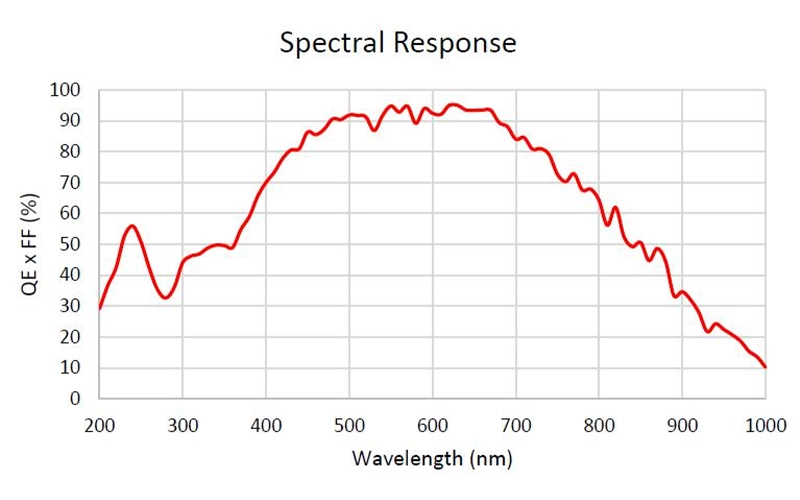

UVISI114BU光谱响应曲线
UVISI114BU spectral response curve
Camera Dimensions

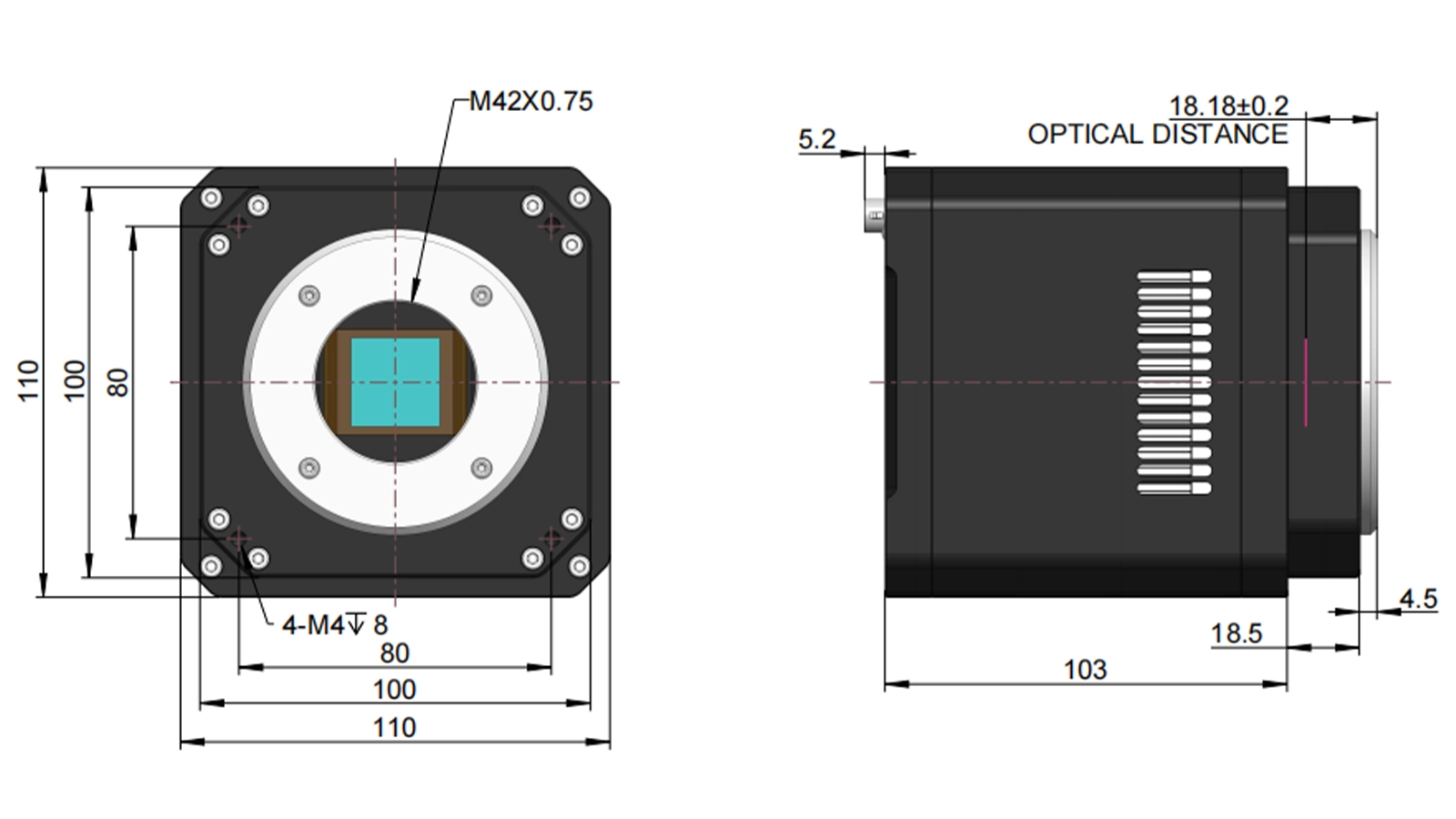

UVISI114BU Camera Dimensions
As Uvisi114bu Dimensions
Parameter Specification
Dimension 110mm×110mm×121.5mm
Weight 1.7kg
Lens interface M42 mount

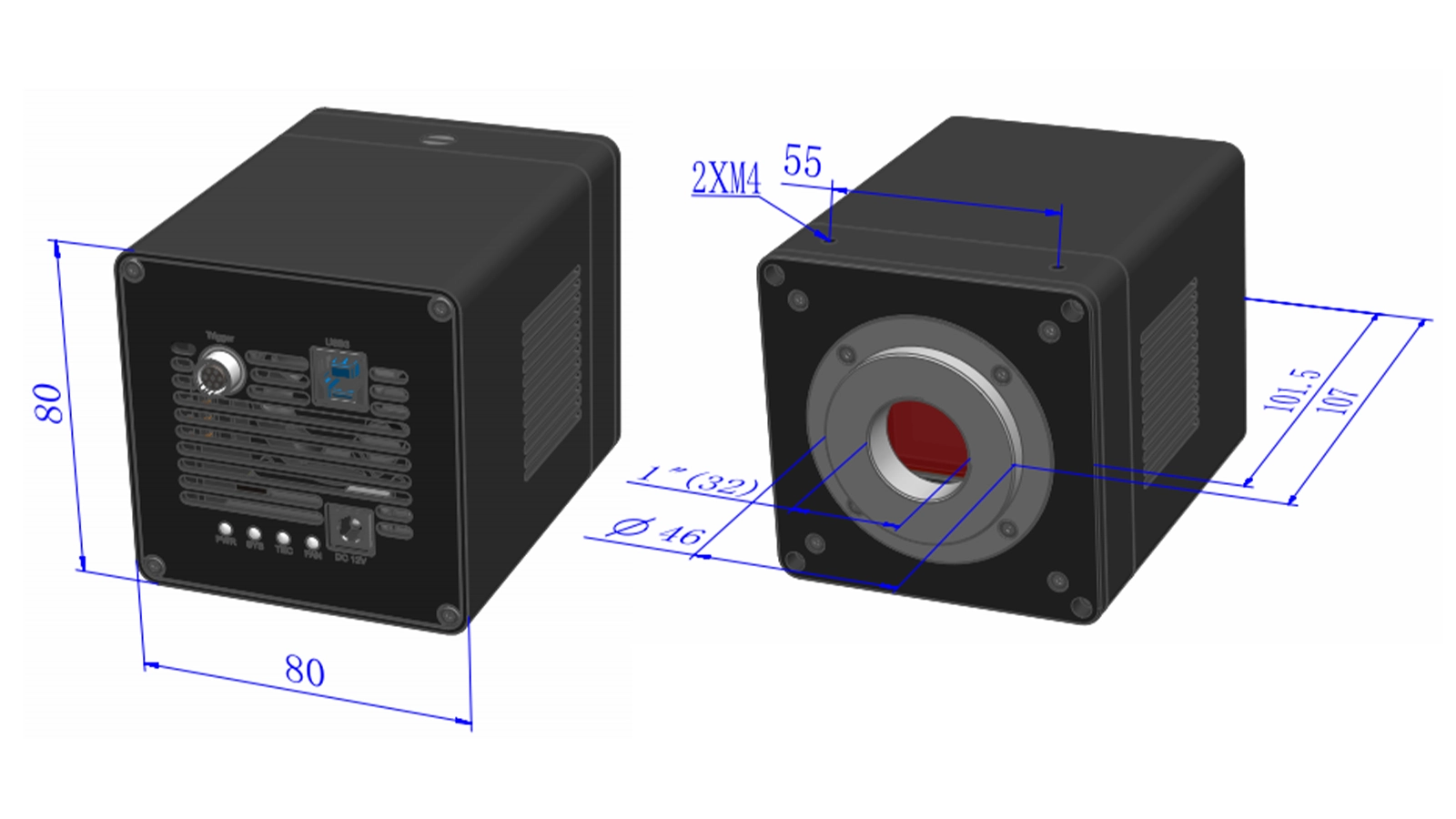

UVISI1605BU & UVISI091BU Camera Dimensions
As Uvisi1605 091bu Dimensions
Parameter Specification
Dimension 80mm × 80mm × 101.5mm
Weight 860g
Lens interface C-mount
Camera Port

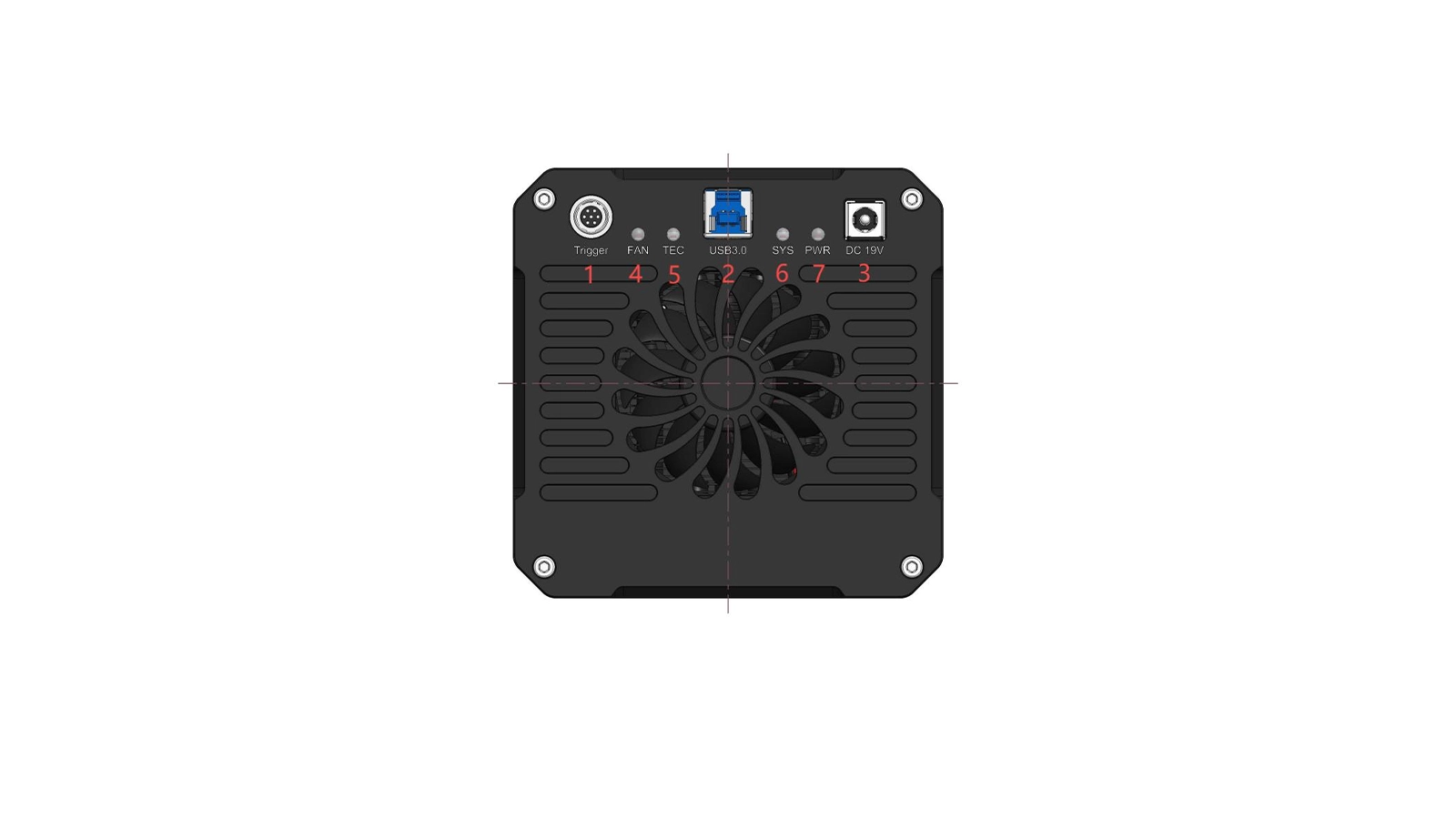

The ports of the UVISI114BU camera
As Uvisi114bu Port
UVISI114BU Camera interface definition
Item Specification
1 Trigger 7PIN
2 USB 3.0/ USB 2.0 port
3 DC 19V power port
4 FAN LED indicators
5 TEC LED indicators
6 System LED indicators
7 Power LED indicators

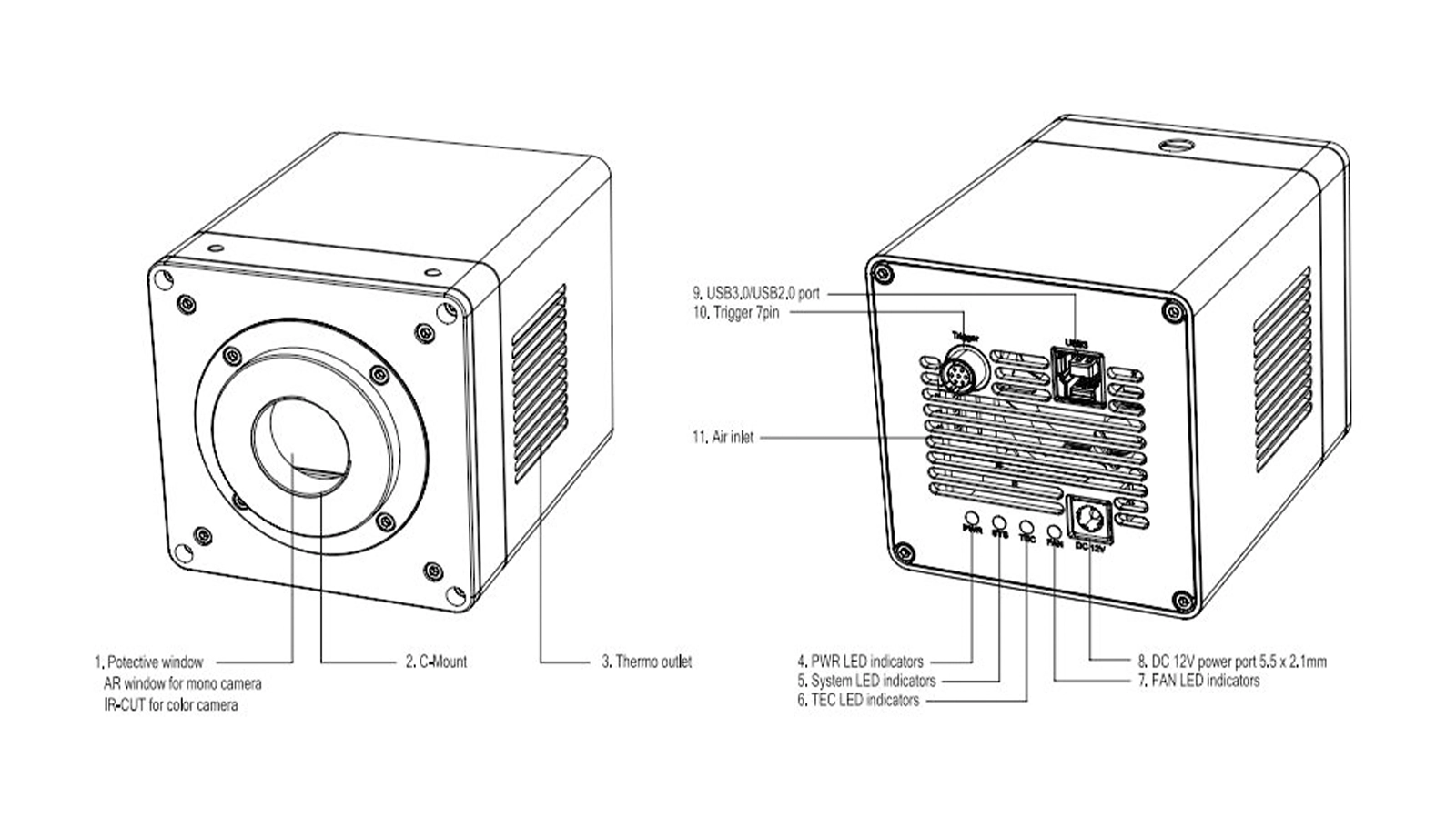

The ports of the UVISI1605BU & UVISI091BU camera
As Uvisi1605 091bu Port
UVISI1605BU & UVISI091BU Camera interface definition
Item  Specification
1 Protective window: AR window for mono camera;
IR-CUT for color camera
2 C mount
3 Thermo outlet
4 Power LED indicators
5 System LED indicators
6 TEC LED indicators
7 FAN LED indicators
8 DC 12V power port
9 USB 3.0/ USB 2.0 port
10 Trigger 7PIN
11 Air inlet
Camera Pin Signals
Table1: USB port, GigE port, CL port refrigerated camera pin signal definitions
Swir051 Series Camera Pin Signal Color Pin Signal Description of the signal
White 1 GDN Direct-coupled signal ground
Red 2 12V 12VDC power input
Blue 3 OPTO_GND Opto-isolated signal ground
Yellow 4 DIR_GPIO0 Direct-coupled General Purpose I/O (Software configurable input/output) (line2)
Black 5 DIR_GPIO1 Direct-coupled General Purpose I/O (Software configurable input/output) (line3)
Green 6 OPTO_IN Opto-isolated input signal (line0)
Pink 7 OPTO_OUT Opto-isolated output signal (line1)
I/O electrical characteristics
Opto-isolated input circuit (line0)

Logic 0 input level: 0~2.2VDC (OPTO_IN pin)
Logic 1 input level: 3.3~24VDC (OPTO_IN pin)
Maximum input current:30mA

When the input level is between 2.2V and 3.2V, the circuit operation state is uncertain, please do not let SWIR camera work within this voltage range.

Input rise delay (TDR): 6us

Input fall delay (TDF): 6us

Figure 5：input Logic Levels
Figure 1：Input logic levels
Opto-isolated output circuit (line1)

The opto-isolated output maximum current is 30mA.

Figure 8：output Logic Levels
Figure 2: Output logic levels

The electrical characteristics of the opto-isolated output (external voltage 5V, external resistor 1K) are shown in Table 2.

Table 2： Opto-isolated output signal’s electrical characteristics
Parameter name Parameter notation Parameter value
Output logic low VL 742mV
Output logic high VH 4.134V
Output rise time TR 4us
Output fall time TF 1.8us
Output rise delay TDR 12us
Output fall delay TDF 2us

The output of the corresponding output current and VL when using different voltages and resistors in externalcircuit are shown in Table 3.

Table 3：Opto-isolated output logic’s low levels parameters
External voltage External resistor VL Output current
3.3V 1KΩ 510mV 2.82mA
5V 1KΩ 742mV 4.31mA
12V 2.4KΩ 795mV 4.68mA
24V 4.7KΩ 850mV 4.97mA
Input and output I/O circuit (line2/line3)

1. Line2/line3 is set as input pin
Logic 0 input level: 0~0.6VDC (DIR_GPIO0/DIR_GPIO1 pins)
Logic 1 input level: 2.0~24VDC (DIR_GPIO0/DIR_GPIO1 pins)
Maximum input current: 25mA
When the input level is between 0.6V and 2.0V, the circuit action state is uncertain, please avoid the input voltage range working in this range.

To prevent damage to the GPIO pins, please connect the pin GND first, and then input voltage to the Line2 pin.
Input rise delay (TDR): 0.02us
Input fall delay (TDF): 0.02us

2. Line2/line3 are set as output pins
The maximum current allowed through this pin is 25mA.

The external pull-up voltage is 5V, the pull-up resistor is 1KΩ, and the GPIO is configured to output the logic level and electrical characteristics as shown in Figure 4.

Figure 9：input Logic Levels
Figure 3: Input logic levels
Figure 10：output Logic Levels
Figure 4: Output logic levels

When the ambient temperature is 25 degrees Celsius, the relationship between the external voltage, resistance and low-level voltage output is shown in Table 4.

Table 4：Non-isolated output Logic’s low level parameters
External voltage External resistor VL(GPIO)
3.3V 1KΩ 0.11V
5V 1KΩ 0.167V
12V 2.4KΩ 0.184V
24V 4.7KΩ 0.385V
Table 5: Non-isolated output electrical characteristics
Parameter name Parameter notation Parameter value
Output rise time  TR  0.08us
output fall time  TF  0.02us
Output rise delay  TDR  0.1us
Output fall delay  TDF  0.04u
AttosView

AttosView support all Attostek UV-VIS and SWIR cameras, it is a professional software that integrates camera control, image acquisition and processing, image browsing and analysis functions.

AttosView has the following characteristics:

  • x86: XP SP3 and above; CPU support SSE2 and above
  • x64: Win7 and above
Introduction to SDK

ascamsdk support a variety of APIs, including: Native C/C++,.NET/C#/VB.NET, Python, Java, DirectShow, Twain, LabView, Matlab, etc. Compared with other APIs, Native C/C++ API as a low-level API is characterized by using pure C/C++ development without relying on other runtime libraries. The interface is simple and the control is flexible.

Supported SDK platforms include: Win32 and WinRT, macOS, Linux, Android.
The supported versions for Win32 are as follows:
  • x86: XP SP3 and above; the CPU needs to support at least the SSE2 instruction set.
  • x64: Win7 and above.
  • arm: Win10 and above.
  • arm64: Win10 and above.
Third-party interface software

AttosTek provides extensive third-party software support for its UV-Vis cameras and SWIR cameras, facilitating rapid integration and use in various development environments. This includes SDK and demo programs for LabVIEW and MATLAB, as well as DirectShow drivers, Micromanager, and TWAIN SDK drivers. These features enable seamless compatibility with mainstream development environments and third-party software, greatly simplifying the workflow for system integration and secondary development.

AttosView

Support all Attostek UV-VIS and SWIR cameras.

Click the button below to download the AttosView software.

Download
SDK

Support a variety of APIs.

Click the button below to download the SDK.

Download
Third-Party Software

DirectShow Driver:

Download

Micromanager Driver:

Download

TWAIN SDK Driver:

Download
Recommended PC Configuration

AttosView Recommended System Requirements

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 /11(32 & 64 bit), Mac OSX, Linux

Processor (CPU)

≥3.0 GHz Intel Core i5 or Higher

Memory (RAM)

≥8 GB

Hard Drive

NVMe Solid State Drive (SSD)

Graphics Card

Dedicated Adapter with ≥256 MB RAM

Motherboard

USB 3.0 (-USB) Cameras: Integrated Intel USB 3.0 Controller or One Unused One Unused PCle3.0*16 Slot

Connectivity

Internet Connectivity for Driver Installation
User interface design
The image below shows the interface of the Attosview software. For more detailed information, please download the product manual.
Software
产品反馈表单

4MP 6.5µm Pixel High Sensitivity sCMOS Scientific Cameras

Model UVISI1605BU UVISI091BU UVISI114BU
Sensor model GPixel GLUX1605BSI sCMOS GPixel GLUX9701BSI sCMOS GPixel GSENSE400BSI sCMOS
pixel size 16 µm x 16 µm 9.76 µm x 9.76 µm  11 µm × 11 µm
Target size 1″  2.0”
Frame Rate 60fps@800 x 600, 60fps@400 x 300 30fps@1280 x 1024, 30fps@640 x 512 44@2048×2048, 44@1024 × 1024
Readout Noise  5.88e-(HCG) 36.5e-(LCG) 2.71e-(HDR) 5.28e-(HCG) 35.19e-(LCG) 1.79e-(HDR) 63.24 dB (HCG) / 67.5 dB (LCG) / 85.5 dB (HDR)
Full Well 13541.8e-(HCG) 89258.25e-(LCG) 46604.55e-(HDR) 12927.7e-(HCG) 89855.19e-(LCG) 20205.74e-(HDR)  1.6 e⁻ (HCG) / 33.37 e⁻ (LCG) / 1.7 e⁻ (HDR)
Dynamic Range  67.24dB (HCG) 67.77dB (LCG) 84.72dB (HDR)  67.78dB (HCG) 68.14dB (LCG) 81.08dB (HDR)  2.3 ke⁻ (HCG) / 81.43 ke⁻ (LCG) / 32.02 ke⁻ (HDR)
SNRmax  41.32dB(HCG) 49.51dB(LCG) 46.68dB(HDR) 41.12dB(HCG) 49.54dB(LCG) 43.06dB(HDR)  40.0 dB (HCG) / 49.1 dB (LCG) / 45.1 dB (HDR)
QE 95%@560nm  89%@610nm 95.3% @560nm
Sensitivity 6.4×10 8 (e-/((W/m2).s))  2.57×10⁸ (e-/((W/m2).s))@610nm  3.25×10⁸ (e-/((W/m2).s))
Dark current 3.71e-/s/pix@ -10℃ die temp  2.07e-/s/pix@ -10℃ die temp  1.5(e-/s/pix) @-10C°
Exposure time range 27µs-60sec  63µs-60sec  100µs-1000sec
Power consumption <20W Cooled 50.2W / Uncooled 7.33W
Size  80mm × 80mm × 101.5mm  110mm×110mm×121.5mm
Weight 860g  1.7kg
Lens mount C-mount  M42 mount
