SMS Series SWIR Modular Microscopic System

  • SWIR imaging range from 900-1700 nm
  • Compatible with standard glass optics for seamless microscope integration
  • Modular architecture for easy expansion and flexible configuration
900-1700 nm SWIR Modular Microscopic System
The SMS Series SWIR modular microscopic system extends imaging from the visible spectrum to the 900–1700 nm short-wave infrared (SWIR) band. Featuring standard glass optics and high-sensitivity InGaAs imaging modules, the system ensures compatibility with conventional microscope platforms while enabling penetration inspection of silicon-based materials. Equipped with a standard C‑mount interface, the system is fully compatible with a wide range of SWIR cameras.
Features
SWIR imaging range from 900-1700 nm
Dedicated M Plan Apo NIR series objectives (5X to 20X HR)
SWIR camera options (0.33M to 5.0M) with built-in TEC cooling
Standard C‑mount interface for easy SWIR camera integration
Coaxial Kohler illumination with 1200/1300/1400/1550 nm LEDs
Precision CNC structure with anti‑vibration design

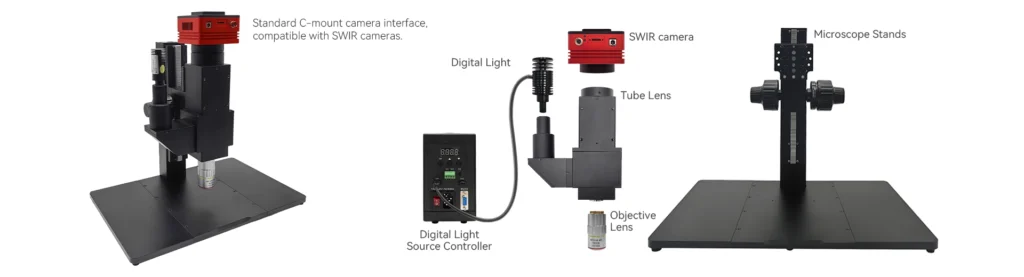

Modular illumination, imaging, and mechanical architecture



应用
Designed for next-generation material characterization and electronic testing, Attostek’s SWIR Modular Microscopic System delivers exceptional precision and clarity.

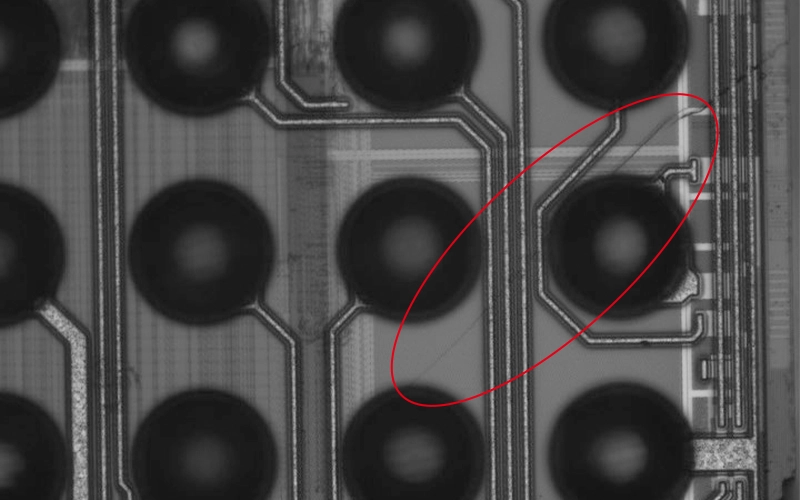

In semiconductor inspection, it reveals subsurface defects, microcracks, hidden chip fractures and soldering defects in silicon wafers and integrated circuits that conventional systems cannot easily detect.

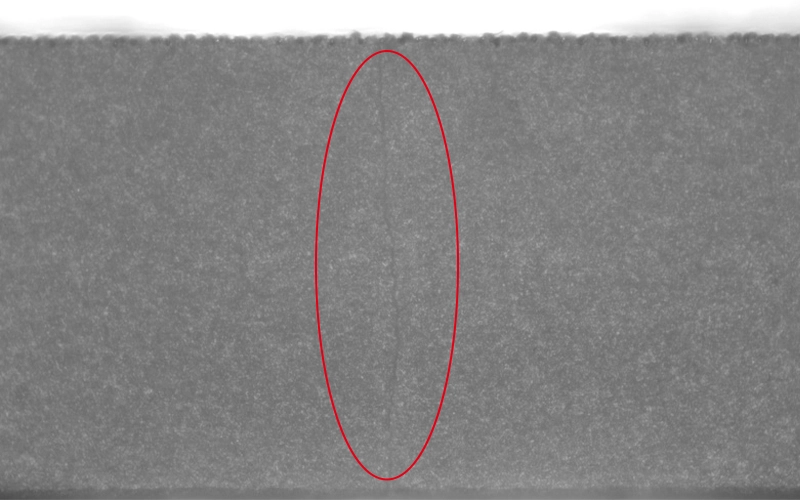

For material science research, it identifies invisible cracks and structural flaws in ceramics, composites and high-performance materials.
In industrial non-destructive testing, it performs non-invasive subsurface component analysis without disassembly, accurately inspecting internal defects in silicon-based materials and ceramic parts.
Model SWIR051AU SWIR0503AU SWIR035AU SWIR033AU
Sensor Model Sony IMX990 Sony IMX991 Sony IMX992 Sony IMX993
Sensor Size 1/2″ 1/1.4″ 1/1.8″
Pixel Size 5μm×5μm 3.45μm×3.45μm
resolution 1.3MP 0.33MP 5.0MP 3.0MP
FPS 392fps 753fps 135.7fps 176fps
Data Interface USB3.0
Exposure Time 15us-60s
Dimension 80mm×80mm×45.5mm
TEC Built-in TEC
SMS-T180VA SMS-T090VA SMS-T100VA
Objective Support Support infinity SWIR microscope objectives Support high NA infinity SWIR microscope objectives
Tube Lens Focal Length  180mm 90mm 100mm
Imaging Path Image Plane Size 24mm (using 180mm focal length tube lens)  33mm (using 200mm focal length tube lens)
Imaging Path Spectral Range 900-1700nm
Camera Mount C-Mount
Illumination Method Coaxial Kohler Lighting
Illumination Source 1550/1400/1300/1200nm LED light source



Item Name Magnification Numerical Aperture Working Distance Focal Length Resolution  Depth of Field FN Weight
M Plan Apo NIR 5X 5X 0.14 37.5 mm 40 mm 2.0 μm 14 μm 24 mm 220 g
M Plan Apo NIR 10X 10X 0.26 30.5 mm 20 mm 1.1 μm 4.1 μm 24 mm 250 g
M Plan Apo NIR 20X 20X 0.4 20 mm 10 mm 0.7 μm 1.7 μm 24 mm 300 g
Model LED1200 LED1310 LED1450 LED1550
Peak Wavelength 1200(±10) nm 1310(±15) nm 1450(±20) nm 1550(±20) nm
Diameter 6 mm
Forward Voltage 1.35 V / 1 A 1.3 V / 1 A 1.25 V / 1 A 1.2 V / 1 A
Irradiance 45 mW/cm² 110 mW/cm² 50 mW/cm² 60 mW/cm²
Total Power Consumption 1.35 W 1.3 W 1.25 W 1.2 W
Working Distance 5–60 mm
Full Width at Half Maximum 30 nm
Service Lifetime 30,000 hours, luminous attenuation < 30%
Housing Material Aluminum Alloy (Black Anodized Surface)
Heat Dissipation Mode Passive Heat DissipationWarning: Forced cooling or derated operation required if ambient temperature exceeds 30°C
Standard Cable Length 500 (±20) mm
Extension Cable 2m / 3m / 5m, custom lengths available
Connector SM3P, customizable on request
Net Weight 50 g
Recommended Controller HS-DCACCC-5-1A-2DF

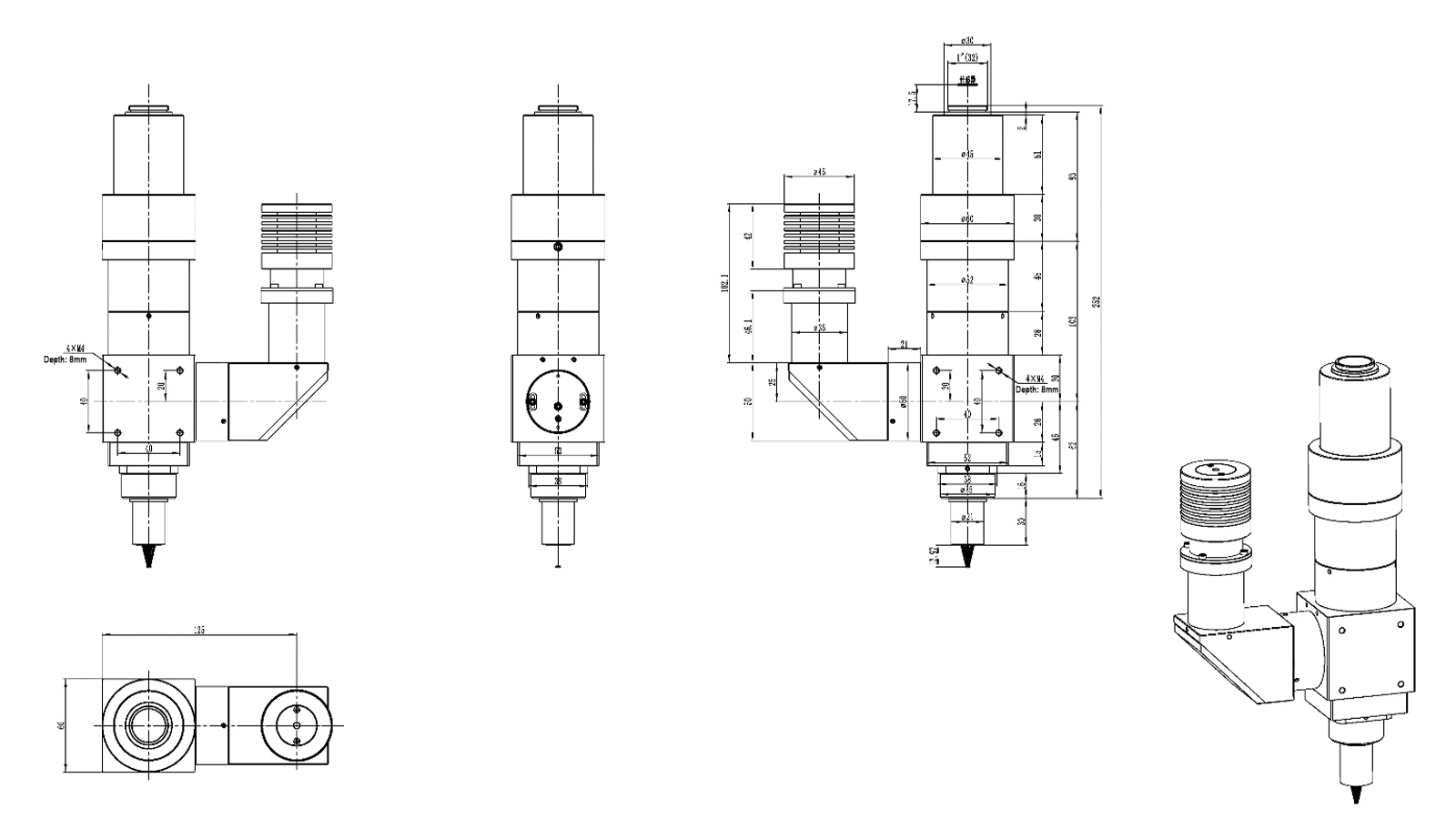

Sms T180va
SMS-T180VA

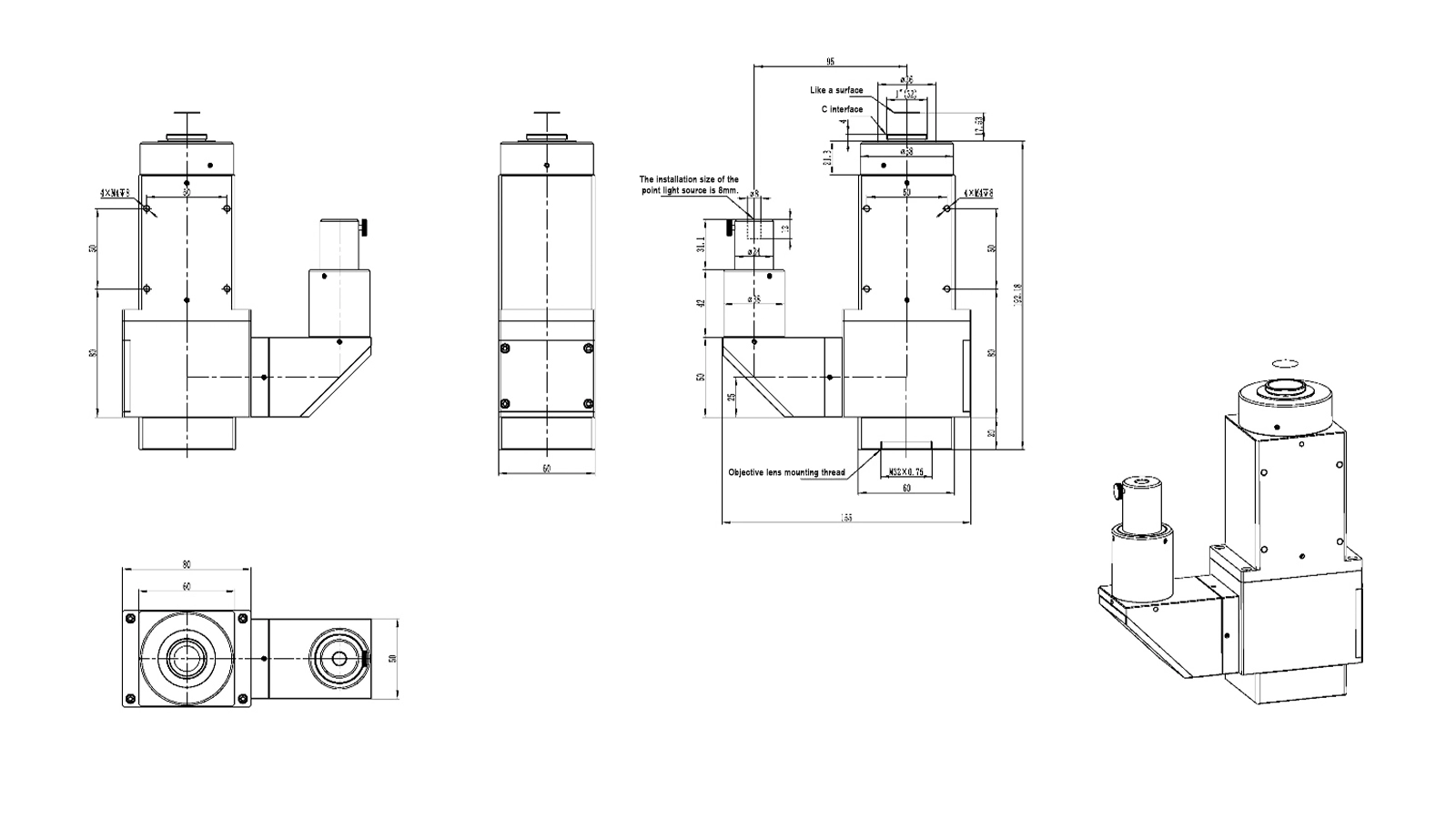

Sms T100va
SMS-T100VA
Q1 : What are the main advantages of the SWIR modular microscopy system over a conventional visible-light microscopy system?

The main advantages include three key aspects:

  1. Enhanced material contrast – SWIR wavelengths can penetrate or distinguish features that are obscured under visible light, revealing more details inside materials or just below the surface.
  2. Cost efficiency – It allows direct use of existing microscope optics and works with affordable tungsten-halogen or LED illumination, eliminating the need for expensive dedicated SWIR objectives.
  3. Scalability – The modular design enables flexible customization for specific wavelengths, sensor types, or automation requirements, adapting to different application scenarios.
产品反馈表单

Compatible InGaAs SWIR Cameras

The SMS series SWIR modular microscopic system is compatible with multiple SWIR cameras integrated with built-in TEC, covering resolutions from 0.33M to 5.0MP. Equipped with Sony IMX990/991/992/993 sensors respectively, these cameras feature a uniform USB3.0 data interface, exposure time of 15us-60s, meeting diverse requirements for field of view, speed and detection sensitivity.

项目
文档
可用
价格
选择数量

SWIR0503AU

0.33 MP InGaAs SWIR Camera, 5 µm Pixels, USB 3.0 Interface

2 Weeks
$8,820.00

SWIR051AU

1.3 MP InGaAs SWIR Camera, 5 µm Pixels, USB 3.0 Interface

2 Weeks
$11,500.00

SWIR033AU

3 MP InGaAs SWIR Camera, 3.45 µm Pixels, USB 3.0 Interface

2 Weeks
$18,600.00

SWIR035AU

5 MP InGaAs SWIR Camera, 3.45 µm Pixels, USB 3.0 Interface

2 Weeks
$22,600.00

SMS Series Tube Lens

The SMS series provides multiple tube lens configurations to match different SWIR microscope objectives and image plane requirements. All solutions share Coaxial Kohler illumination and a standard C‑mount camera interface, supporting 900–1700nm spectral range with optional LED sources (1550/1400/1300/1200nm).

项目
文档
可用
价格
选择数量

SMS-T180VA

SWIR Microscopy Tube Lens, 180mm Focal Length, C-Mount

2 Weeks
$2,857.00

SMS-T090VA

SWIR Microscopy Tube Lens, 90mm Focal Length, C-Mount

2 Weeks
$3,000.00

SMS-T100VA

SWIR Microscopy Tube Lens, 100mm Focal Length, C-Mount

2 Weeks
$3,000.00

Objective Lens

Microscope objectives are critical components of a microscope’s optical system. Positioned near the sample, specimen, or object under inspection, they enable the formation of a magnified real image. Attostek offers the M Plan Apo NIR series of objectives with magnification from 5X to 20X. Optimized for the SWIR band, these objectives provide a balanced trade-off between working distance, resolution, and depth of focus, making them ideal for semiconductor, materials, and industrial inspection applications.

项目
文档
可用
价格
选择数量

M Plan Apo NIR 5X

5X Microscope Objective, 0.14 NA, 37.5 mm WD

2 Weeks
$1,214.00

M Plan Apo NIR 10X

10X Microscope Objective, 0.26 NA, 30.5 mm WD

2 Weeks
$1,264.00

M Plan Apo NIR 20X

20X Microscope Objective, 0.4 NA, 20 mm WD

2 Weeks
$3,000.00

M Plan Apo NIR 50X

50X Microscope Objective, 0.42 NA, 17 mm WD

2 Weeks

Digital Light

项目
文档
可用
价格
选择数量

LED1550

1550(±20)nm Wavelength, 6mm Diameter, 60mW/cm² Optical Power LED

2 Weeks
$2,000.00

LED1450

1450(±20)nm Wavelength, 6mm Diameter, 50mW/cm² Optical Power LED

2 Weeks
$2,000.00

LED1310

1310(±15)nm Wavelength, 6mm Diameter, 110mW/cm² Optical Power LED

2 Weeks
$2,000.00

LED1200

1200(±10)nm Wavelength, 6mm Diameter, 45mW/cm² Optical Power LED

2 Weeks
$2,000.00

Microscope Stands

项目
文档
可用
价格
选择数量

显微镜支架

SMS Series SWIR Modular Microscope Stands

2 Weeks
$143.00
