0.33 MP 15 μm Pixels -50°C Cooled 900-1700nm SWIR Camera

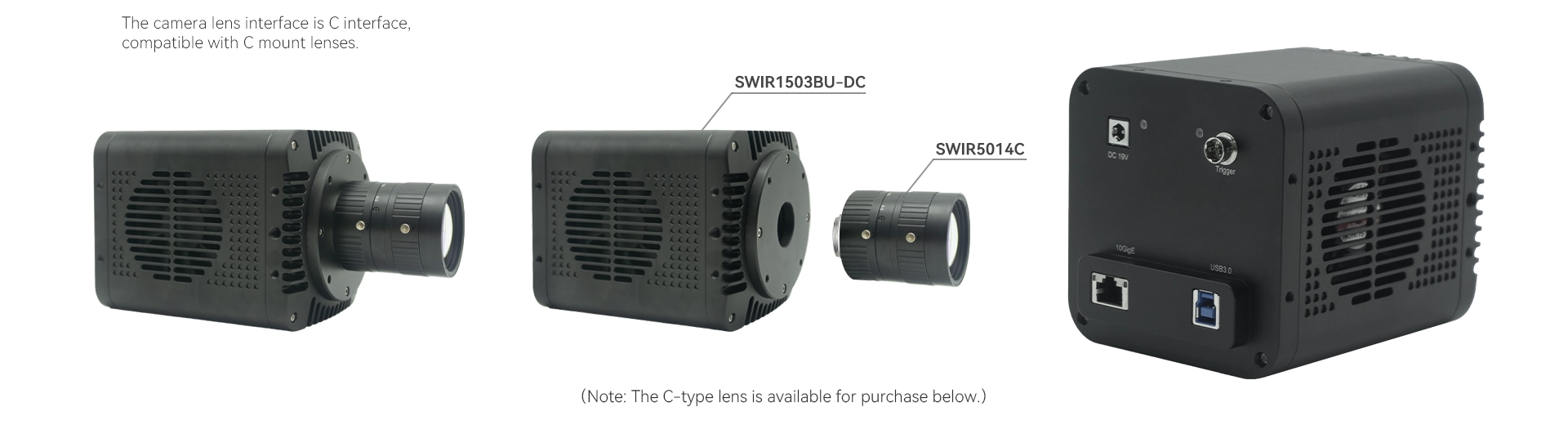

组合图
SWIR1503BU-DC SWIR cameras
The SWIR1503BU-DC shortwave infrared camera has a spectral response range of 900–1700 nm and comes with a 640×512 (0.33 MP) resolution sensor with a pixel size of 15 µm × 15 µm, using a standard C-mount optical design. It offers high sensitivity and low readout noise, and with TEC cooling to suppress dark current, it delivers excellent contrast and rich image details even in low-light conditions.
Features
The spectral response range covers 900–1700 nm.
640×512 resolution,15 μm pixel size
Global shutter, high-speed acquisition
Hardware ROI & external triggering
512MB cache Model-Dependent
CE/FCC Cerifcation,Multi-platform SDK



Software
AttosView supports Windows® 7 (64-bit),10 and 11 operating systems.
The SDK supports development languages such as C/C++, C #/VB.net, Python, Java, etc,
Third-party support including LabVIEW, MATLAB, Micro-Manager, DirectShow, and TWAIN.

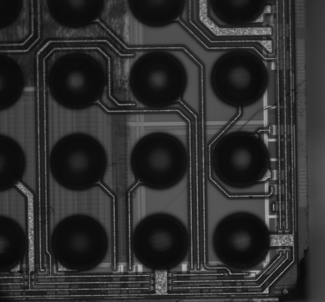

Images acquired by the SWIR camera
The SWIR1503DU-DC short-wave infrared camera is widely used in life sciences and materials science. In life sciences, it can do near-infrared fluorescence imaging of small animals, observe deep tissue structures, and detect NIR-II probes. It's also useful in brain science research for imaging deep brain tissues, monitoring neural activity, and analyzing blood vessels and hemodynamics. For materials characterization, it's suitable for detecting semiconductor defects and evaluating the performance of optoelectronic devices.
Common Specifications
Model SWIR1503DU-DC
Sensor type InGaAs CMOS
Spectral Range  900nm – 1700nm
Color Type Monochrome
Pixel Size 15 µm x 15 µm
Sensor Size 1/2″
Frame Rate & Resolution 300 fps@640×512
Image Buffer 512MB
Conversion Gain 0.96 e-/DN (HCG),5.36 e-/DN (MCG),145 e-/DN (LCG)
Dynamic Range  55.8 dB (HCG),58.1 dB (MCG),58.3 dB (LCG)
Readout Noise 22.8 e- (HCG),106 e- (MCG),2708 e- (LCG)
Full Well Charge 14 ke- (HCG),85 ke- (MCG),2216 ke- (LCG)
Maximum SNR 41.5 dB (HCG),49.3 dB (MCG),63.4 dB (LCG)
Dark current MCG 193.909 / HCG 630.516 / LCG 131.561;
Exposure Time Range 16µs~5s
Shutter Mode Global shutter
Data interface USB3.0
Digital I/O 1 channel of optically isolated input,
1 channel of optically isolated output,
2 channels of non-isolated input/output port
Data Format 8-bit / 16-bit
Cooling Temperature  -50℃ guaranteed, specified at ambient temperature of +20℃
Power Supply 19 V 4.74 A DC
Power consumption 8.4W(TEC OFF)/ <16W(TEC ON)
Operating Temperature -30 °C to +45 °C
Storage Temperature -40 °C to +60 °C
Humidity 0-95%
Size 137.8mm×100mm×100mm
Weight 1.31kg
Lens mount C-mount
Software AttosView / SDK

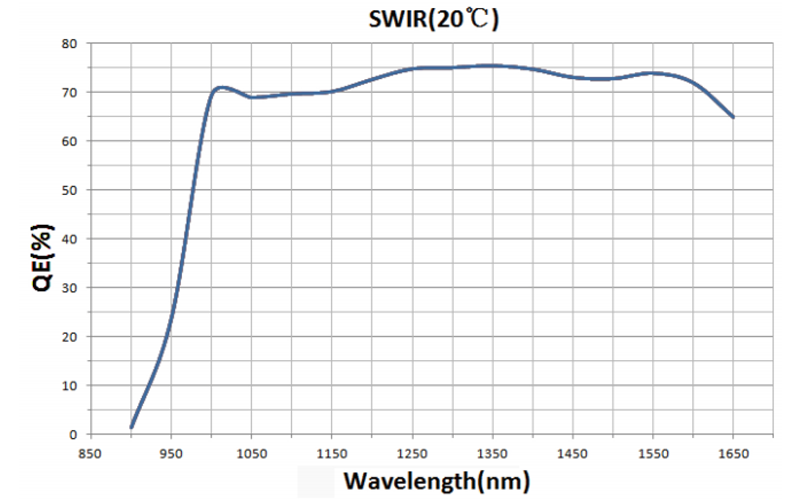

阿秒科技SWIR1503BU-DC系列相机量子效率 QE 特性曲线图
Quantum Efficiency Curve

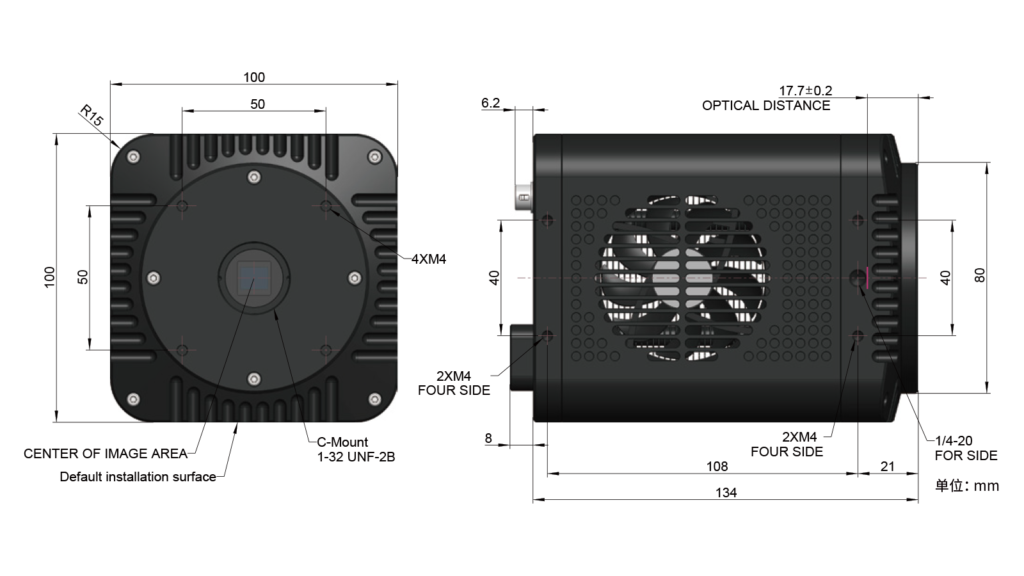

SWIR1503DU-DC Refrigerated Camera Dimensions & Port
阿秒科技SWIR1503BU-DC短波红外相机外形尺寸图
Parameter Specification
Size 137.8mm×100mm×100mm
Mount C mount

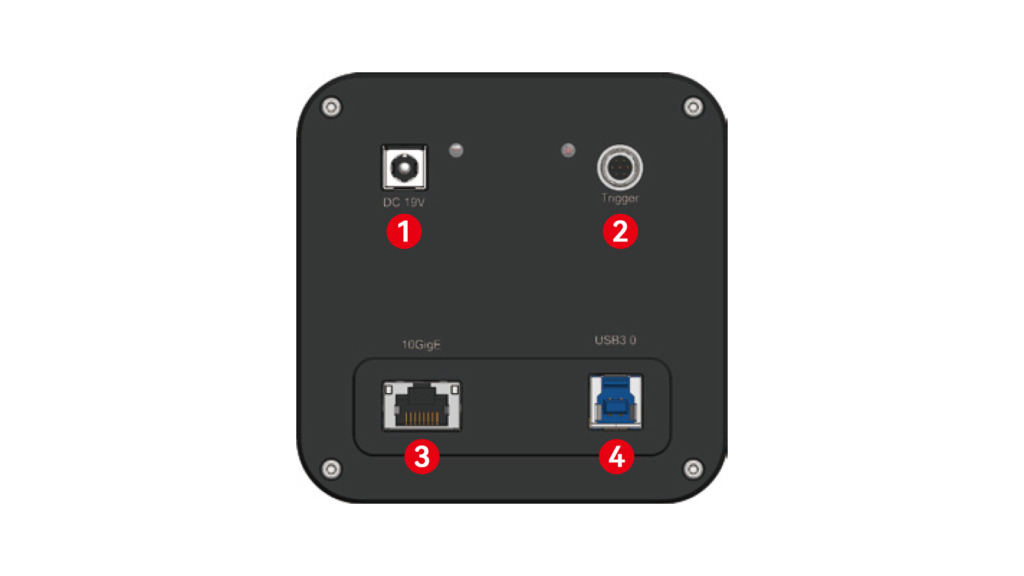

SWIR1503DU3.2-DC短波红外相机接口结构细节图
Item Specification
1 DC 19V power
2 External IO connection port
3 10GigE port (developing)
4 USB3.0 port
Camera Pin Signal
Table1: USB port, GigE port, CL port refrigerated camera pin signal definitions
Swir051 Series Camera Pin Signal Color Pin Signal Description of the signal
White 1 GDN Direct-coupled signal ground
Red 2 12V 12VDC power input
Blue 3 OPTO_GND Opto-isolated signal ground
Yellow 4 DIR_GPIO0 Direct-coupled General Purpose I/O (Software configurable input/output) (line2)
Black 5 DIR_GPIO1 Direct-coupled General Purpose I/O (Software configurable input/output) (line3)
Green 6 OPTO_IN Opto-isolated input signal (line0)
Pink 7 OPTO_OUT Opto-isolated output signal (line1)
I/O electrical characteristics
Opto-isolated input circuit (line0)

Logic 0 input level: 0~2.2VDC (OPTO_IN pin)
Logic 1 input level: 3.3~24VDC (OPTO_IN pin)
Maximum input current:30mA

When the input level is between 2.2V and 3.2V, the circuit operation state is uncertain, please do not let SWIR camera work within this voltage range.

Input rise delay (TDR): 6us

Input fall delay (TDF): 6us

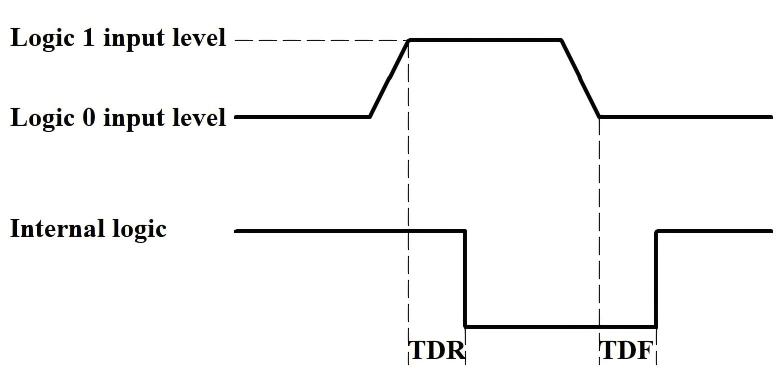

Figure 5:input Logic Levels
Figure 1:Input logic levels
Opto-isolated output circuit (line1)

The opto-isolated output maximum current is 30mA.

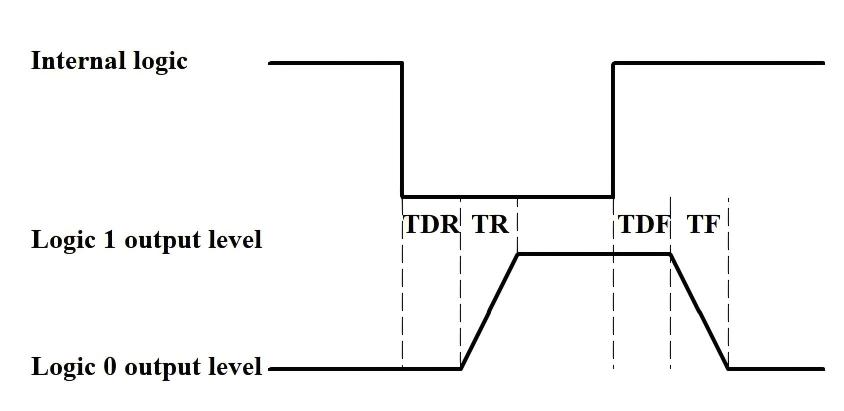

Figure 8:output Logic Levels
Figure 2: Output logic levels

The electrical characteristics of the opto-isolated output (external voltage 5V, external resistor 1K) are shown in Table 2.

Table 2: Opto-isolated output signal’s electrical characteristics
Parameter name Parameter notation Parameter value
Output logic low VL 742mV
Output logic high VH 4.134V
Output rise time TR 4us
Output fall time TF 1.8us
Output rise delay TDR 12us
Output fall delay TDF 2us

The output of the corresponding output current and VL when using different voltages and resistors in externalcircuit are shown in Table 3.

Table 3:Opto-isolated output logic’s low levels parameters
External voltage External resistor VL Output current
3.3V 1KΩ 510mV 2.82mA
5V 1KΩ 742mV 4.31mA
12V 2.4KΩ 795mV 4.68mA
24V 4.7KΩ 850mV 4.97mA
Input and output I/O circuit (line2/line3)

1. Line2/line3 is set as input pin
Logic 0 input level: 0~0.6VDC (DIR_GPIO0/DIR_GPIO1 pins)
Logic 1 input level: 2.0~24VDC (DIR_GPIO0/DIR_GPIO1 pins)
Maximum input current: 25mA
When the input level is between 0.6V and 2.0V, the circuit action state is uncertain, please avoid the input voltage range working in this range.

To prevent damage to the GPIO pins, please connect the pin GND first, and then input voltage to the Line2 pin.
Input rise delay (TDR): 0.02us
Input fall delay (TDF): 0.02us

2. Line2/line3 are set as output pins
The maximum current allowed through this pin is 25mA.
The external pull-up voltage is 5V, the pull-up resistor is 1KΩ, and the GPIO is configured to output the logic level and electrical characteristics as shown in Figure 4.

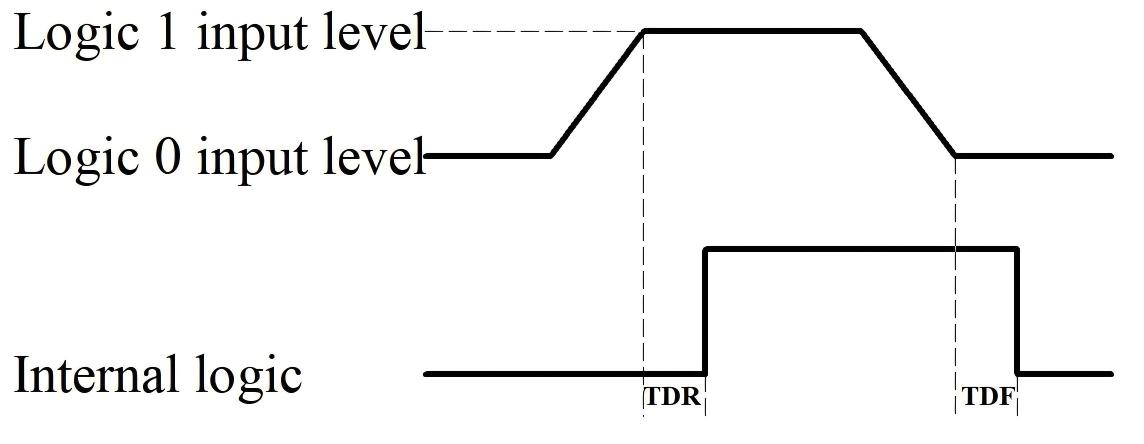

Figure 9:input Logic Levels
Figure 3: Input logic levels
Figure 10:output Logic Levels
Figure 4: Output logic levels

When the ambient temperature is 25 degrees Celsius, the relationship between the external voltage, resistance and low-level voltage output is shown in Table 4.

Table 4:Non-isolated output Logic’s low level parameters
External voltage External resistor VL(GPIO)
3.3V 1KΩ 0.11V
5V 1KΩ 0.167V
12V 2.4KΩ 0.184V
24V 4.7KΩ 0.385V
Table 5: Non-isolated output electrical characteristics
Parameter name Parameter notation Parameter value
Output rise time  TR  0.08us
output fall time  TF  0.02us
Output rise delay  TDR  0.1us
Output fall delay  TDF  0.04u
AttosView

AttosView support all Attostek UV-VIS and SWIR cameras, it is a professional software that integrates camera control, image acquisition and processing, image browsing and analysis functions.

AttosView has the following characteristics:

  • x86: XP SP3 and above; CPU support SSE2 and above
  • x64: Win7 and above
Introduction to SDK

ascamsdk support a variety of APIs, including: Native C/C++,.NET/C#/VB.NET, Python, Java, DirectShow, Twain, LabView, Matlab, etc. Compared with other APIs, Native C/C++ API as a low-level API is characterized by using pure C/C++ development without relying on other runtime libraries. The interface is simple and the control is flexible.

Supported SDK platforms include: Win32 and WinRT, macOS, Linux, Android.
The supported versions for Win32 are as follows:
  • x86: XP SP3 and above; the CPU needs to support at least the SSE2 instruction set.
  • x64: Win7 and above.
  • arm: Win10 and above.
  • arm64: Win10 and above.
Third-party interface software

AttosTek provides extensive third-party software support for its UV-Vis cameras and SWIR cameras, facilitating rapid integration and use in various development environments. This includes SDK and demo programs for LabVIEW and MATLAB, as well as DirectShow drivers, Micromanager, and TWAIN SDK drivers. These features enable seamless compatibility with mainstream development environments and third-party software, greatly simplifying the workflow for system integration and secondary development.

AttosView

Support all Attostek UV-VIS and SWIR cameras.

Click the button below to download the AttosView software.

Download
SDK

Support a variety of APIs.

Click the button below to download the SDK.

Download
Third-Party Software

DirectShow Driver:

Download

Micromanager Driver:

Download

TWAIN SDK Driver:

Download
Recommended PC Configuration

AttosView Recommended System Requirements

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 /11(32 & 64 bit), Mac OSX, Linux

Processor (CPU)

≥3.0 GHz Intel Core i5 or Higher

Memory (RAM)

≥8 GB

Hard Drive

NVMe Solid State Drive (SSD)

Graphics Card

Dedicated Adapter with ≥256 MB RAM

Motherboard

USB 3.0 (-USB) Cameras: Integrated Intel USB 3.0 Controller or One Unused One Unused PCle3.0*16 Slot

Connectivity

Internet Connectivity for Driver Installation

User interface design
The image below shows the interface of the Attosview software. For more detailed information, please download the product manual.
Software

Function

Function description

Operating mode

Operating mode: video mode or trigger mode
Trigger mode: soft trigger mode or external trigger mode

Denoise

The camera hardware incorporates denoise

Automatic exposure

Automatic exposure or manual exposure function

Gain

HG, MG, LG 3 gain modes

Frame rate

Supports precise frame rate control

ROI

Supports single-zone ROI with a maximum frame rate of 8000fps after ROI

Flip

Supports Vertical/horizontal flip

Custom dark field
correction

The hardware supports up to 12 groups of user-defined dark field correction image functions

Timestamp function

Timestamps can be turned on or off. After the timestamp function is enabled, the low 8bits of 1-8 pixels, 9-16 pixels, and 17-24 pixels will be modified to: 0-7: frame number; 8-15: Frame time; 16-23: trigger signal count

Firmware update

Supports firmware online update

Pipette function

Supports the display of the gray value of the mouse pixel position

Histogram display

Supports histogram display and statistics

Plane line function

Supports the function of viewing surface data

Regional gray statistics

Support the average gray statistics function of user-defined areas

Cooling system

1) The cooling system of the camera uses a built-in TEC cooling chip for the sensor, with external heat dissipation structure and fan auxiliary heat dissipation, the working temperature can be adjusted to a specific value, the effective cooling temperature can be lower than the ambient temperature of 40℃, and the high-efficiency cooling system ensures extremely low dark current level;
2) The TEC system adopts PID algorithm control, so that TEC can accurately adjust the sensor to the target temperature, and the temperature deviation is 0.3℃;
