1.7MP-26MP, 400-1000nm CMOS Microscope Camera
| Features |
|
Wide resolution range from 1.7 MP to 26 MP |
|
Multiple sensor sizes and pixel size options |
| 8/12-bit color depth processing |
| Global shutter or rolling shutter (depending on model) |
| USB3.0 for real-time acquisition |
| CE/FCC Cerifcation，Multi-platform SDK |
The SDK supports development languages such as C/C++, C #/VB.net, Python, Java, etc,
Third-party support including LabVIEW, MATLAB, Micro-Manager, DirectShow, and TWAIN.
| Common Specifications | |
| Data interface | USB3.0 |
| Gain Range | 1x-50x |
| Digital I/O | 1 channel of optically isolated input,1 channel of optically isolated output,2 channels of non-isolated input/output port |
| Data Format | 8-bit / 12-bit |
| Working temperature | -10~50℃ |
| Storage temperature | -30~70℃ |
| Humidity | 20%-80%, no condensation |
| Software | AttosView / SDK |
| Platform and architecture | Win32/WinRT/Linux/macOS/Android；x86/x64/ARM HF/ARM EL/ARM64 |
| Certification | CE, FCC |

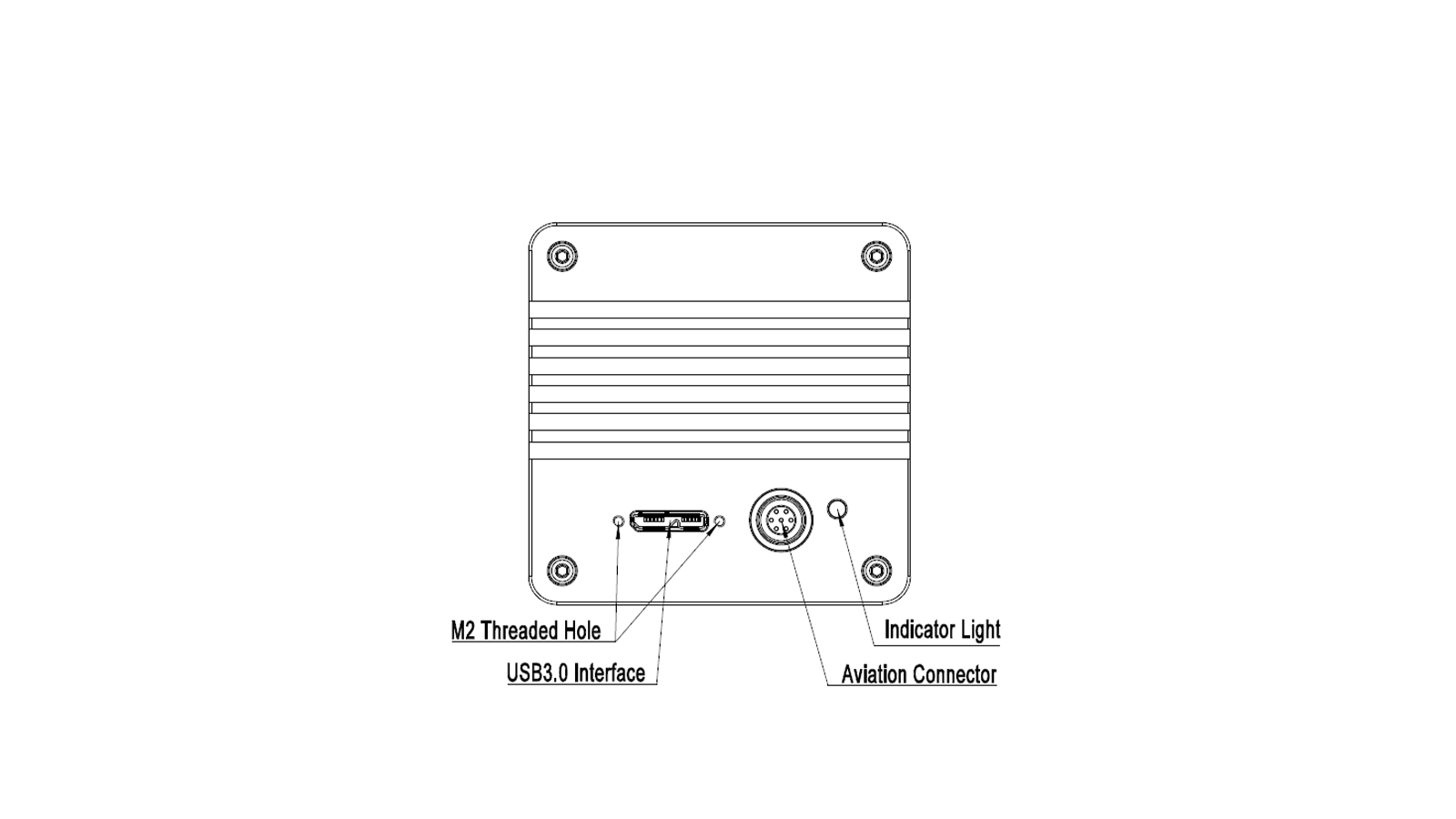

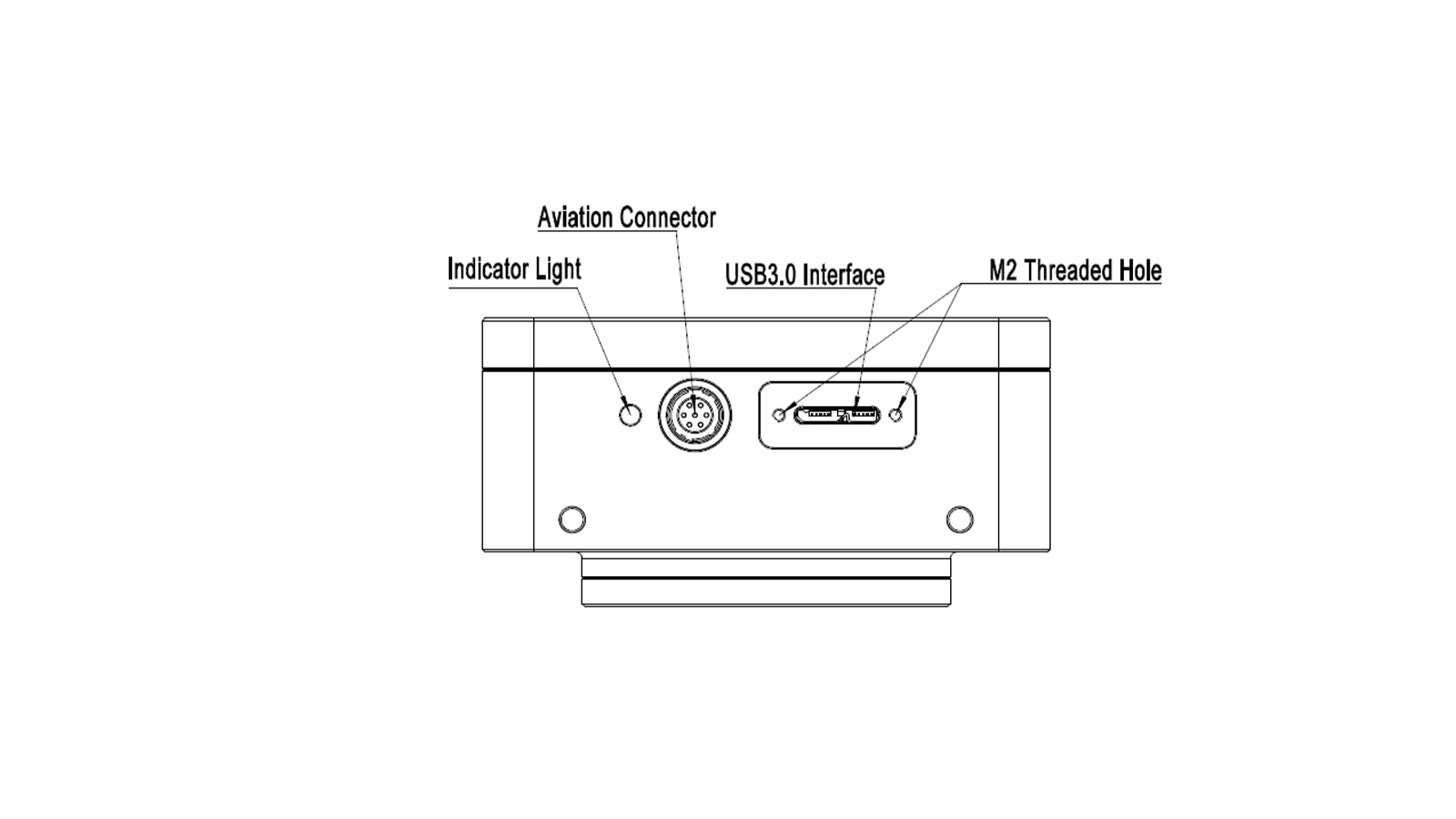

| Table1: USB port, GigE port, CL port refrigerated camera pin signal definitions | |||||
 |
Color | Pin | Signal | Description of the signal | |
| White | 1 | GDN | Direct-coupled signal ground | ||
| Red | 2 | 12V | 12VDC power input | ||
| Blue | 3 | OPTO_GND | Opto-isolated signal ground | ||
| Yellow | 4 | DIR_GPIO0 | Direct-coupled General Purpose I/O (Software configurable input/output) (line2) | ||
| Black | 5 | DIR_GPIO1 | Direct-coupled General Purpose I/O (Software configurable input/output) (line3) | ||
| Green | 6 | OPTO_IN | Opto-isolated input signal (line0) | ||
| Pink | 7 | OPTO_OUT | Opto-isolated output signal (line1) | ||
Logic 0 input level: 0~2.2VDC (OPTO_IN pin)
Logic 1 input level: 3.3~24VDC (OPTO_IN pin)
Maximum input current:30mA
When the input level is between 2.2V and 3.2V, the circuit operation state is uncertain, please do not let SWIR camera work within this voltage range.
Input rise delay (TDR): 6us
Input fall delay (TDF): 6us
The opto-isolated output maximum current is 30mA.
The electrical characteristics of the opto-isolated output (external voltage 5V, external resistor 1K) are shown in Table 2.
| Table 2： Opto-isolated output signal’s electrical characteristics | ||
| Parameter name | Parameter notation | Parameter value |
| Output logic low | VL | 742mV |
| Output logic high | VH | 4.134V |
| Output rise time | TR | 4us |
| Output fall time | TF | 1.8us |
| Output rise delay | TDR | 12us |
| Output fall delay | TDF | 2us |
The output of the corresponding output current and VL when using different voltages and resistors in externalcircuit are shown in Table 3.
| Table 3：Opto-isolated output logic’s low levels parameters | |||
| External voltage | External resistor | VL | Output current |
| 3.3V | 1KΩ | 510mV | 2.82mA |
| 5V | 1KΩ | 742mV | 4.31mA |
| 12V | 2.4KΩ | 795mV | 4.68mA |
| 24V | 4.7KΩ | 850mV | 4.97mA |
1. Line2/line3 is set as input pin
Logic 0 input level: 0~0.6VDC (DIR_GPIO0/DIR_GPIO1 pins)
Logic 1 input level: 2.0~24VDC (DIR_GPIO0/DIR_GPIO1 pins)
Maximum input current: 25mA
When the input level is between 0.6V and 2.0V, the circuit action state is uncertain, please avoid the input voltage range working in this range.
To prevent damage to the GPIO pins, please connect the pin GND first, and then input voltage to the Line2 pin.
Input rise delay (TDR): 0.02us
Input fall delay (TDF): 0.02us
2. Line2/line3 are set as output pins
The maximum current allowed through this pin is 25mA.
The external pull-up voltage is 5V, the pull-up resistor is 1KΩ, and the GPIO is configured to output the logic level and electrical characteristics as shown in Figure 4.
When the ambient temperature is 25 degrees Celsius, the relationship between the external voltage, resistance and low-level voltage output is shown in Table 4.
| Table 4：Non-isolated output Logic’s low level parameters | ||
| External voltage | External resistor | VL(GPIO) |
| 3.3V | 1KΩ | 0.11V |
| 5V | 1KΩ | 0.167V |
| 12V | 2.4KΩ | 0.184V |
| 24V | 4.7KΩ | 0.385V |
| Table 5: Non-isolated output electrical characteristics | ||
| Parameter name | Parameter notation | Parameter value |
| Output rise time | TR | 0.08us |
| output fall time | TF | 0.02us |
| Output rise delay | TDR | 0.1us |
| Output fall delay | TDF | 0.04u |
AttosView support all Attostek UV-VIS and SWIR cameras, it is a professional software that integrates camera control, image acquisition and processing, image browsing and analysis functions.
AttosView has the following characteristics:
- x86: XP SP3 and above; CPU support SSE2 and above
- x64: Win7 and above
ascamsdk support a variety of APIs, including: Native C/C++,.NET/C#/VB.NET, Python, Java, DirectShow, Twain, LabView, Matlab, etc. Compared with other APIs, Native C/C++ API as a low-level API is characterized by using pure C/C++ development without relying on other runtime libraries. The interface is simple and the control is flexible.
- x86: XP SP3 and above; the CPU needs to support at least the SSE2 instruction set.
- x64: Win7 and above.
- arm: Win10 and above.
- arm64: Win10 and above.
AttosTek provides extensive third-party software support for its UV-Vis cameras and SWIR cameras, facilitating rapid integration and use in various development environments. This includes SDK and demo programs for LabVIEW and MATLAB, as well as DirectShow drivers, Micromanager, and TWAIN SDK drivers. These features enable seamless compatibility with mainstream development environments and third-party software, greatly simplifying the workflow for system integration and secondary development.
Support all Attostek UV-VIS and SWIR cameras.
Click the button below to download the AttosView software.
|
AttosView Recommended System Requirements |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 /11(32 & 64 bit), Mac OSX, Linux |
|
Processor (CPU) |
≥3.0 GHz Intel Core i5 or Higher |
|
Memory (RAM) |
≥8 GB |
|
Hard Drive |
NVMe Solid State Drive (SSD) |
|
Graphics Card |
Dedicated Adapter with ≥256 MB RAM |
|
Motherboard |
USB 3.0 (-USB) Cameras: Integrated Intel USB 3.0 Controller or One Unused One Unused PCle3.0*16 Slot |
|
Connectivity |
Internet Connectivity for Driver Installation |
Q1 : VIS091CU/MU-NC (1.7 megapixels, 9 µm large pixels) is suitable for which applications?
The VIS091CU/MU-NC comes with a Sony IMX432 sensor, offering a resolution of 1.7 million pixels (1600×1100) and a pixel size of 9.0 µm × 9.0 µm. This model has the following application highlights:
Top low-light sensitivity: The 9 µm large pixel area can collect more photons, combined with high sensitivity of 4910 mV/(lux·s) and a peak quantum efficiency of 89% @ 610 nm, making it perform excellently in low-light conditions.
High frame rate: Up to 98.6 fps at full resolution, ideal for microscopy applications that need fast preview and real-time observation.

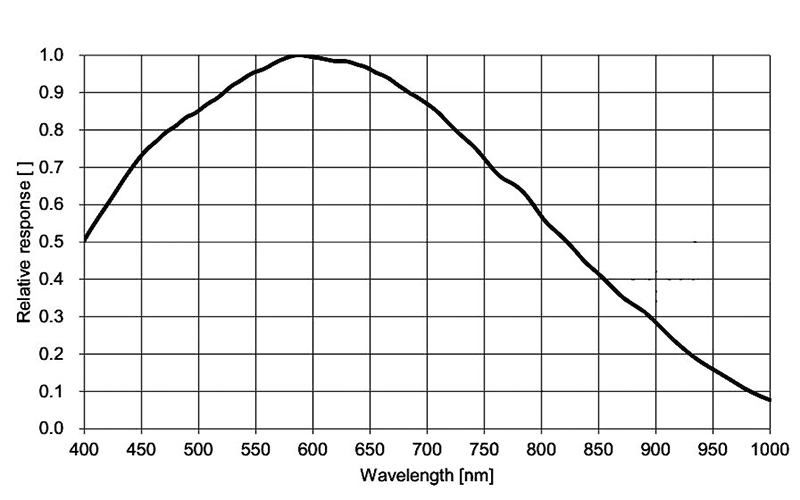

Wide spectral coverage: 400–1000 nm wavelength range, compatible with imaging modes from visible to near-infrared.
This model is especially suitable for fluorescence imaging, live cell dynamic observation, and detecting weak-light biological samples where sensitivity and speed are key.
Q2 : 2.74μm/3.45μm/4.5μm/9μm pixel sizes corresponding to experimental needs?
9μm (VIS091): Largest single-pixel photosensitive area, best fluorescence signal-to-noise ratio; ideal for budget-limited, low-magnification brightfield/fluorescence experiments, though resolution is a bit weak.

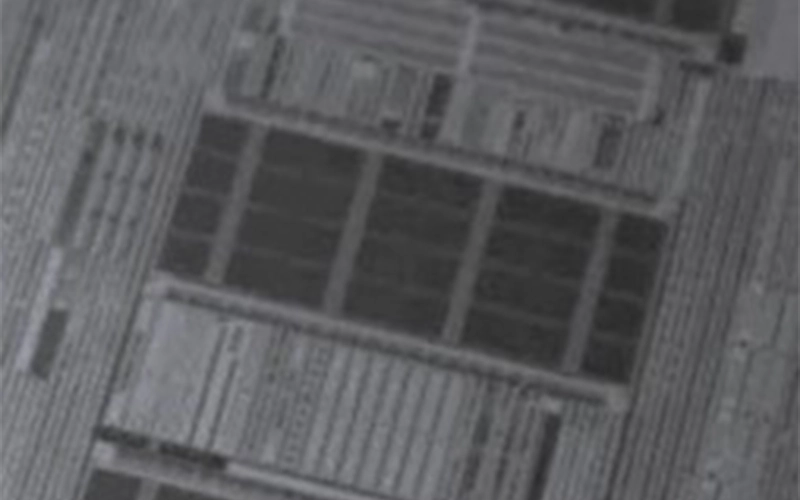

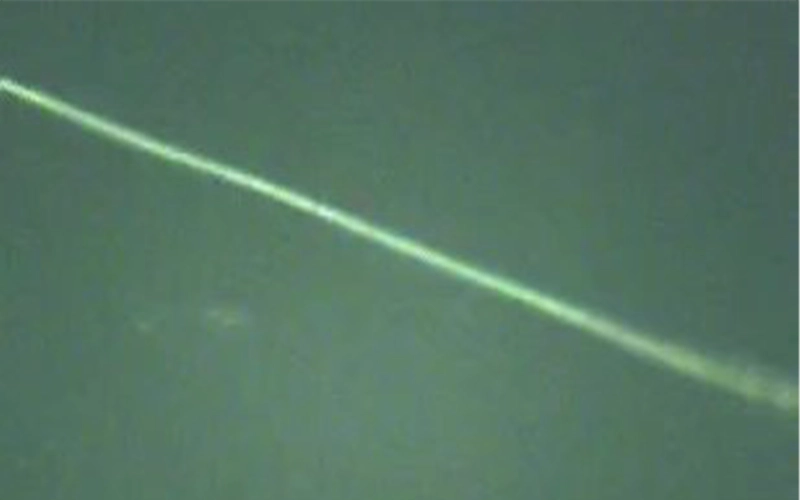

4.5μm (VIS047): Balanced sensitivity and resolution, a versatile model for general cells, metallography, and medium to small wafers.
3.45μm (VIS0312/VIS035): Small pixels, specialized for high-magnification oil objectives, tiny lithography, and fine sectioning, offering better detail resolution.

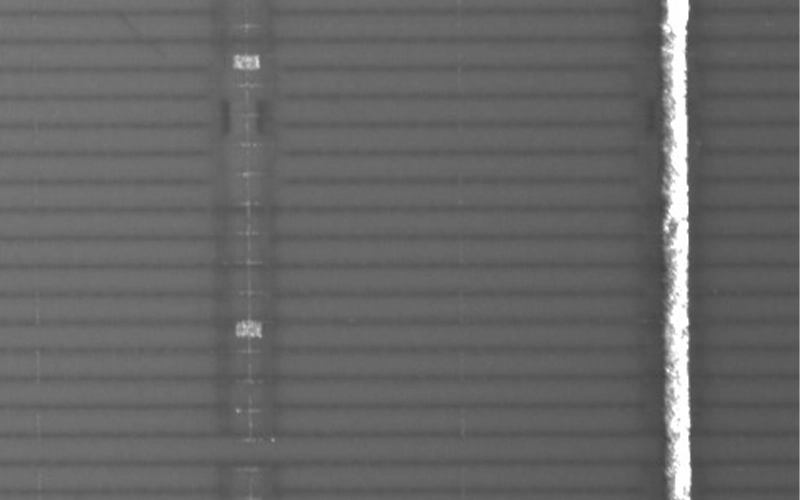

2.74μm (VIS0220): Smallest pixels in the series, ultra-high-resolution panoramic scanning, perfect for high-density PCBs and large-area precise pathology inspections.
Q3 : How to choose between a global shutter and a rolling shutter?
This series offers both global shutter and rolling shutter versions:
Global Shutter (VIS091, VIS047, VIS0312, VIS035, VIS0220 series): All pixels are exposed at the same time, making it great for capturing fast-moving objects and avoiding motion distortion and blur.
Rolling Shutter (VIS0326 series): Exposes line by line, which results in lower noise in low-light imaging and is suitable for static or slow-moving imaging scenarios.
1.7 MP – 26 MP High-Sensitivity CMOS Microscope Camera
| Model | VIS091CU- NC | VIS091MU-NC | VIS047CU-NC | VIS047MU-NC | VIS0312CU-NC | VIS0312MU-NC |
| Sensor Model | Sony IMX432LQJ | Sony IMX432LLJ | Sony IMX428LQJ | Sony IMX428LLJ | Sony IMX304LQR-C | Sony IMX304LLR-C |

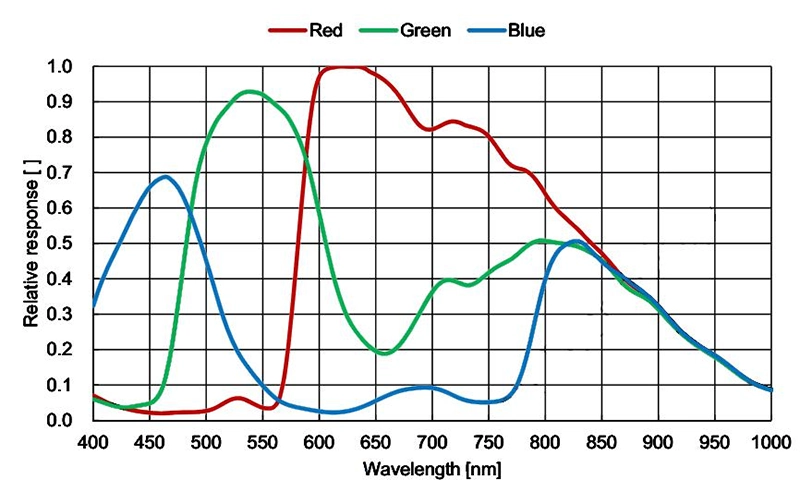

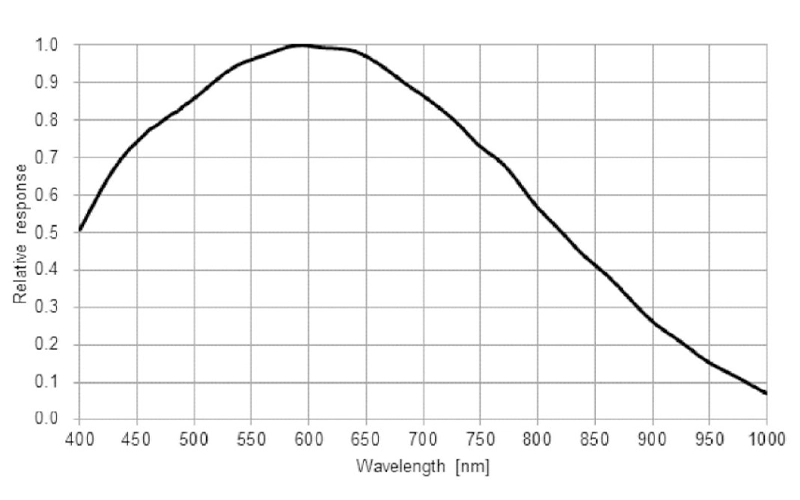

| Spectral Range | 400nm-1000nm | |||||
| Sensor Size | 1.1″ | |||||
| Pixel Size | 9.0 µm x 9.0 µm | 4.5 µm x 4.5 µm | 3.45 µm x 3.45 µm | |||
| Color Type | Color | Monochrome | Color | Monochrome | Color | Monochrome |
| Frame rate & resolution | 98.6fps@1600 x 1100 | 51.4fps@3200 x 2200 133.8fps@1584 x 1100 |
23.4fps@4096 x 3000 46.3fps@2048 x 1500 46.3fps@1024 x 750 |
|||
| Conversion Gain | 4.9 (e⁻/ADU) | 4.97 (e⁻/ADU) | 2.74 (e⁻/ADU) | 2.77 (e⁻/ADU) | 2.68 (e⁻/ADU) | 2.71 (e⁻/ADU) |
| Readout Noise | 4.53 (e⁻) | 4.76 (e⁻) | 2.54 (e⁻) | 2.63 (e⁻) | 2.11 (e⁻) | 2.12 (e⁻) |
| Full well | 20.1 (ke⁻) | 20.4 (ke⁻) | 11.2 (ke⁻) | 11.3 (ke⁻) | 11.0 (ke⁻) | 11.1 (ke⁻) |
| Dynamic Range | 72dB | |||||
| SNRmax | 43dB | 40.5dB | 40.6dB | 40.4dB | 40.5dB | |

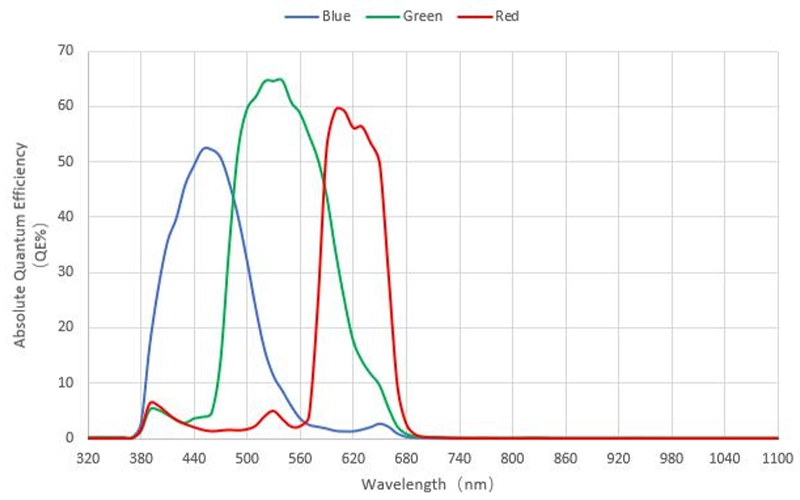

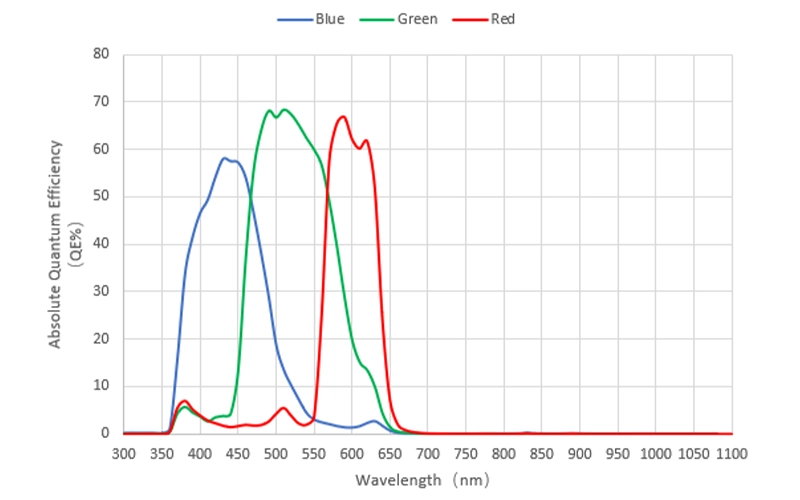

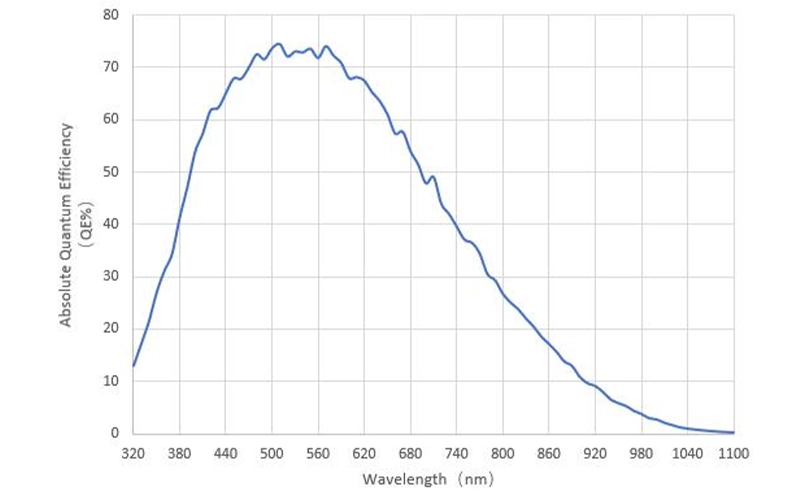

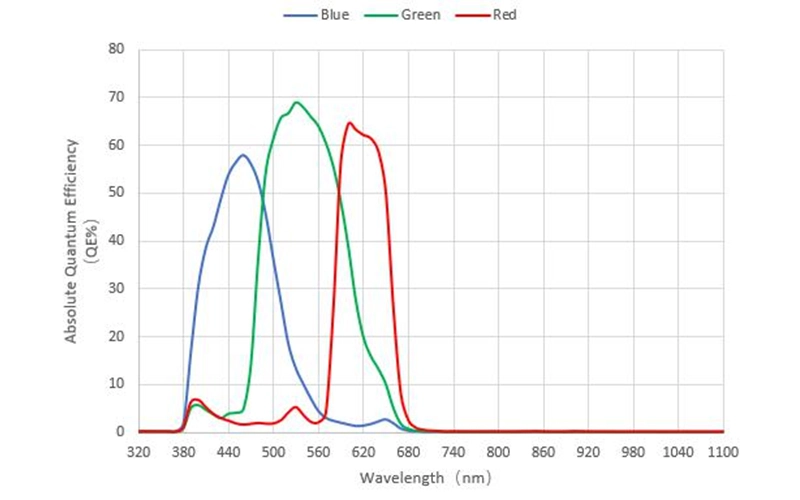

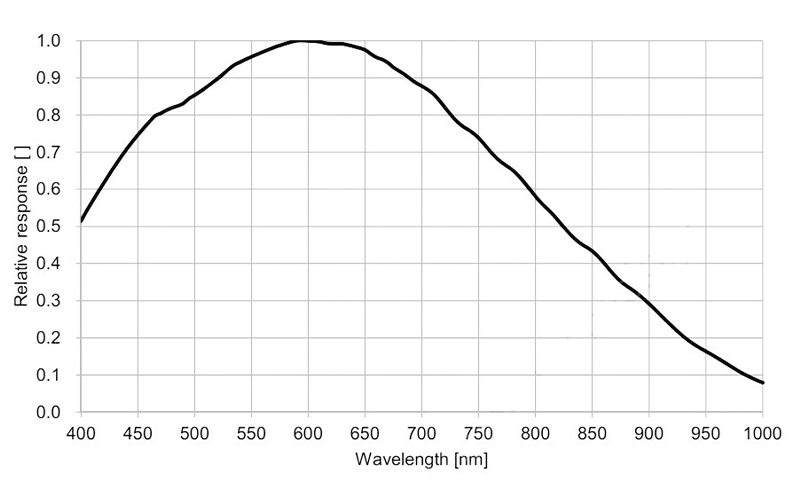

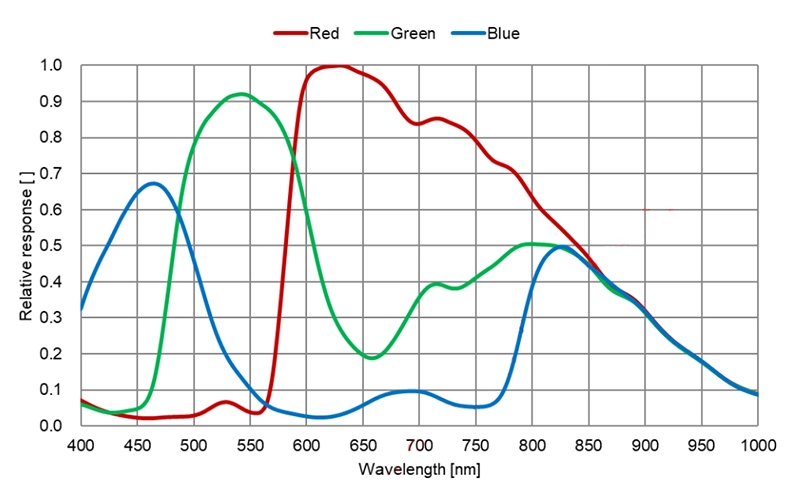

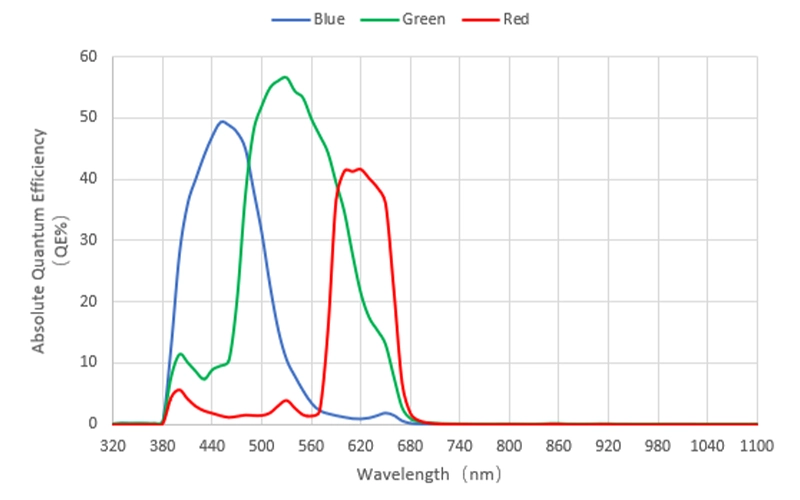

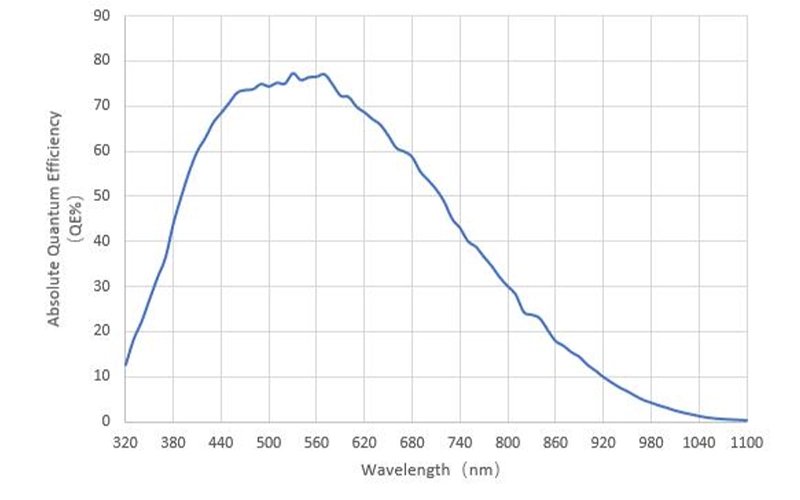

| Peak QE | 89%@610nm | 78%@575nm | TBD | 78%@575nm | TBD | |
| Sensitivity | 4910mV/(lux·s) | 8100mV/(lux·s) | 2058mV/(lux·s) | 3354mV/(lux·s) | 1146mV/(lux·s) | 1830mV/(lux·s) |
| Dark Current | 0.3mV | 0.15mV | ||||
| Exposure time range | 6µs-15s | 30µs-15s | ||||
| Shutter Mode | Global Shutter | |||||
| Binning Mode | Software 2×2, 3×3, 4×4 | |||||
| Optical Interface | C mount | |||||
| Power Consumption | 2.5W | 2.75W | 2.8W | 2.25W | ||

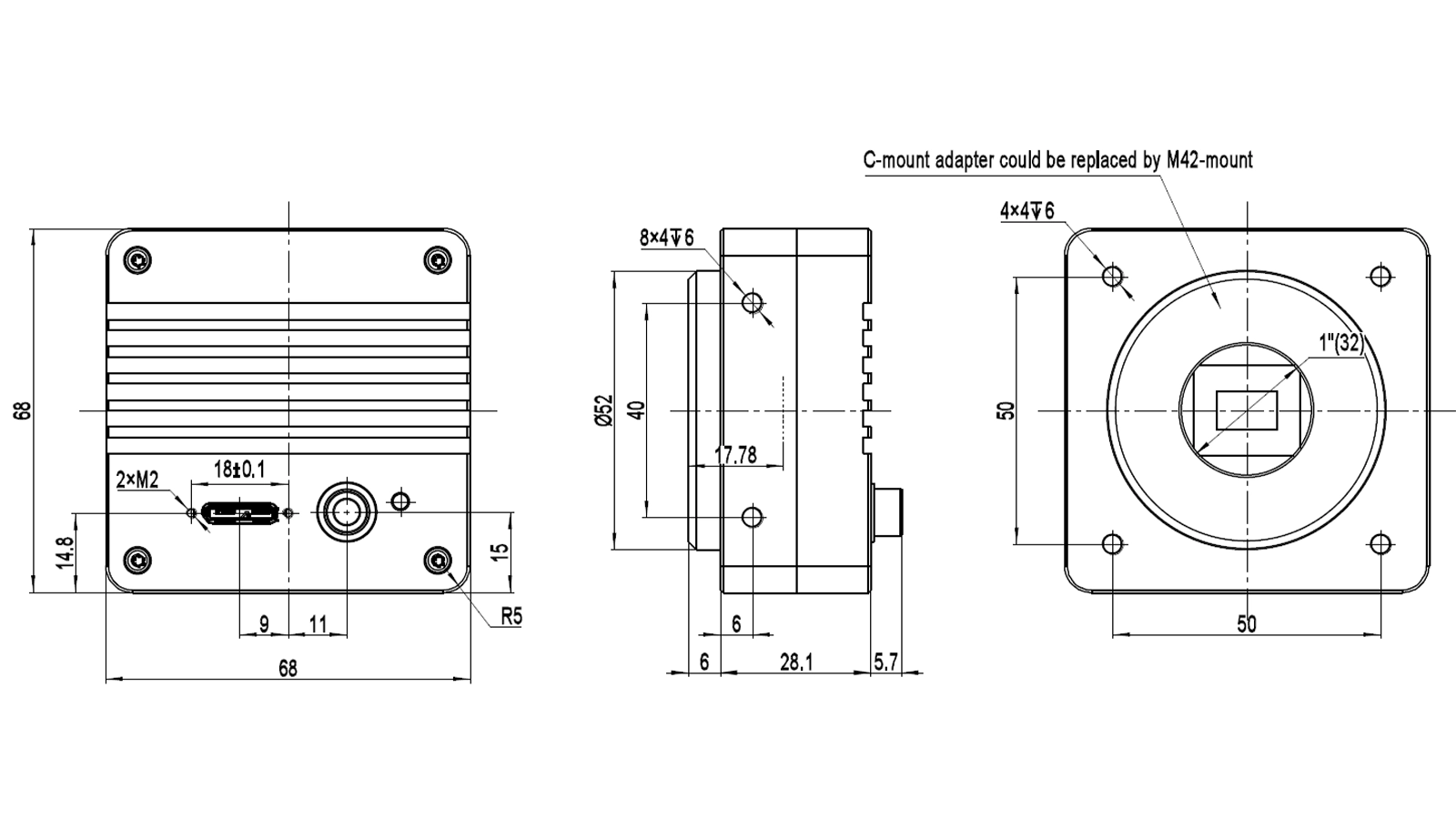

| Size | 68mmx68mmx28.1mm | |||||
| Weight | 228g | 227g | ||||
| Model | VIS035CU-NC | VIS035MU-NC | VIS0220CU-NC | VIS0220MU-NC | VIS0326CU-NC | VIS0326MU-NC |
| Sensor Model | Sony IMX264LQR | Sony IMX264LLR | Sony IMX541-AAQJ-C | Sony IMX541-AAMJ-C | Sony IMX571BQR-C | Sony IMX571BLR-J |

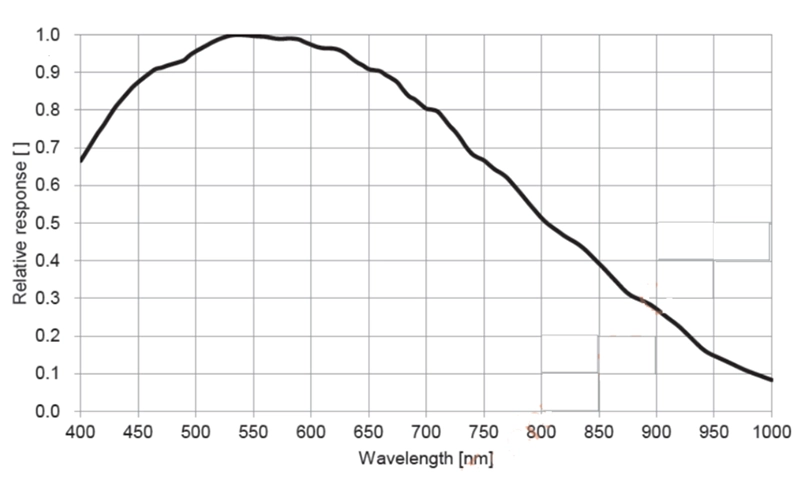

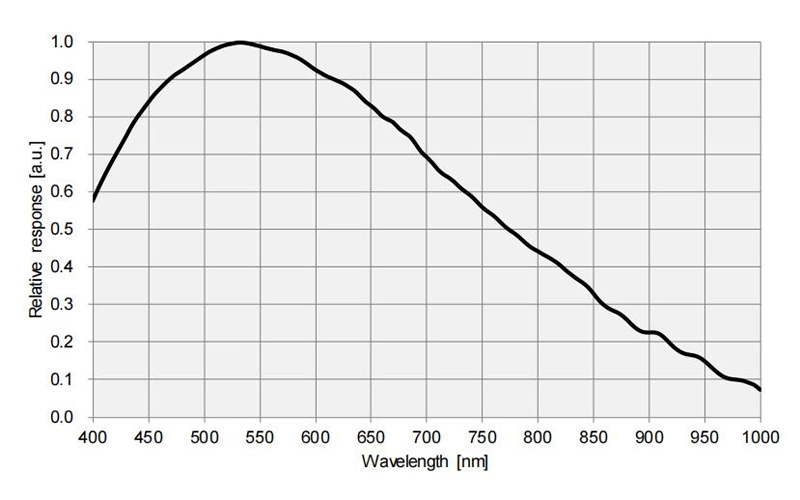

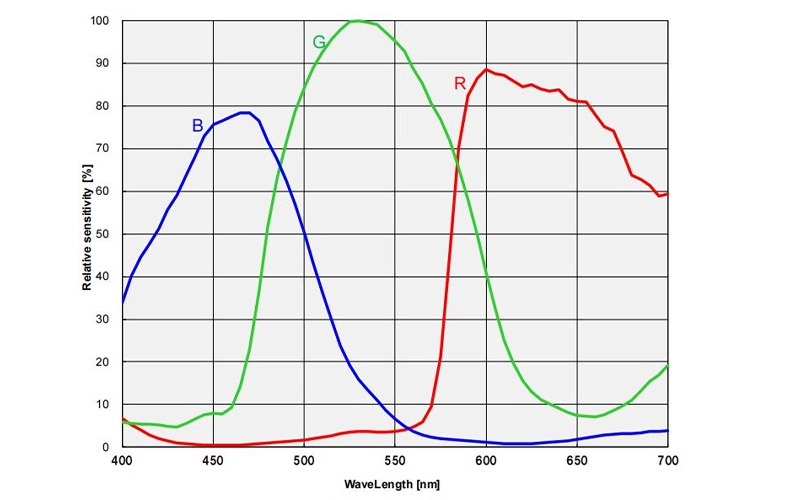

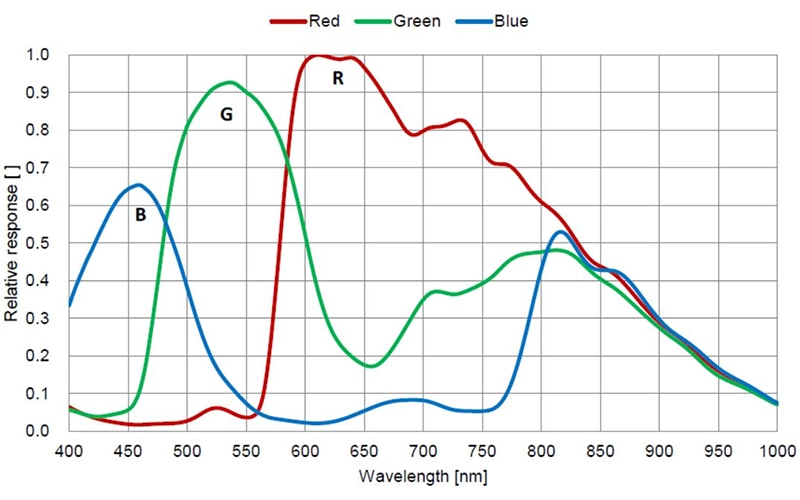

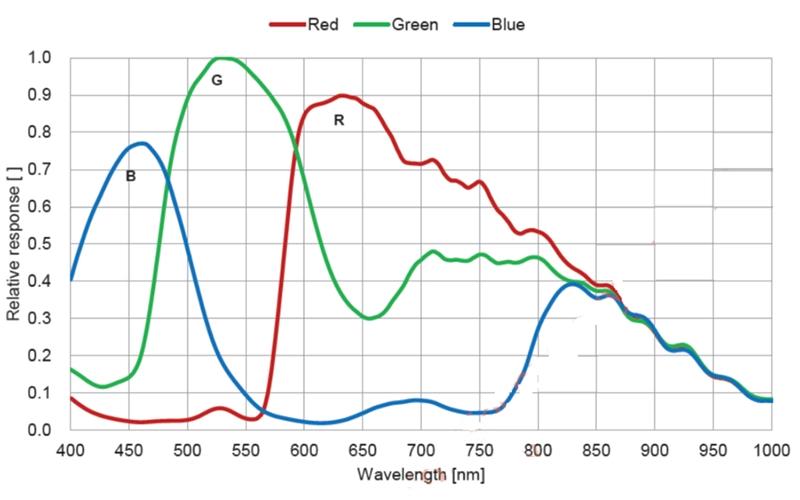

| Spectral Range | 400nm-1000nm | 400nm-700nm | ||||
| Pixel Size | 3.45 µm x 3.45 µm | 2.74 µm x2.74 µm | 3.76 µm x 3.76 µm | |||
| Sensor Size | 2/3″ | 2/3″ | 1.1″ | 1.1″ | 1.8″(APS-C) | |
| Color Type | Color | Monochrome | Color | Monochrome | Color | Monochrome |
| Frame rate & resolution | 35.6fps@2448 × 2048 87.6fps@1224 × 1024 |
17.5fps@4496 × 4496 64.4fps@2240 × 2240 64.4fps@1120 × 1120 |
14fps@6224 x 4168(16bit) 37fps@3104 x 2084 110fps@2064 x 1388 |
|||
| Conversion Gain | 2.68 (e⁻/ADU) | 2.71 (e⁻/ADU) | 2.44 (e⁻/ADU) | 2.35 (e⁻/ADU) | 0.26e⁻(HCG) 0.78e⁻(LCG) | |
| Readout Noise | 2.11 (e⁻) | 2.12 (e⁻) | 2.22 (e⁻) | 2.19 (e⁻) | 1.03e⁻(HCG) 2.4e⁻(LCG) | |
| Full Well | 11.0 (ke⁻) | 11.1 (ke⁻) | 10.0 (ke⁻) | 9.6 (ke⁻) | 17022.88e⁻(HCG) 51129.19e⁻(LCG) | |
| Dynamic Range | 72dB | 84.42dB (HCG) 86.58dB (LCG) | ||||
| SNRmax | 40.4dB | 40.5dB | 40.0dB | 42.31dB(HCG) 47.09dB(LCG) | ||

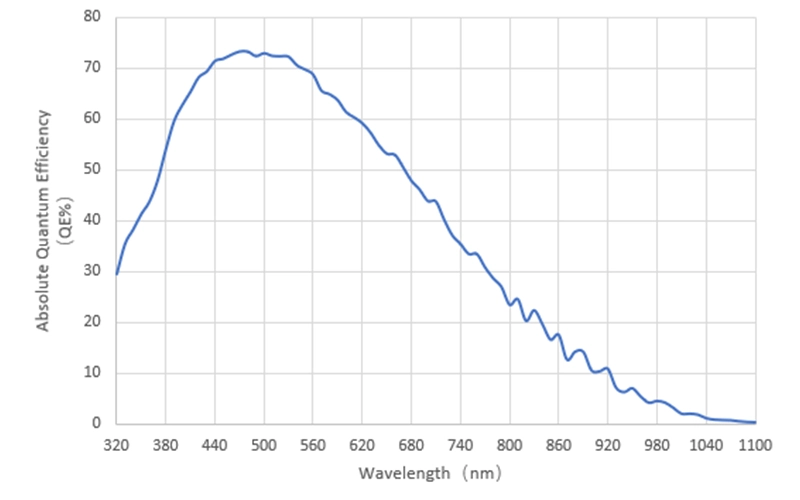

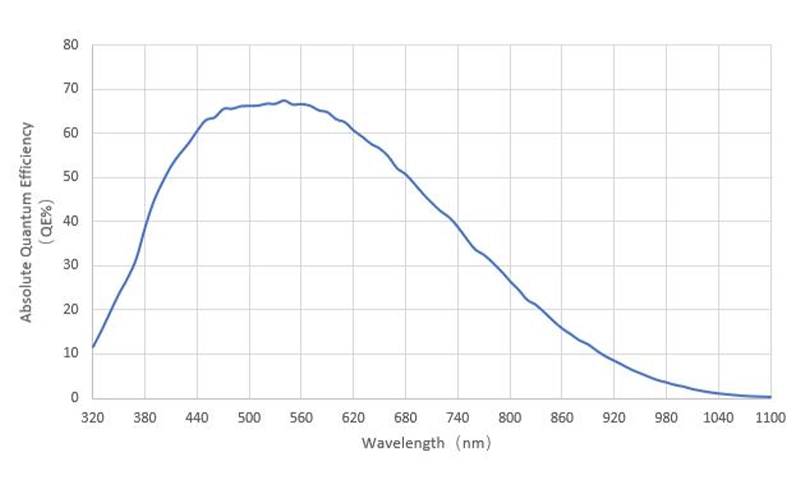

| Peak QE | TBD | 71%@575nm | TBD | 86%@520nm | TBD | TBD |
| Sensivity | 1146mV/(lux·s) | 1830mV/(lux·s) | 1574mV/(lux·s) | 2649mV/(lux·s) | 484.5 mV/(lux·s) | 870.9 mV/(lux·s) |
| Dark Current | 0.15mV | 0.07 mV | ||||
| Exposure time range | 15µs-15s | 30µs-15s | 150µs-15s | |||
| Shutter Mode | Global Shutter | Roller shutter | ||||
| Binning Mode | Hardware2×2; Software2×2, 3×3, 4×4 | Hardware 2×2，3×3；Software 2×2，3×3，4×4 | ||||

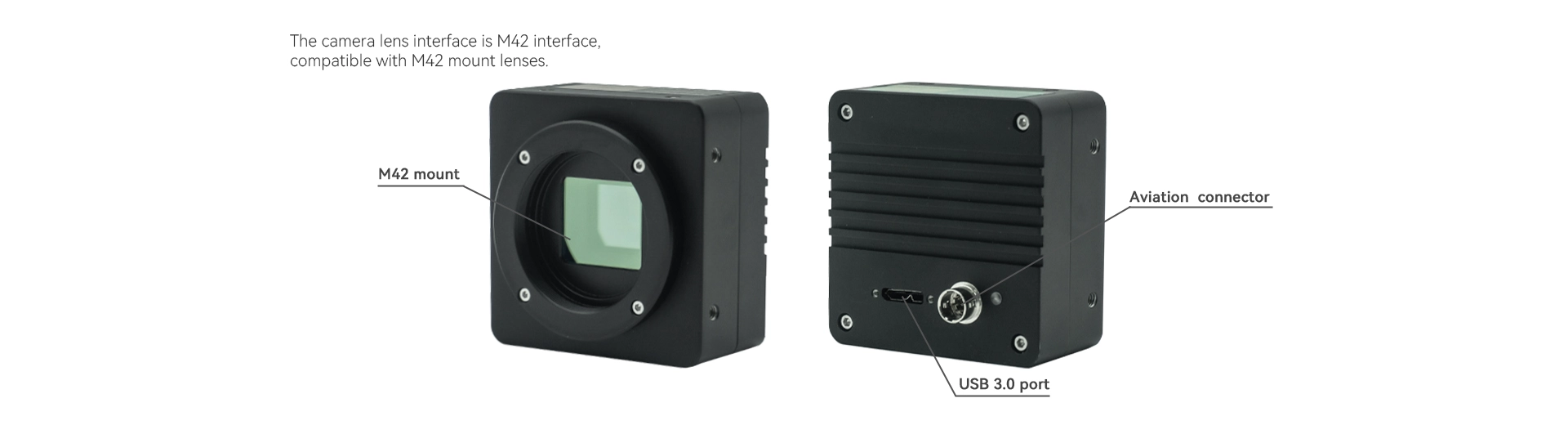

| Optical Interface | C mount | M42 | ||||
| Power Consumption | 2.05W | 2.05W | 2.6W | 4.15W | ||

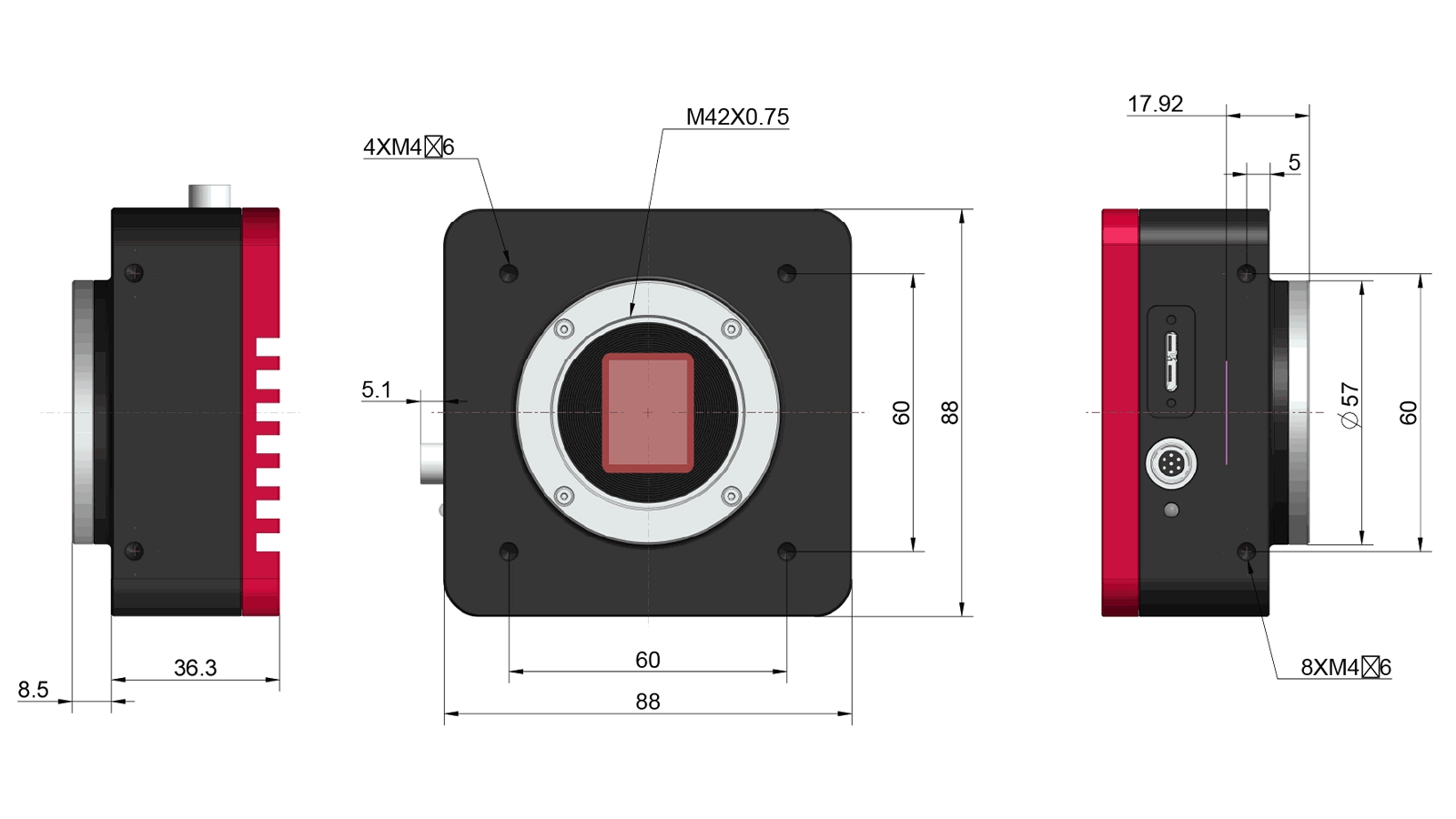

| Size | 68mmx68mmx28.1mm | 88mmx88mmx36.3mm | ||||
| Weight | 219g | 227g | 540g | |||
VIS035MU-NC
5MP Uncooled Monochrome CMOS Camera with 3.45µm Pixel, Global Shutter, 35fps
VIS0326CU-NC
26MP Uncooled Color CMOS Camera with 3.76µm Pixel, Global Shutter, 14fps
VIS0326MU-NC
26MP Uncooled Monochrome CMOS Camera with 3.76µm Pixel, Global Shutter, 14fps
VIS035CU-NC
5MP Uncooled Color CMOS Camera with 3.45µm Pixel, Global Shutter, 35fps
VIS0312CU-NC
12.3MP Uncooled Color CMOS Camera with 3.45µm Pixel, Global Shutter, 46fps
VIS0312MU-NC
12.3MP Uncooled Monochrome CMOS Camera with 3.45µm Pixel, Global Shutter, 46fps
VIS0220CU-NC
20MP Uncooled Color CMOS Camera with 2.74µm Pixel, Global Shutter, 17fps
VIS0220MU-NC
20MP Uncooled Monochrome CMOS Camera with 2.74µm Pixel, Global Shutter, 17fps
VIS091CU-NC
1.7MP Uncooled Color CMOS Camera with 9µm Pixel, Global Shutter, 98fps
VIS091MU-NC
1.7MP Monochrome Color CMOS Camera with 9µm Pixel, Global Shutter, 98fps
VIS047CU-NC
7MP Uncooled Color CMOS Camera with 4.5µm Pixel, Global Shutter, 51fps
VIS047MU-NC
7MP Uncooled Monochrome CMOS Camera with 4.5µm Pixel, Global Shutter, 51fps
Optional accessories – lenses
AttosView offers an optional YLGD series continuous zoom optical system for visible light cameras, designed specifically for high-precision imaging scenarios. The YLGD series continuous zoom optical system series provides multiple focal length options and is suitable for various professional applications such as security surveillance, industrial vision inspection, and scientific observation, ensuring excellent image clarity, operational flexibility, and environmental adaptability. For inquiries, please contact sales@attostek.com
