6.3MP-8.3MP, 400-1000nm CMOS Microscope Camera
| Features |
| 400-1000nm spectral range |
| 6.3 MP – 8.3 MP Resolution, |
| 2.4 µm or 2.9 µm pixel size depending on the model |
| Rolling Shutter design, supports color imaging |
| USB3.0 high-speed data transfer |
| 8/12-bit selection |
| Specific model sensitivity up to 5970mV/lx/s |
| CE/FCC Cerifcation，Multi-platform SDK |
The SDK supports development languages such as C/C++, C #/VB.net, Python, Java, etc,
Third-party support including LabVIEW, MATLAB, Micro-Manager, DirectShow, and TWAIN.
| Common Specifications | |
| Model | VIS028CU-NC, VIS026CU-NC |
| Sensor | Sony Exmor BSI CMOS |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Dynamic Range | 72dB |
| Bit Depth | 8/12-bit |
| Exposure time range | 0.02ms~15s |
| Binning | 2×2/3×3/4×4 |
| Data Interface | USB3.0 |

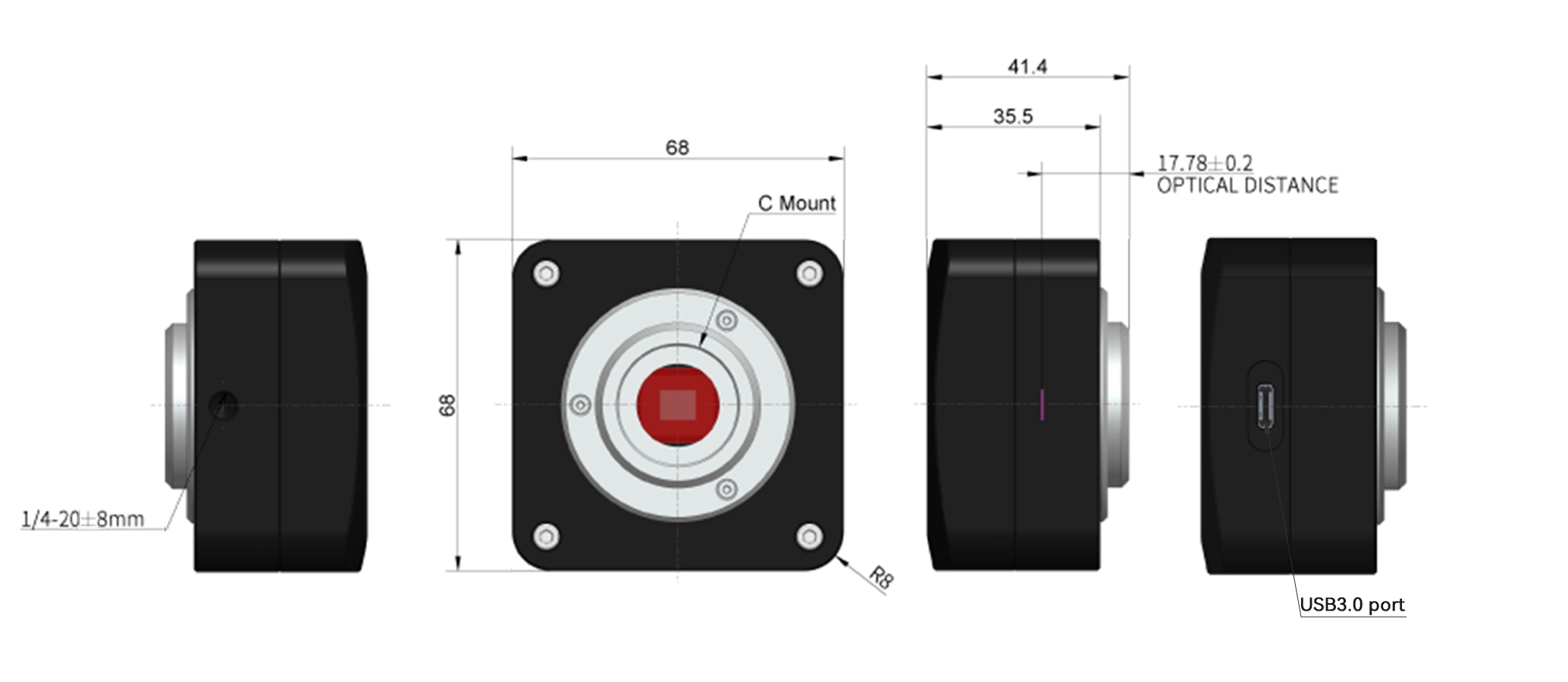

| Lens Mount | C-mount |
| Weight | 0.25kg |
| Power Supply | USB3.0 interface power (compatible with USB2.0) |
| Operating Temperature | -10 °C ~ +50 °C |
| Storage Temperature | -20 °C ~ +60 °C |
| Operating Humidity | 30%~80%RH |
| Storage Humidity | 10%~60%RH |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Software | AttosView / SDK |
| Certification | CE, FCC |
AttosView support all Attostek UV-VIS and SWIR cameras, it is a professional software that integrates camera control, image acquisition and processing, image browsing and analysis functions.
AttosView has the following characteristics:
- x86: XP SP3 and above; CPU support SSE2 and above
- x64: Win7 and above
ascamsdk support a variety of APIs, including: Native C/C++,.NET/C#/VB.NET, Python, Java, DirectShow, Twain, LabView, Matlab, etc. Compared with other APIs, Native C/C++ API as a low-level API is characterized by using pure C/C++ development without relying on other runtime libraries. The interface is simple and the control is flexible.
- x86: XP SP3 and above; the CPU needs to support at least the SSE2 instruction set.
- x64: Win7 and above.
- arm: Win10 and above.
- arm64: Win10 and above.
AttosTek provides extensive third-party software support for its UV-Vis cameras and SWIR cameras, facilitating rapid integration and use in various development environments. This includes SDK and demo programs for LabVIEW and MATLAB, as well as DirectShow drivers, Micromanager, and TWAIN SDK drivers. These features enable seamless compatibility with mainstream development environments and third-party software, greatly simplifying the workflow for system integration and secondary development.
Support all Attostek UV-VIS and SWIR cameras.
Click the button below to download the AttosView software.
|
AttosView Recommended System Requirements |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 /11(32 & 64 bit), Mac OSX, Linux |
|
Processor (CPU) |
≥3.0 GHz Intel Core i5 or Higher |
|
Memory (RAM) |
≥8 GB |
|
Hard Drive |
NVMe Solid State Drive (SSD) |
|
Graphics Card |
Dedicated Adapter with ≥256 MB RAM |
|
Motherboard |
USB 3.0 (-USB) Cameras: Integrated Intel USB 3.0 Controller or One Unused One Unused PCle3.0*16 Slot |
|
Connectivity |
Internet Connectivity for Driver Installation |
Q1 : For the VIS028CU-NC camera, how do you choose between HCG/LCG dual gain depending on the scenario?
HCG High Gain: Reduces readout noise, suitable for weak GFP/RFP fluorescence and low-reflective mineral samples.
LCG Low Gain: Ultra-large full well capacity, resists strong brightfield light and highly reflective wafers, preventing pixel saturation and loss of detail.
Q2 : 2.4 µm vs 2.9 µm pixel sizes: how to choose?
This series offers two pixel size options: 2.4 µm and 2.9 µm:
2.9 µm pixels (VIS028CU-NC): Bigger pixels, more light intake, higher sensitivity (5970 mV/(lux·s)). Great for low-light imaging, fluorescence imaging, and other scenarios where sensitivity is key.
2.4 µm pixels (VIS026CU-NC): Smaller pixels, higher resolution at the same sensor size, perfect for high-resolution detail imaging.

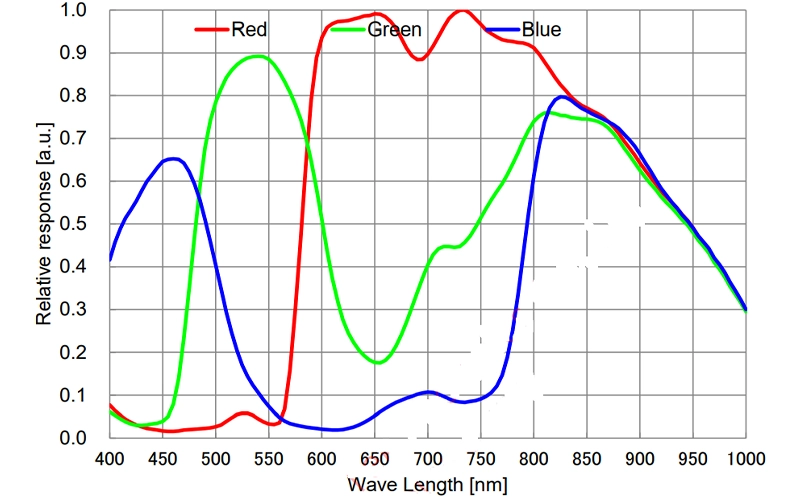

Both cameras cover a spectral range of 400–1000 nm, spanning from visible light to near-infrared.
Q3 : AttosView PC adapter system and microscope-specific features?
AttosView only supports Windows 7/10/11 64-bit systems; core features include 0.02ms~15s exposure adjustment, gain switching, hardware/software binning, ROI cropping, multiple flat/dark field corrections, scale measurement, profile gray curve, TIFF/Raw batch saving, and online firmware upgrades.
16 MP 9 μm Pixel sCMOS High-Resolution Camera
| Model | VIS028CU-NC | VIS026CU-NC |
| Sensor model | Sony IMX585 | Sony IMX178 |

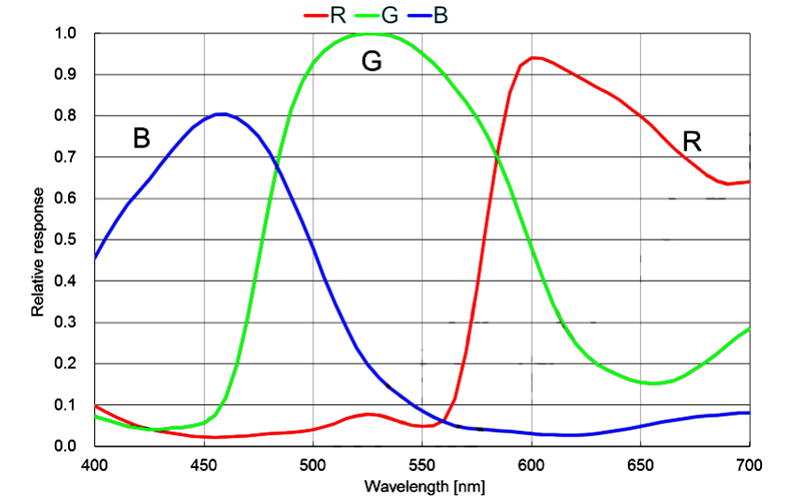

| Spectral Range | 400nm-1000nm | 480nm-700nm |
| Resolution | 8.3MP | 6.3MP |
| Pixel Size | 2.9 µm × 2.9 µm | 2.4 µm × 2.4 µm |
| Sensor Size | 1/1.2″ (12.78 mm) | 1/1.8″ (8.86 mm) |
| Frame Rate&Resolution | 45 fps@3840×2160; 60 fps@1920×1080 | 59 fps@3072×2048; 59 fps@1536×1024 |
| Sensitivity | 5970 (mV/lux/s); 0.13 mV with 1/30s | 425 mV with 1/30s; 0.15 mV with 1/30s |
| SNRmax | 36.2 / LCG: 45.8 (dB) | 40.3dB |
| Dark current | 0.13mV | 0.15mV |
VIS028CU-NC
8.3MP Color CMOS Camera with 2.9µm Pixel, USB 3.0 Interface, 45fps

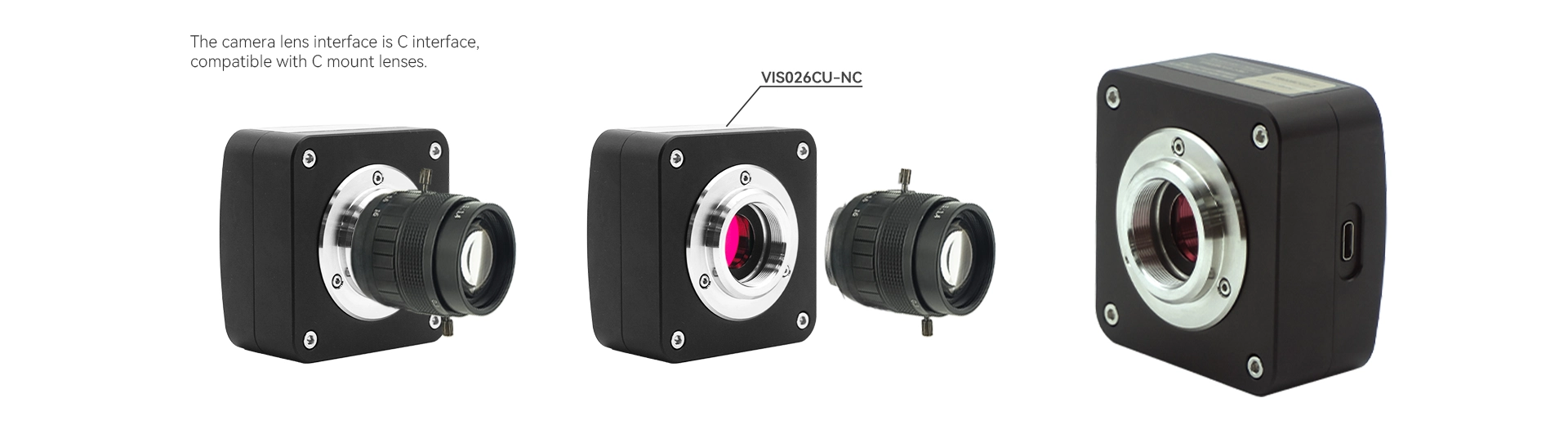

VIS026CU-NC
6.3MP Color CMOS Camera with 2.4µm Pixel, USB 3.0 Interface, 59fps
Optional accessories – lenses
AttosView offers an optional YLGD series continuous zoom optical system for visible light cameras, designed specifically for high-precision imaging scenarios. The YLGD series continuous zoom optical system series provides multiple focal length options and is suitable for various professional applications such as security surveillance, industrial vision inspection, and scientific observation, ensuring excellent image clarity, operational flexibility, and environmental adaptability. For inquiries, please contact sales@attostek.com
