I. Product Introduction
The SWIR051AU from Beijing AttosTek Co., Ltd. is a short-wave infrared (SWIR) camera with high sensitivity, high frame rate, and excellent stability. It is equipped with a Sony IMX990 sensor, featuring 1.3 MP resolution, 5 μm pixel size, and 400–1700 nm spectral response. The built-in TEC cooling system provides a 30°C temperature differential, and the USB3.0 data interface achieves a full-resolution frame rate of up to 200 fps, with a dynamic range of 58.7 dB. It is suitable for application scenarios with stringent requirements for real-time performance and detail layering, making it an ideal choice for industrial inspection, scientific measurement, and high-end vision applications such as laser imaging, spectral analysis, haze penetration, and smoke and dust environments.

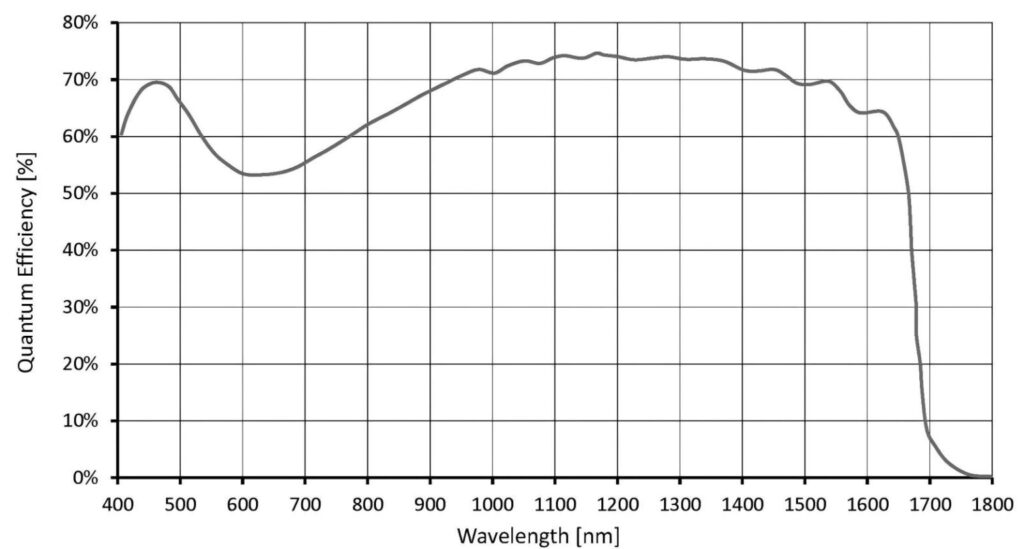

II. Quantum Efficiency Curve
III. Filter Window Transmittance Curve
IV. Camera Specifications
| Parameter | Specification |
|---|---|
| Model | SWIR051AU |
| Sensor Type | Sony IMX990 InGaAs |
| Spectral Range | 400 nm – 1700 nm |
| Pixel Size | 5.0 μm × 5.0 μm |
| Sensor Format | 1/2″ |
| Frame Rate & Resolution | 8 Bit: 200 fps @ 1280 × 1024, 392 fps @ 640 × 512 12 Bit: 108 fps @ 1280 × 1024, 209 fps @ 640 × 512 |
| Hardware Image Buffer | 512 MByte |
| Conversion Gain | 44.3 e⁻/ADU |
| Dynamic Range | 58.7 dB |
| Readout Noise | 211 e⁻ |
| Full Well Capacity | 181.6 ke⁻ |
| Maximum SNR | 52.6 dB |
| Sensitivity | 121 mV / lux·s |
| Dark Current | 383 e⁻/s (0°C), 510 e⁻/s (10°C), 638 e⁻/s (20°C) |
| Gain Range | 1× – 15× |
| Exposure Time Range | 15 μs – 60 s |
| Shutter Mode | Global shutter |
| Binning Modes | Software 2×2, 3×3, 4×4 |
| Data Interface | USB3.0 |
| Digital I/O | 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O ports |
| Data Format | 8 bit / 12 bit |
| Cooling Temperature | –10°C (at 20°C ambient temperature) |
| Optical Interface | C-mount |
| Optical Window | 400–1800 nm (standard LPF390H); 1030–1800 nm (optional LPF1000H) |
| CRA | 2.35° |
| Power Supply | USB3.0 interface power supply / 12V 3A power adapter supply |
| Power Consumption | <25 W (with cooling) |
| Dimensions | 80 mm × 80 mm × 45.5 mm |
| Weight | <390 g |
| Software | AttosView / Complete SDK development package |
| Operating System | Win32 / WinRT / Linux / macOS / Android |
| Temperature | Operating: –20 to 60°C; Storage: –40 to 85°C |
| Humidity | Operating: 20%–80%, non-condensing; Storage: 20%–80%, non-condensing |
| Certifications | CE, FCC |
V. Dimensions
VI. Package Contents
| No. | Standard Item Name | Specification | Quantity |
|---|---|---|---|
| 1 | SWIR Camera | SWIR051AU | 1 |
| 2 | USB3.0 Data Cable | 1.5 m A-male to B-male gold-plated data cable | 1 |
| 3 | External Trigger Cable | 2 m 7-pin female trigger cable | 1 |
| 4 | Power Cord | Standard China power cord | 1 |
| 5 | Power Adapter | Input AC 100–240V 50/60Hz, output DC 12V 3A power adapter | 1 |
| 6 | USB Flash Drive | Contains application software, drivers, and user manual | 1 |
VII. Application Cases
SWIR cameras are widely used in many fields, including industrial inspection, machine vision, material sorting, food inspection, scientific research, medical diagnosis, security surveillance, process control, and transportation. They perform particularly well in material analysis, moisture detection, penetrating haze/smoke, and nighttime monitoring.
